398 U41117-J-Z125-7-76
FC-SCSI host adapter XTCC
8.11 FC-SCSI host adapter
8.11.1 Object information on FC-SCSI host adapters
Each host adapter is represented by a block at the top of the ICP. Within the block, the host
adapter number (HA #0, HA #1, etc.) and type (ESCON, FICON, FC) are displayed. The
status of the host adapter is indicated by the colors pink (not active), green (active) and
yellow (unknown).

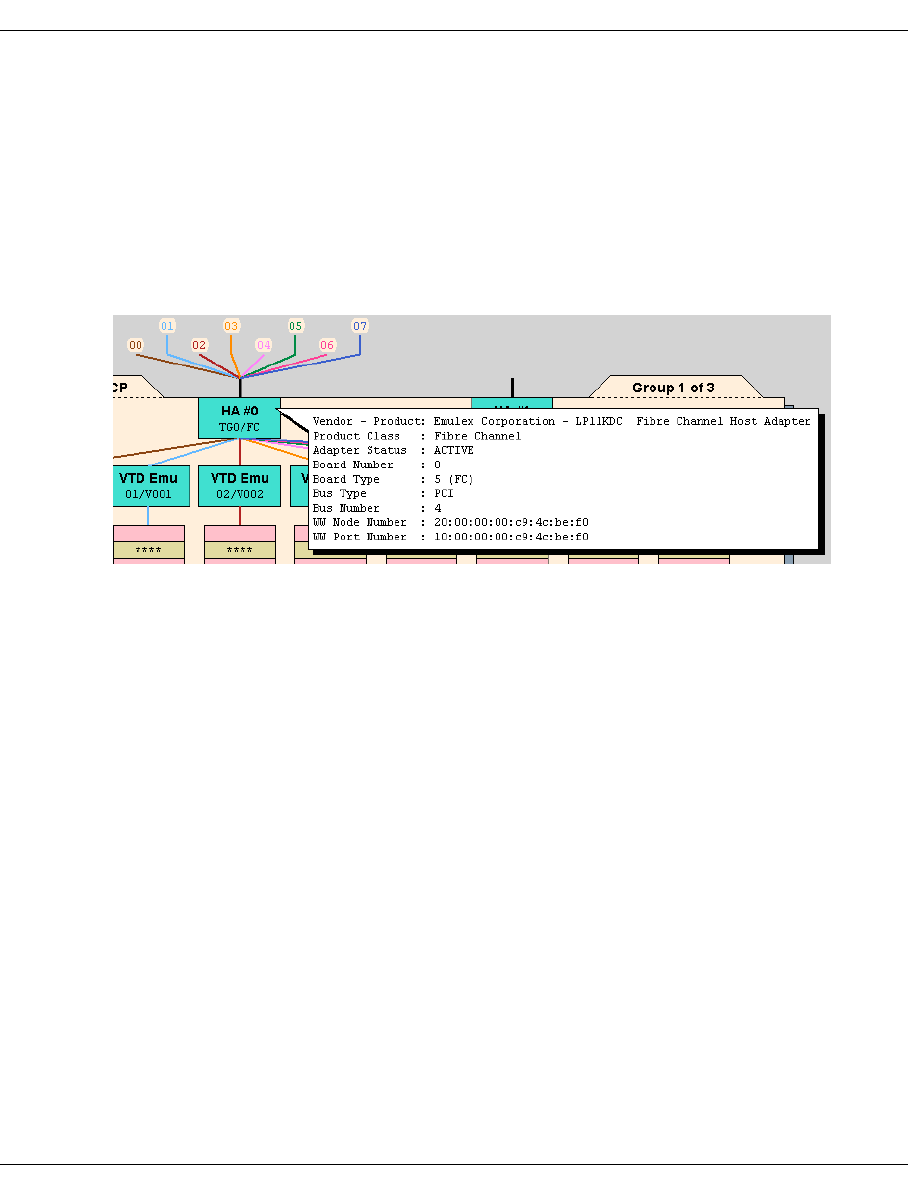

In the host adapter symbol, the serial number of the host adapter in the ICP appears in the
top line (here: HA #0) and the name and the interface type appear in the second line (here:
TG0/FC).
The following information is also displayed in the information box:
Vendor - Product Vendor and product name
Product Class Product class
Adapter Status Operational status.
Board No., Type Number and type of the host adapter.
Bus Type, Number Type and number of the internal bus to which the FC host adapter
is connected.
Device Number Internal ICP device number.
WW Node Number World Wide Node ID (WWNN).
WW Port Number World Wide Port ID (WWPN)
You need WWNN and WWPN to reconcile the configuration in the
host system.
Connecting lines to the hosts:
The connecting lines from the host adapter that go over the top of the screen show the host
devices connected.
The circle at the top of the line contains the LUN (Logical Unit) of the device. If the line is
continuous, the connection is active; host adapter and emulation are ready.
