Configuration and Use Manual 75
Using the Filling and Dosing Application
Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter Optional Configuration Using the FillerFiller ConfigurationUsing the Transmitter

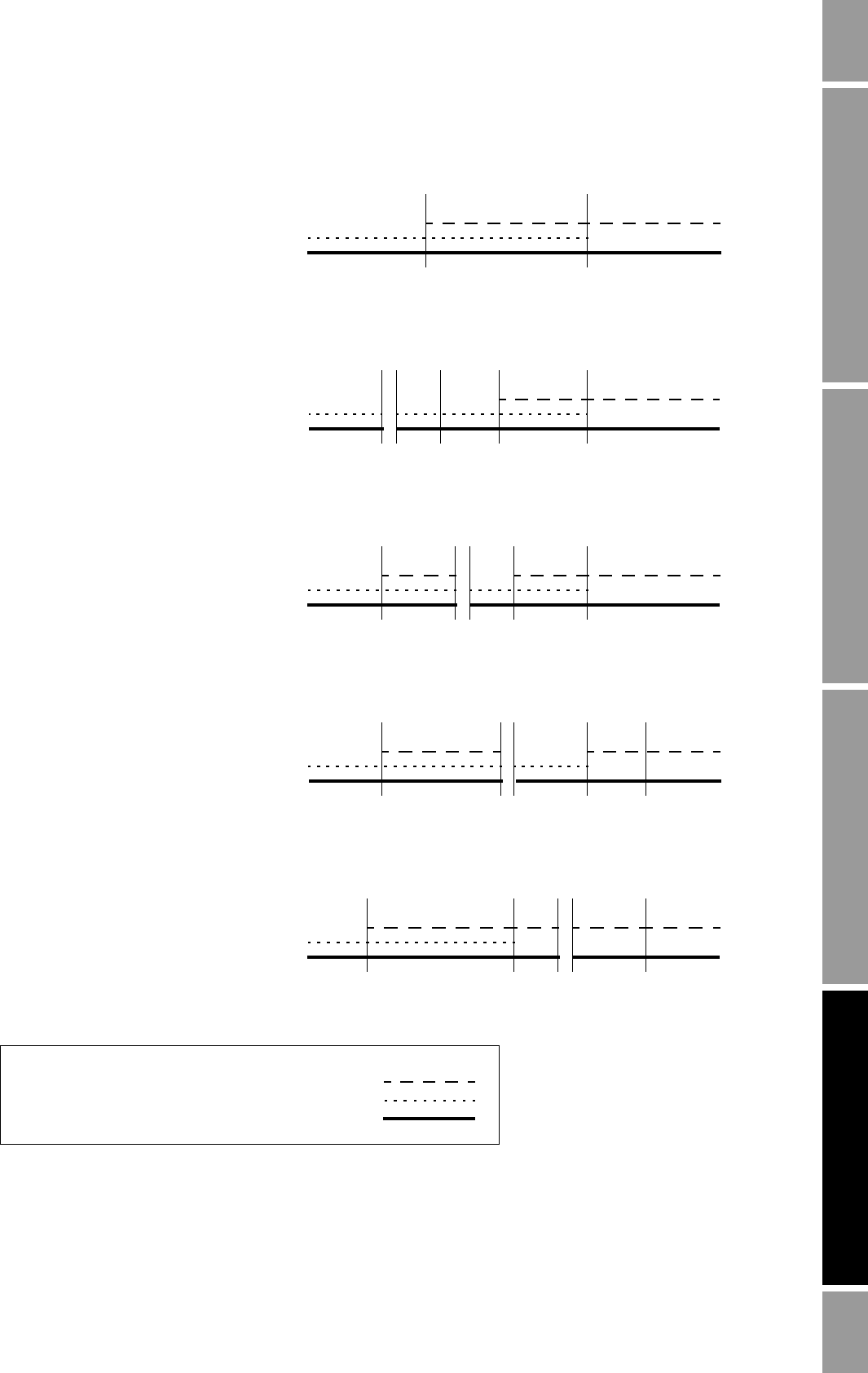

Figure 8-6 Fill sequences: Two-stage discrete fill, Open Secondary at 0%, Close Secondary First
0% m% 100%
Normal operation
n%
0% m% 100%
x% before Primary Open
n%x% m+x%
0% m% 100%
x% after Primary Open, when
m+x% < n%
n%x% m+x%
0% m% 100%
x% after Primary Open, when
m+x% > n%
n%x% m+x%
0% m%
x% after Secondary Close
n% x% 100%m+x%
Configured values
• Open Secondary: 0%
• Open Primary: m%
• Close Secondary: n%
Legend
•Primary valve
• Secondary valve
•Flow
Valve behavior with PAUSE/RESUME at x%
