Connecting with ProLink II Software
Using ProLink II Required ConfigurationFlowmeter StartupBefore You Begin

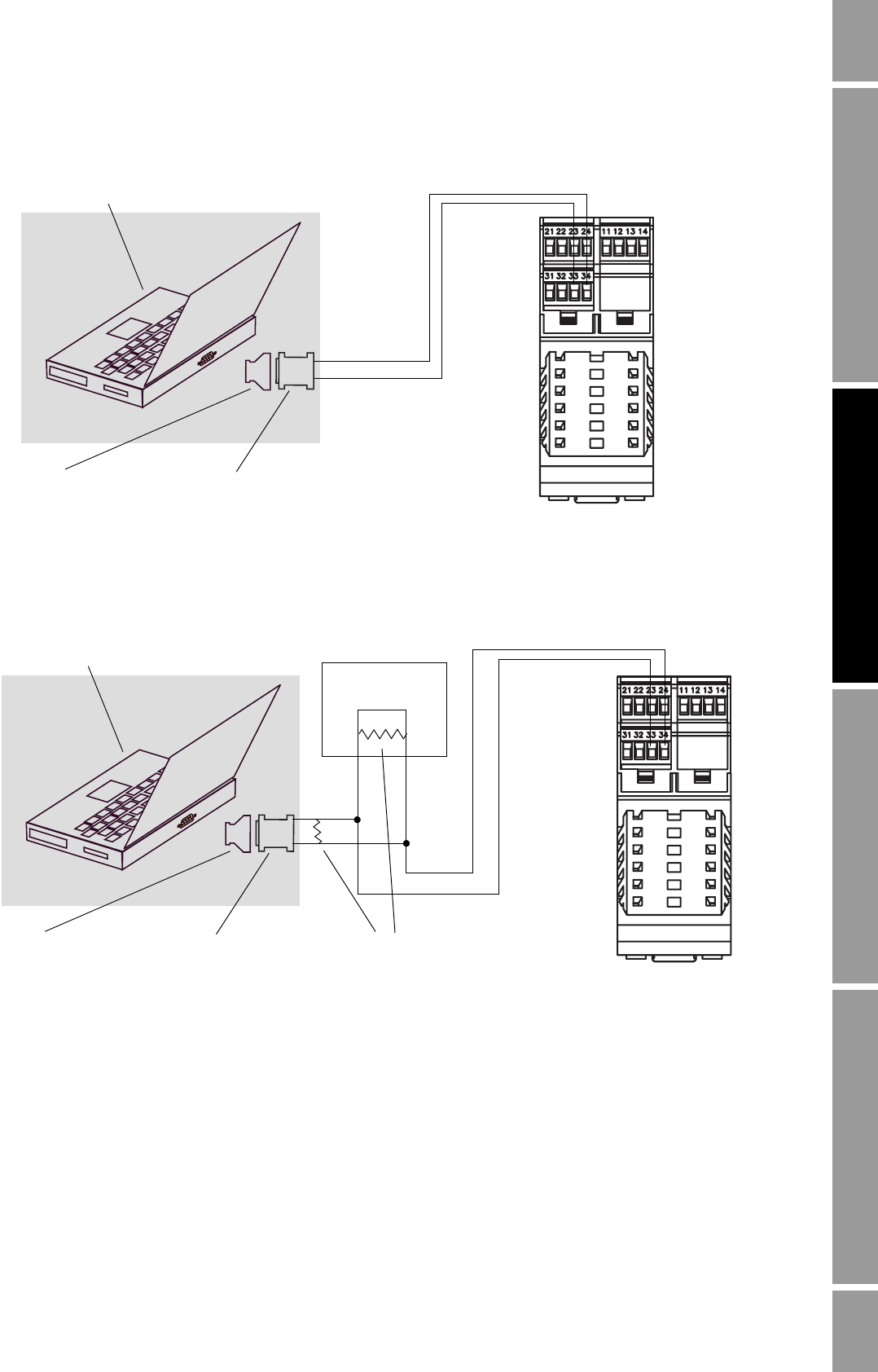

Figure 2-1 RS-485 terminal connections to Model 1500
Figure 2-2 RS-485 network connections to Model 1500
6. Start ProLink II software. From the
Connection menu, click on Connect to Device. In the
screen that appears, specify connection parameters appropriate to your connection:
• For service port mode, set
Protocol to Service Port, and set COM port to the appropriate
value for your PC.
Baud rate, Stop bits, and Parity are set to standard values and cannot
be changed. See Table 2-1.
• For RS-485 mode, set the connection parameters to the values configured in your
transmitter. See Table 2-1.
RS-485/B
RS-485/A
RS-485 to RS-232
signal converter
25-pin to 9-pin serial port
adapter (if necessary)
PC
DCS or PLC
Add resistance if necessary
(see Step 4)
RS-485 to RS-232
signal converter
25-pin to 9-pin serial port
adapter (if necessary)
PC
RS-485/B
RS-485/A
