8. Communicator touch panel
8.3 Reposition the touch panel interface
How to reposition the touch panel interface?
1. Hold fast the touch panel interface.
2. Release the central swiv el clamp by turning the big black knob (K) counterclockwise.
K

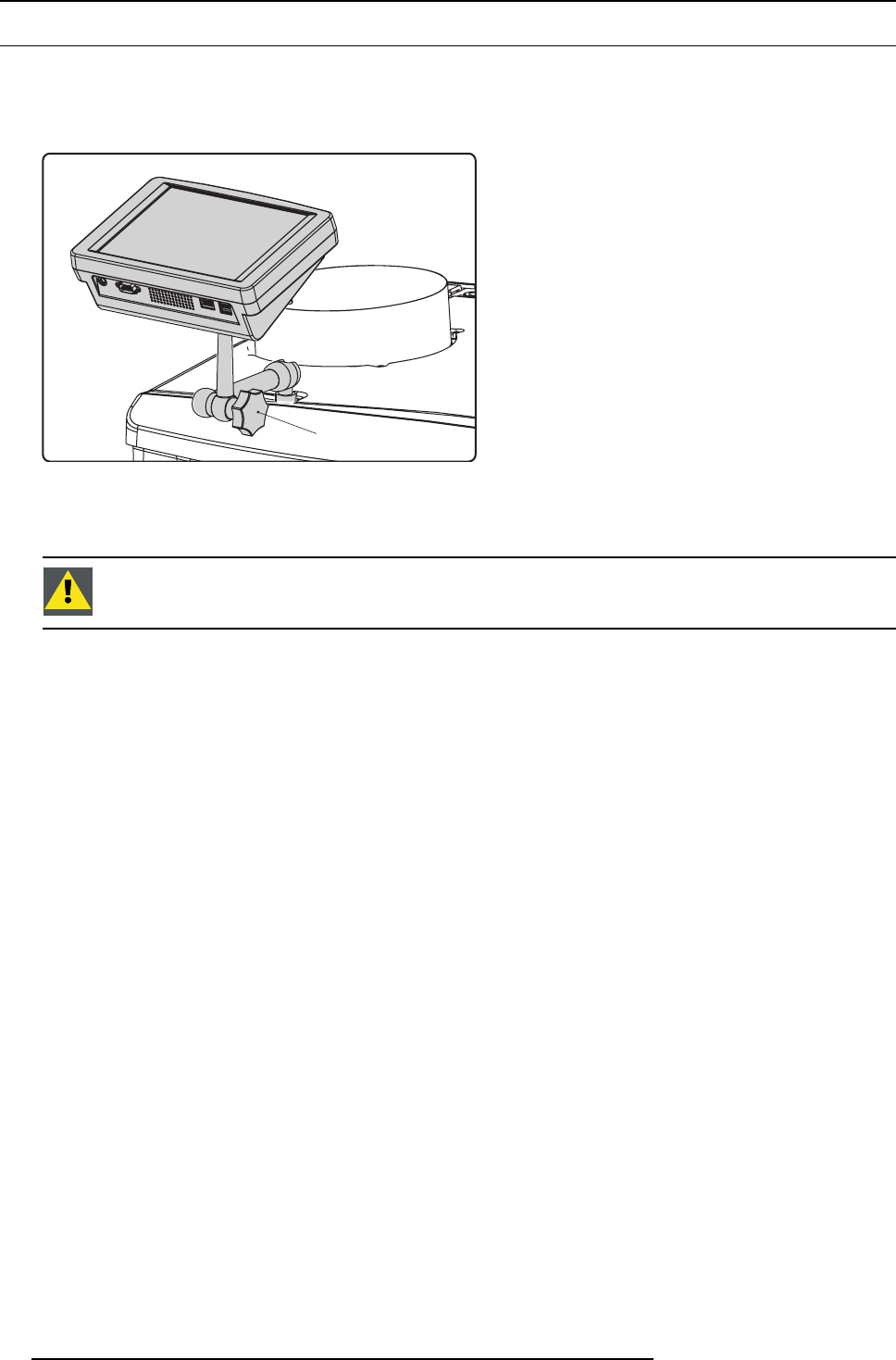

Image 8-8
3. Move the touch panel interface into the desired position.
4. Fasten the central swivel clamp by turning the big black knob clockwise.
CAUTION: Never release the central swivel lock without supporting the touch panel interface.
