13. Removal and installation of projector covers
13.10 Installation of the rear cover
Necessary tools
7mmflat screwdriver.

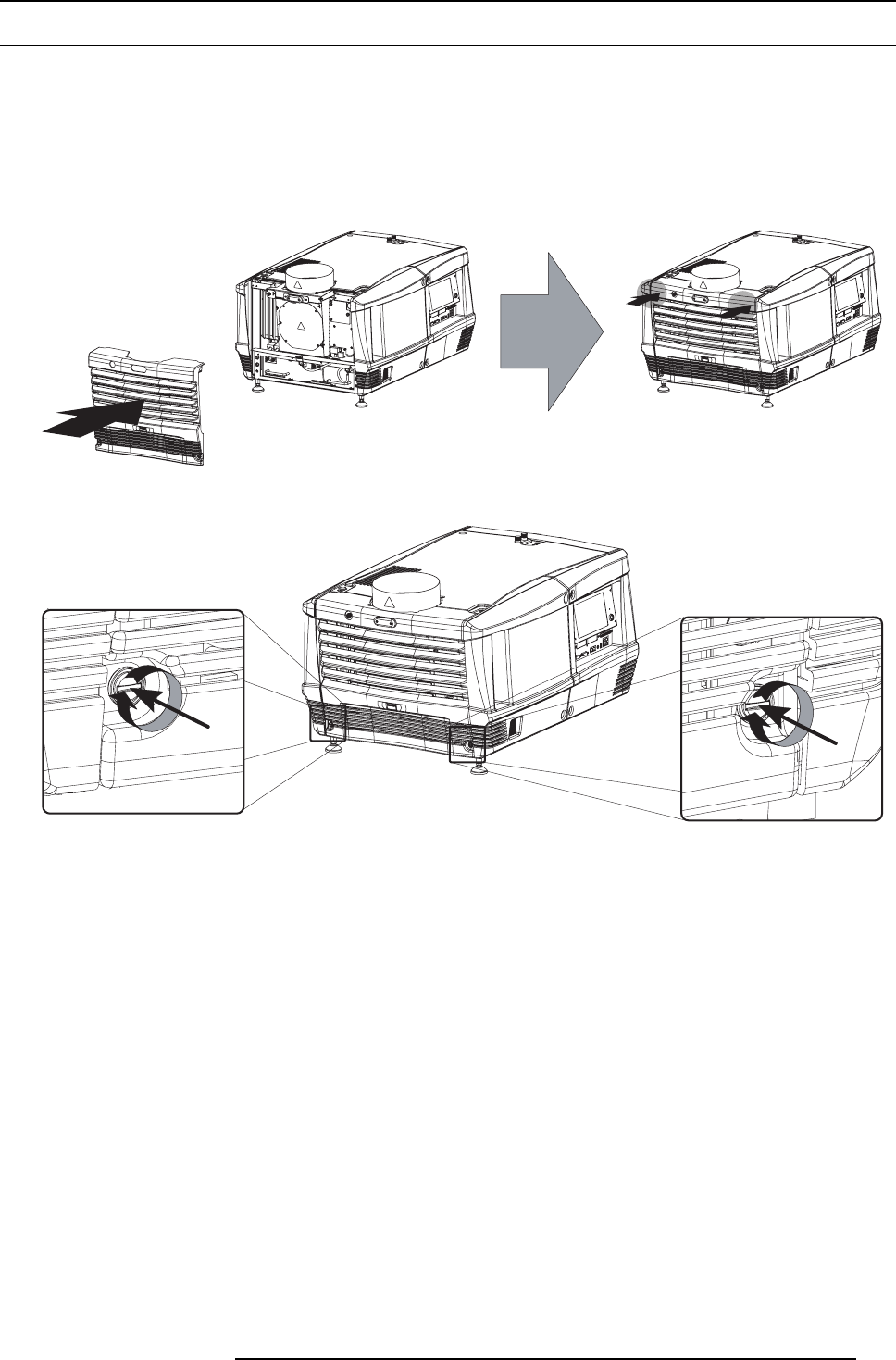

How to install the rear cover of the projector?
1. Install the rear co ver of the projector doing the following:
a) B ring the rear cover towards it final position,
b) then gently push the locking studs of the top corners into their receivers
B
B
A
Image 13-19
2. Secure the rear cover by locking the ca ptive sc rews at the bottom corners of the rear cover.
Image 13-20
R59770091 DP-1500 06/01/2009 133
