12. Servicing

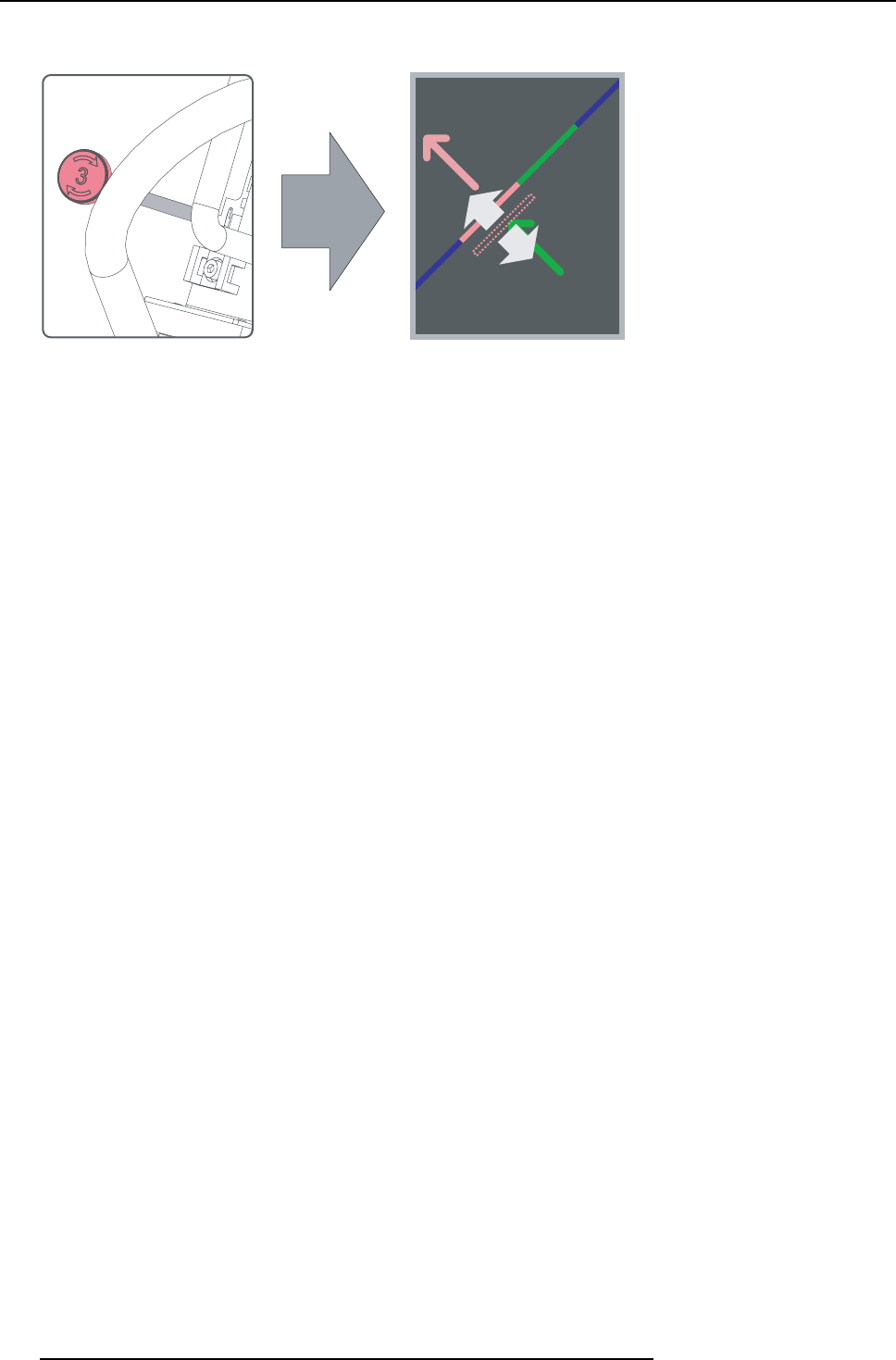

4. Slightly turn the red c olored control knob num ber 3 until the red pattern in the upper right of the pr ojected image converges with
the blue pattern.
3
6
Image 12-12
5. Repeat step 3 and 4 until coincidence is obtained of the red pattern in the lower left and upper right of the projected image.
6. Repeat from step 2 until full coincidence is obtained of the red pattern in the center, lower left and upper right of the projected
image.
7. Carefully secure the position of the DMD assembly by tightening the four convergence lock s crews (reference 7 of image 12-9)
of the red channe l. Fa sten the screws c rosswise with small adjus
tments to each screw. Use a 2 ,5 mm Allen wrench.
108
R59770091 DP-1500 06/01/2009
