EDID Minder Page
Extron EDID Minder is an EDID management process that automatically manages the
EDID information between a digital display device and one or more input sources.
Click on this button
to open the EDID Minder page.
From this page an EDID data set can be assigned to any input with an Auto‑Detect, an
RGB, or an HDMI/DVI input type. The currently assigned EDID properties can be viewed
and EDID files can be loaded to and from the DVS 605.

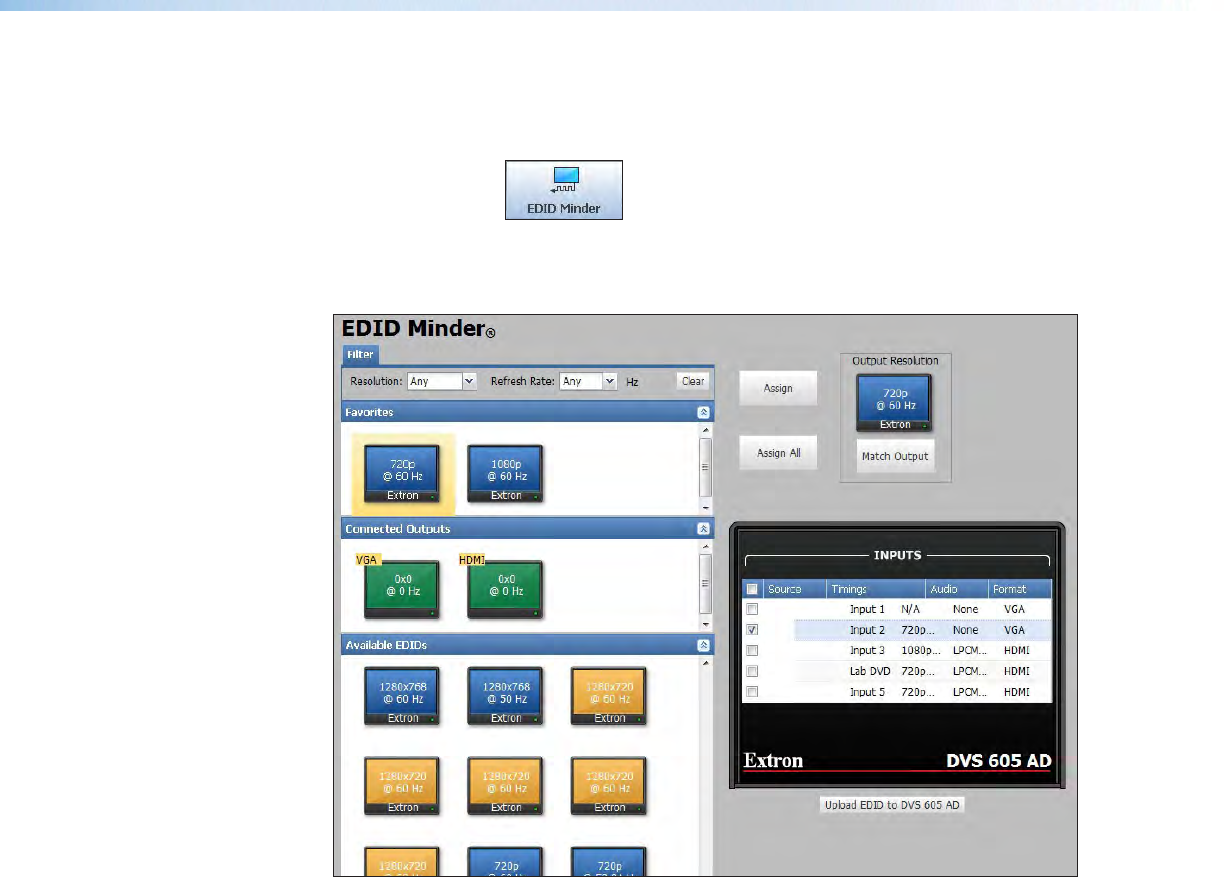

Figure 36. EDID Minder Page
The EDID Minder screen displays a table of EDID settings and connected output devices,
grouped as favorites, connected outputs, and available EDIDs. These are visually shown
as colored output display icons: factory default EDIDs are blue, connected output devices
are green, and custom loaded or saved EDIDs are yellow (see figure above).
The EDID properties currently assigned to each input are displayed in the table of inputs.
Audio and video formats for each input are also displayed. The audio input format listed in
an input’s EDID is determined by the Audio Input Format on the Audio Configuration page.
Video input format is configured on the Input/Output Configuration page.
