8. Random Access Adjustment Mode
Image 8-20
Vertical linearity
8.6.8 Blanking Adjustments
What can be done?
Blanking adjustments affect only the edg es of the projected image and are used to frame the projected image on to the screen and
to hide or black out unwanted information.
The following blanking adjustments are available:
• Top.
• Bottom.
• Left.
• Right.

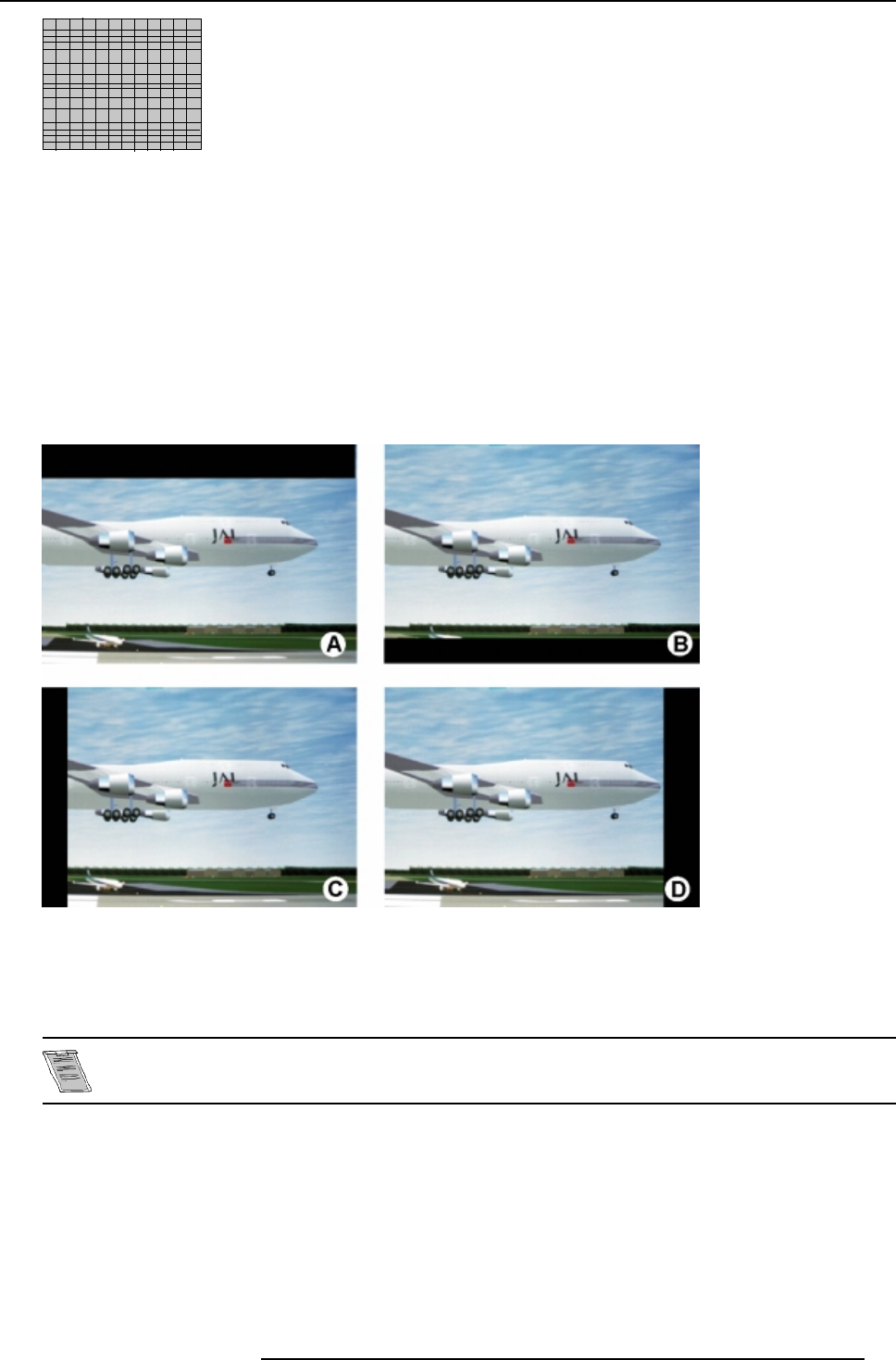

Image 8-21
Blanking
A Top B lanking
B Bottom Blanking
C Left Blanking
D Right Blanking
If the internal # pattern was selected, this pattern remain s on the screen.
If the genlocked pattern was selected, t he external so urce will be displayed.
