3. Source Connections
Image 3-11

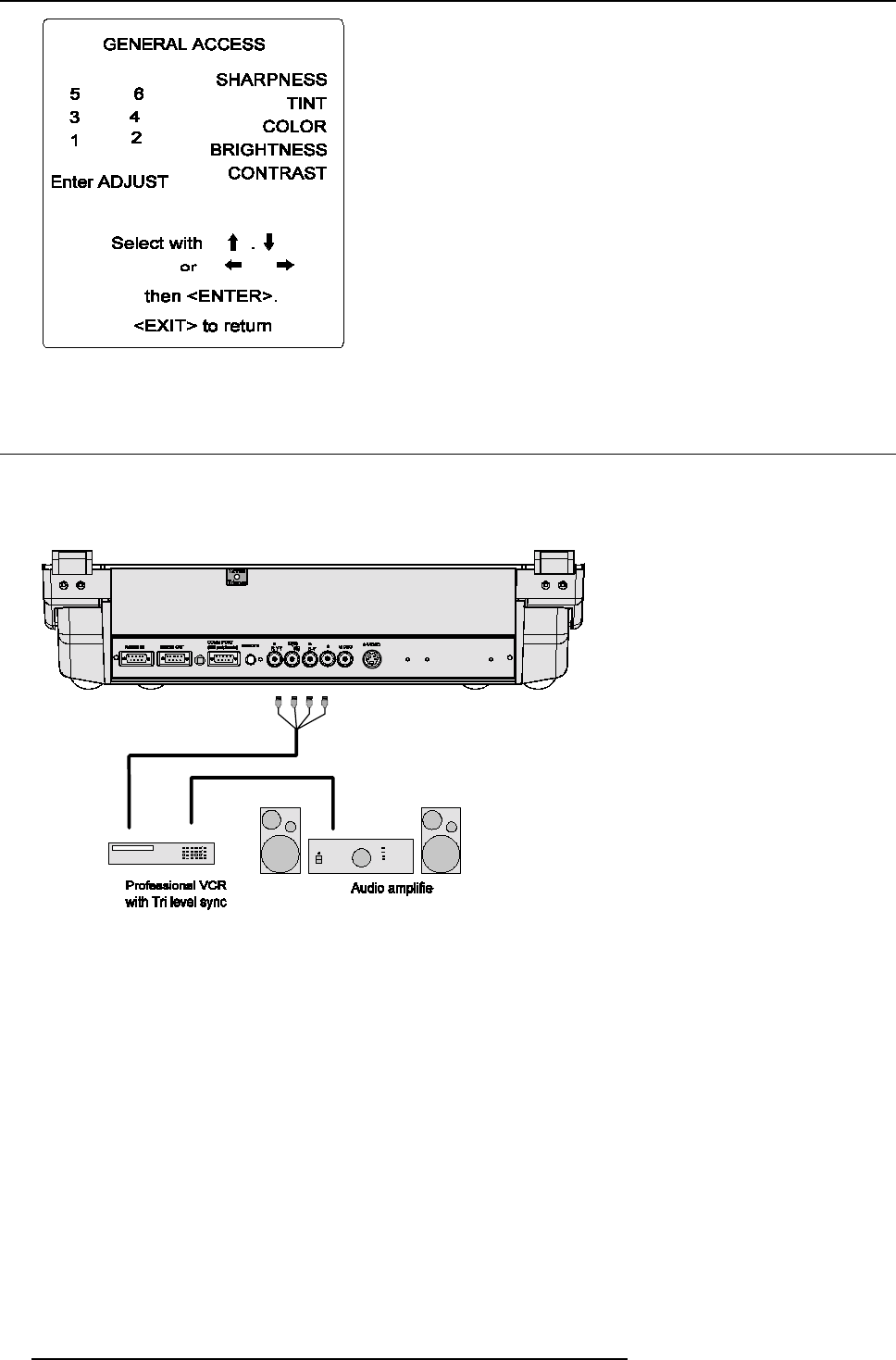

3.7 Connecting a Component source with Tri level composite sync
Which signal can be connected to the input?
(R-Y)Y(B-Y) analog input terminals with tri level sync input or with tri level sync on green (BNC terminals). The projector detects
automatically where the sync signal is located.
Image 3-12
Component input selection via
the RCU
1. Press digit button 6.
Component input selection via the local keypad
1. Press ADJUST key to start up the adjustment mode.
The General Access menu will be displayed. (image 3-13)
2. Use the cursor keys to highlight 6
3. Press ENTER to select the highlighted s ource.
18
R5976584 BA RCO CINE7 26022003
