This section briefly describes the various CineWall system components.
2.1
Chassis Assembly

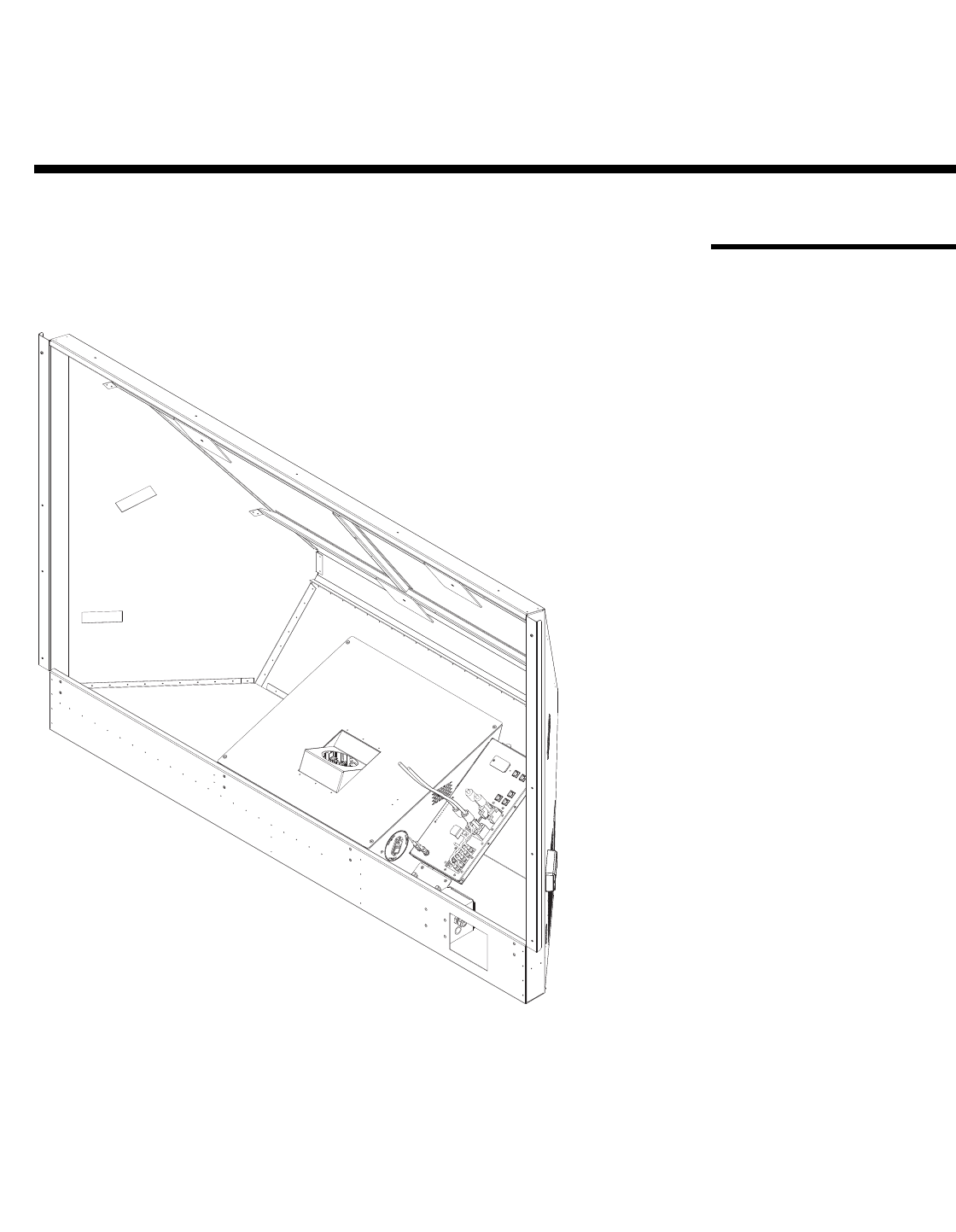

The Chassis Assembly is a sheet metal assembly that contains all of the active
components of the CineWall, as shown below.
The lower middle section of the chassis assembly contains all of the active components
described below. A fold mirror mounted at the rear of the chassis reflects light from the
display engine. Several sets of handles are provided on the chassis to aid installation. The
outer handles are for carrying the unit to the installation wall; the inner handles are for
lifting the unit up and into the wall opening.
Display Engine: The display engine mounts directly to a shelf in the center bottom of the
chassis that makes up a plenum for intake air.
