Multi-room Operations
Before operating this receiver any further, be familiar with this Multi-room function.
This function enables you to listen to different sources in two different places (we call these two places “main room”
and “sub-room”) by using this receiver only.
This section explains only required speaker connections, the concept, and basic operations of the Multi-room function.
For more detailed operations, see the respective pages in this manual.
Left speaker
Right speaker
MAIN ROOM SPEAKERS
Left speaker
Right speaker
SUB ROOM SPEAKERS
Merits:
• This connection DOES NOT require a power amplifier.
Demerits:
• When the sub-room speakers are activated, this connection
DOES NOT allow you to use the DSP mode (see page 32)
using the center/rear speakers and the DVD MULTI playback
mode (see page 41) for the main room sources.

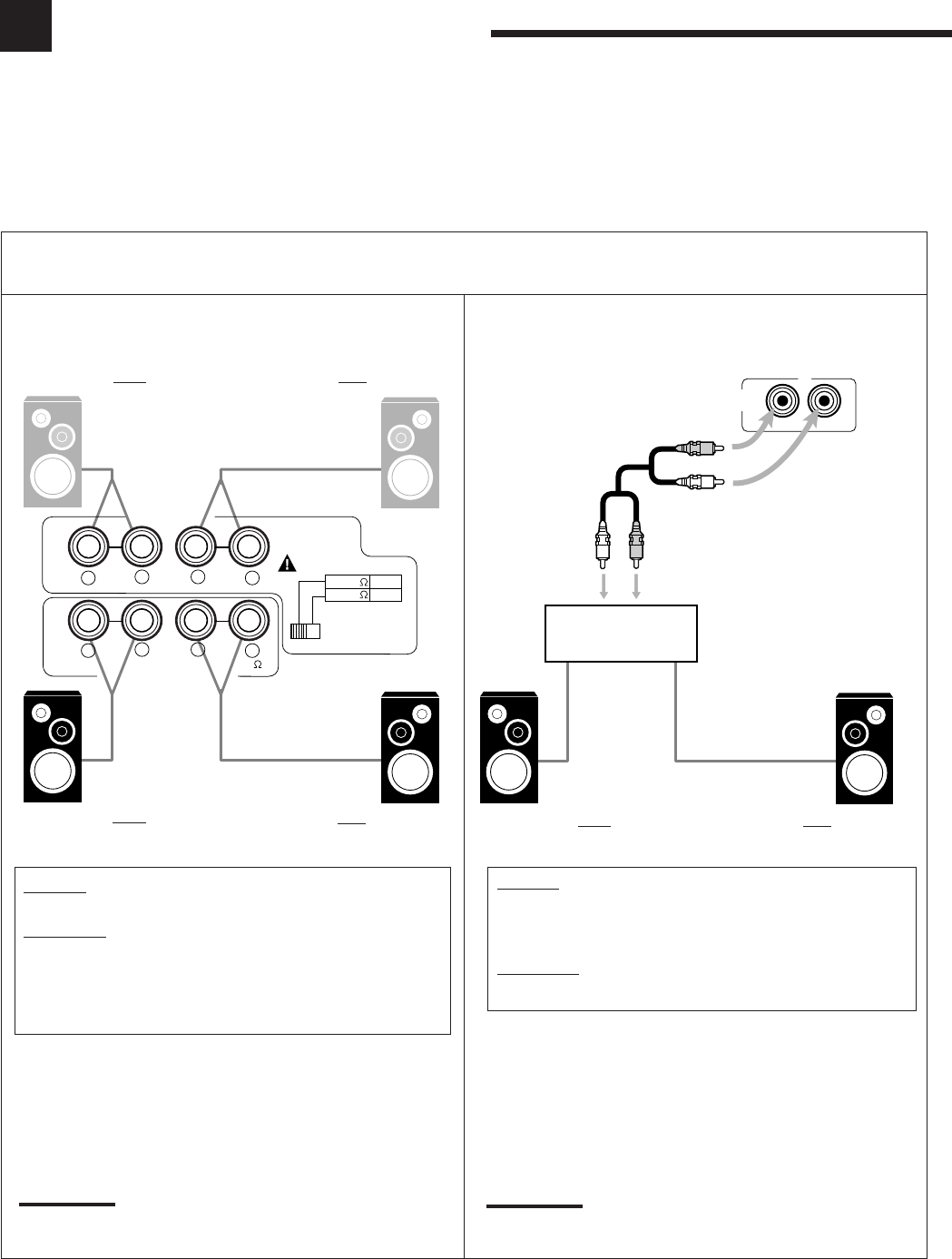

Required Speaker Connections for the Sub-room
Connection Å
See also “Connecting the front speakers” on page 5.
4 ~ 6
8 ~ 16
+ +
–
–
RIGHT LEFT
+ +
–
–
RIGHT LEFT
SPEAKER
LOAD
SELECTOR
LOW
HIGH
FRONT 1 SPEAKERS
FRONT 2 / SUB ROOM SPEAKERS
CAUTION : SPEAKER IMPEDANCE 8 ~ 16
CAUTION :
SPEAKER IMPEDANCE
Merits:
• This connection DOES allow you to use the DSP mode (see
page 32) using the center/rear speakers and the DVD MULTI
playback mode (see page 41) for the main room sources.
Demerits:
• This connection DOES require another amplifier.
RIGHT LEFT
SUB ROOM
PRE OUT
Another amplifier
Left speaker
Right speaker
SUB ROOM SPEAKERS
Connection ı
Connect the input jacks of another amplifier to the SUB ROOM
PRE OUT jacks on the rear panel, using a cable with RCA pin
plugs (not supplied).
To use the front speakers connected to the FRONT 2/SUB
ROOM SPEAKERS terminals for the sub-room
See “Setting the Front Speakers Either for the Main Room or
Sub-room” on page 23, and “Activating the Sub-room Front
Speakers” on page 22.
Note:
Using long speaker signal cables will deteriorate the signals, and
will result in poor sound quality.
To use the front speakers in the sub-room
• No settings are required on this receiver.
• Turn on and operate the other amplifier connected to the SUB
ROOM PRE OUT jacks correctly.
Note:
Using long cables will deteriorate the signals, and will result in poor
sound quality.
