3. Connections
Input specifications
(HD)SDI input : BNC
(HD)SDI output : BNC (= loop through)
typical : 0.8 Vpp
75Ω terminated
output impedance: 75Ω
TWO WAY
HARDWIRED REMOTE
2
1
3
PUSH
R/PR
G/Y B/PB Hs/Cs Vs VIDEO
(HD)SDI
IN
(HD)SDI OUT
S-VIDEO
R.C.
10 BASE-T
DVI ANALOG RGB RS 232/422 IN
POWER WIRELESS
RECEIVER
RS 232/422
OUT

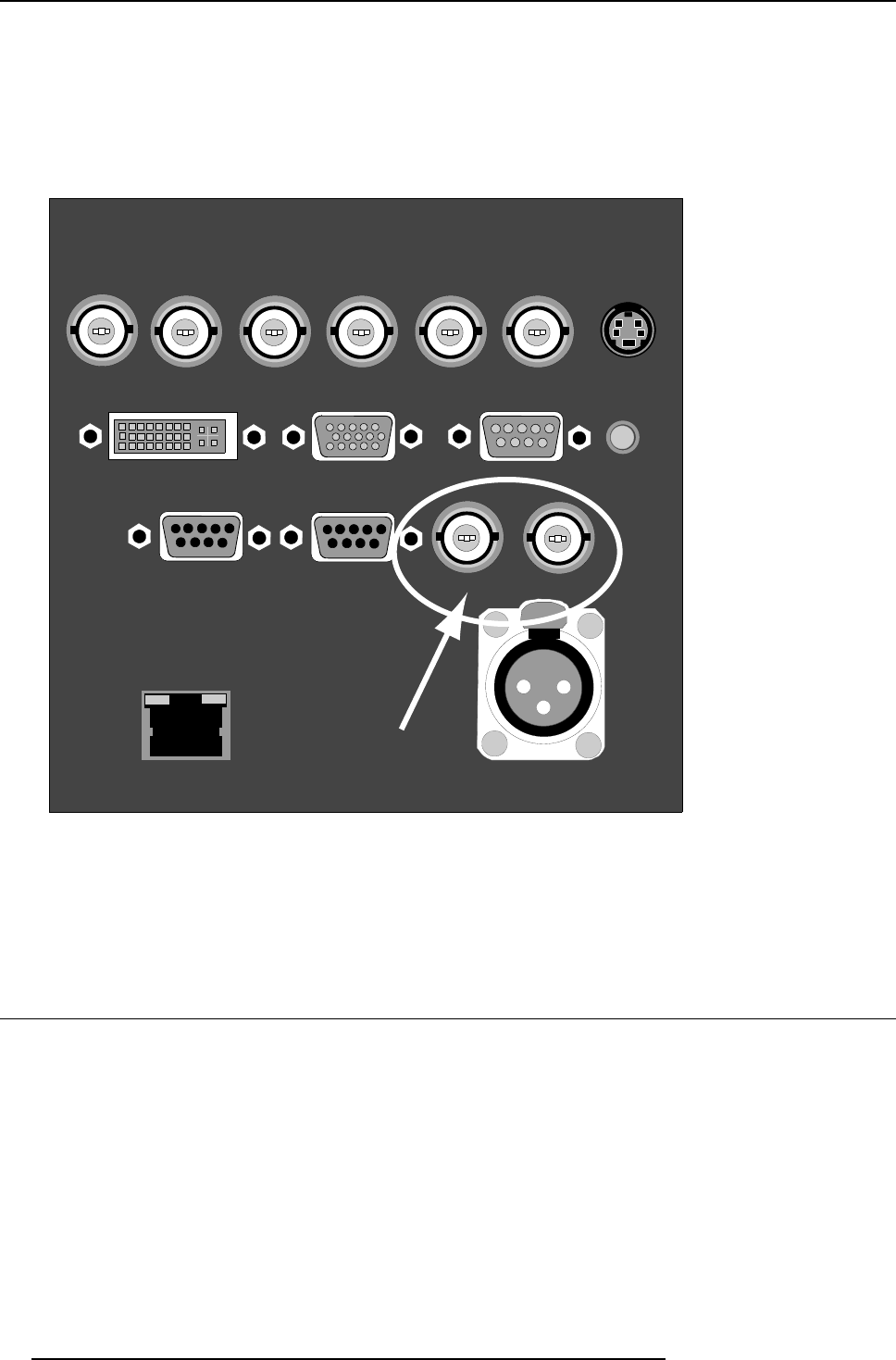

Image 3-9
(HD)SDI input
How to select the (HD)SDI input
1. Press 7 on the RCU
Note: Another way for selecting this i nput is via
Source on the local keypad or via the Menu.
3.9 Communication connection
Overview
• RS232 IN connection
• Wireless receiver
3.9.1 RS232 IN connection
What can be connected to the RS232
/422 IN connection ?
The RS232 IN connection allows the projector to communicate with a computer e.g. IBM PC or Apple Macintosh.
30
R5976817 RLM H5 02/06/2006
