13.7.1 Introduction
Why ScenergiX ?
When working in a multichannel setup the RLM H5 and its Soft Edge possibilities enable an image blending that gives the appear-
ance of a single view, thus achieving realistic immersion for the majority of wide screen applications.

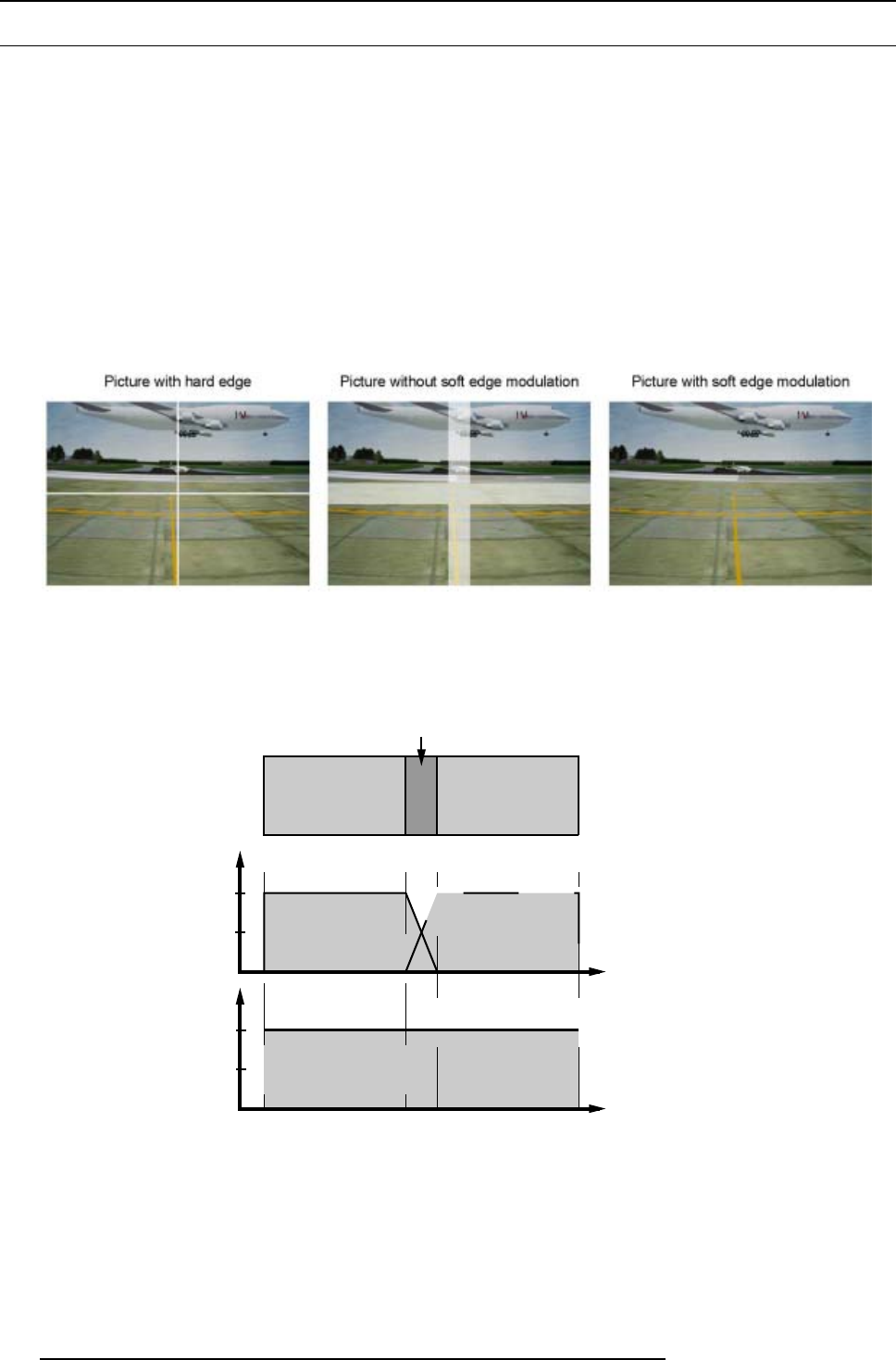

Image 13-12
Why Soft Edge?
What is the Basic Principal of ScenergiX ?
The principle of edge blending is archived by linear modulation of the light output in the overlap zone so that the light output in that
zone equals the light output of the rest of the image.
Adjustable overlapping area
50%
100%
50%
100%
image 2image 1
image 2image 1
Light output per image
Total composite light output
Image 13-13
ScenergiX Basic Principle
13.7.2 Preparations
ScenergiX Preparations
To ensure proper ScenergiX adjustment, be sure that the following adjustments are done perfectly on all projectors:
• Convergence (Electronic Convergence).
• Geometry
• Color Matching (Color Temperature, Input Balance, Gamma)
