Additional Information
Guide to Parts and Controls
For more information, see the pages in parentheses.
Recorder and centre unit buttons of the same/similar name have the same function as the buttons on the
remote.

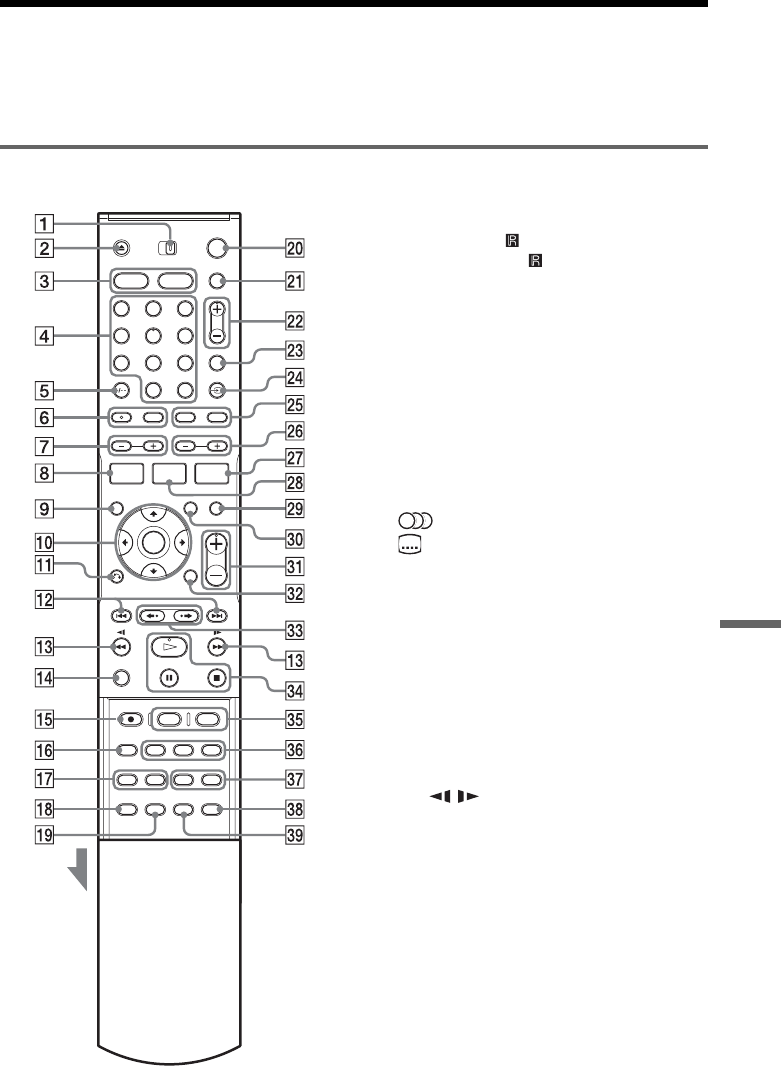

Remote
The supplied remote operates both the recorder
and speaker system.
Point the remote at (remote sensor) on the
recorder. Or, point it at on the centre unit when
operating the speaker system.
A AMP/DVD switch (28, 29)
B Z (open/close) button (31, 53, 58)
C DVD button (33)
FM/AM button (96)
D Number buttons (38, 44, 56, 99)
SET button (56)
E CLEAR/-/-- (ten digit) button (44, 46, 56,
98)
F (audio) button (53)
(subtitle) button (53)
G SOUND FIELD +/– buttons (85)
H DISPLAY button (35, 48, 56)/FM
DISPLAY* button (96)
I TOP MENU button (51, 57, 61)
J </M/m/,/ENTER button (28, 33, 37)
K O RETURN button (33, 42, 46, 57, 61)
L . (previous)/> (next) buttons (53,
58, 61)
M m / M (search) buttons (53, 58)/
TUNING +/–* buttons (96)
N TV button (98)
O z REC button (32, 47, 49, 71)
P REC MODE button (32, 41, 49, 71)
Q REPEAT button (55, 58)
A-B button (55, 58)
R SUR (surround) button (22)/SLEEP*
button (97)
S SET UP button (28, 31, 74)/DIMMER*
button (84)
1 2 3
4 6
7 8 9
0
5
Open the
cover
,continued
