14

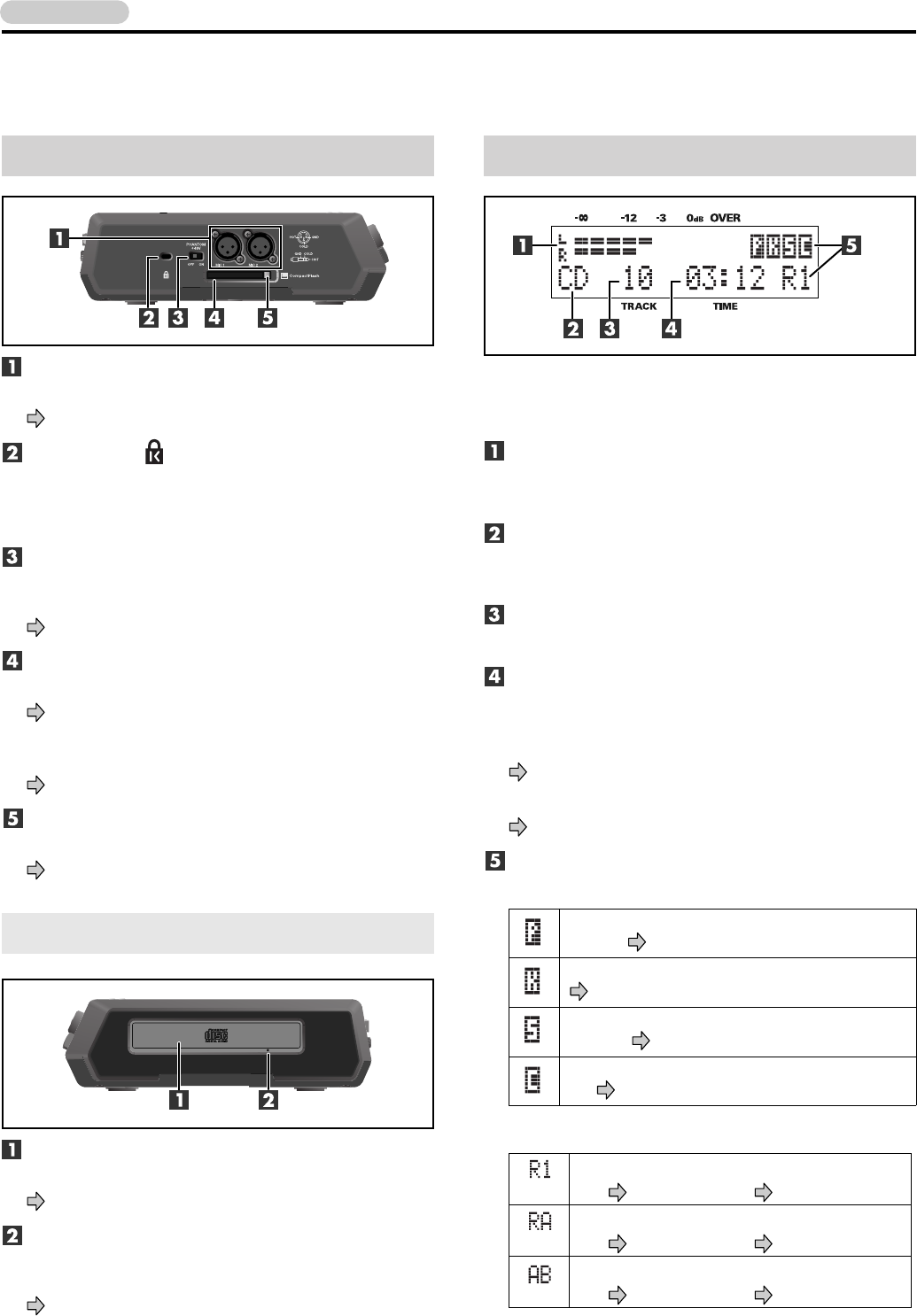

Panel Descriptions (continued)
Introduction
MIC 1/MIC 2 Jacks
Mics with XLR-type plugs can be connected to these jacks.
Page 20, “Connecting Other Equipment”
Security Slot ( )
You can attach a commercially available security lock
here.
http://www.kensington.com/
PHANTOM Power Supply Switch
This switch supplies phantom power to the XLR-type
MIC 1/MIC 2 jack.
Page 22, “Connecting Condenser Mics”
CompactFlash (CF Card) Slot
You can insert a CompactFlash (CF) card here.
Page 27, “Inserting/Removing a CF Card”
If desired, you can attach the included card protector to
prevent theft of the CF card.
Page 19, “Attaching the Card Protector”
Card Eject Button
Use this button to eject the CF card.
Page 27, “Removing a CF Card”
Disc Tray
Place the CD in this tray.
Page 26, “Inserting a Disc”
Emergency Eject Hole
You can use this to remove the disc in case of emergency.
Normally, it is not used.
Page 26, “If the Disc Tray Doesn’t Open”
The display shows various information or messages
related to the operation you’re performing, such as when
making various settings or editing tracks.
LEVEL Meter
This indicates the volume level of the track that’s playing
or the instrument or mic that’s being input.
Source Name Indication
This indicates the name of the currently selected audio
source.
TRACK Indication
This indicates the track number.
TIME Indication
● This indicates the elapsed playback or recording time.
You can switch the time information that is shown
here.
Page 75, “Displaying the Remaining Time”
● The track titles of a CF card will be scrolled here.
Page 78, “Viewing the Track Titles on a CF Card”
Icon Indications
● Functions specific to a CD
● Functions common to both CD and CF
Side Panel (CompactFlash Slot)
CD-R/RW Drive
Display
Displayed when the playback pitch is being
altered. Page 41
Displayed when the key is being altered.
Page 42
Displayed when the playback speed is being
altered. Page 40
Displayed when the Center Cancel function is
on. Page 42
Displayed during 1-track repeat playback.
CD Page 43, CF card Page 44
Displayed during all-track repeat playback.
CD Page 43, CF card Page 44
Displayed during A-B repeat playback.
CD Page 43, CF card Page 45
