ASSIGNING AUDIO & VIDEO INPUT CONNECTORS (continued)
MANUAL -18dB to +12dB
Provides manual adjustment of 2-channel analog audio input levels.
When manual adjustments are made, the AV1 automatically sets
the ANLG IN LVL menu AUTO parameter to OFF and deactivates
automatic input level adjustment. Manual input level adjustments
are retained when the AUTO parameter is ON.
Note:
When the AUTO parameter is ON, the AV1 will not make adjustments
that exceed the ANLG IN LVL menu MANUAL parameter setting.
AUTO GAIN
Indicates the current amount of input level adjustment for the
selected stereo analog audio input connector. When the ANLG IN
LVL menu AUTO parameter is ON, the AUTO GAIN parameter indi-
cates the amount of automatic input level adjustment. When the
AUTO parameter is OFF, the AUTO GAIN parameter indicates the
amount of manual input level adjustment. (In other words, the
AUTO GAIN parameter reflects the setting of the ANLG IN LVL
menu MANUAL parameter.)
When the AUTO parameter is ON, the AUTO GAIN parameter con-
tinues to indicate the amount of manual input level adjustment
until automatic adjustments have been made.

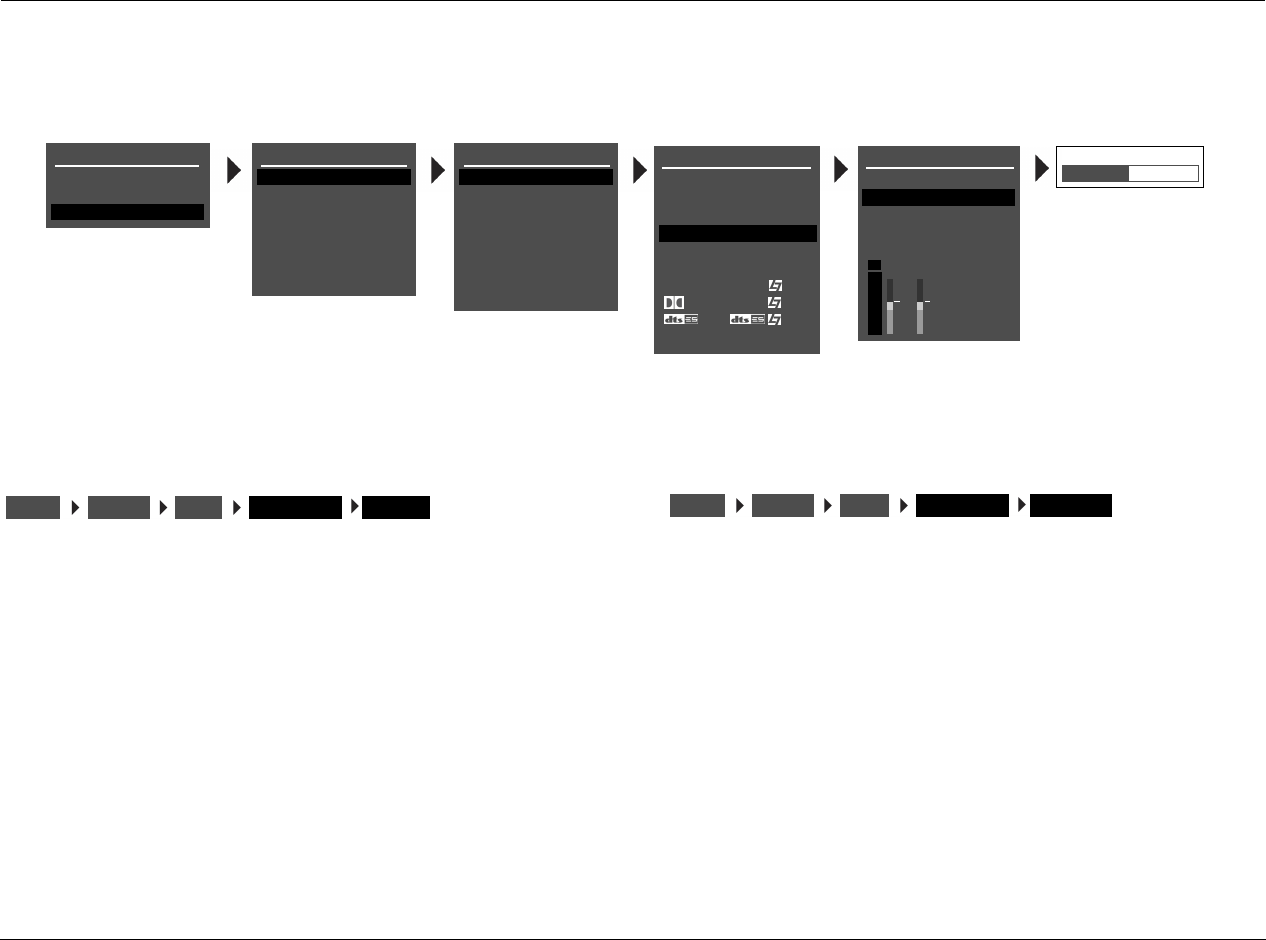

DVD1 ANLG IN LVL
