Connections
6-6 5975338 BARCOVISION 9200 280497

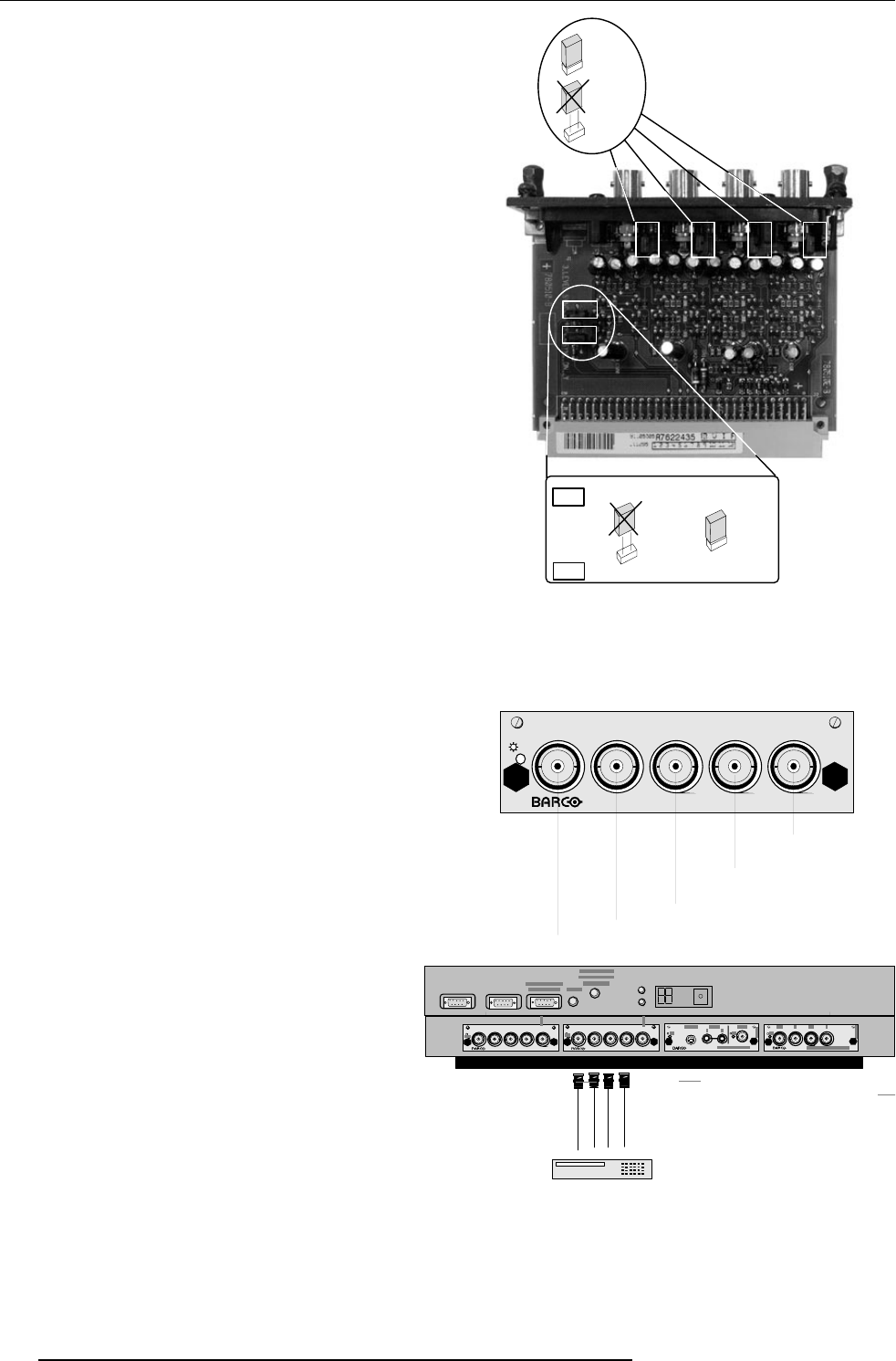

Straps on module level :
Floating or non-floating input.
R-Y : J3 : strap "yes" : non floating strap "no" : floating
Y : J4 : strap "yes" : non floating strap "no" : floating
B-Y : J5 : strap "yes" : non floating strap "no" : floating
S : J6 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection.
J8 :
strap "no" : separate sync
strap "yes" : sync on Y.
J9 :
strap "yes" : Tri-level sync
strap "no" : normal sync.
Factory preset :
separate sync and
normal sync.
Floating or non floating input
Floating
Non-Floating
Sync selection
Separate sync
Sync on Y
J3
J4
J5
J6
J9
J8
Normal Sync
Tri-level Sync
J8
J9
RGB3S/RG3sB input module.
Connect your RGB signals with Tri-level sync, e.g. a professional
VCR to the RGB 3 level sync input module.
RGB3S/RG3sB analog : 5 x BNC
Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if Tri-level sync on green
Vert. Tri-level sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. Tri-level sync / Composite Tri-level sync:
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
Input selection :
R
G
B
H / C
V
On
RGB 3-LEVEL SYNC INPUT
98 27920
Vert. 3 level
sync
Blue
Green
Red
Hor. or composite
3 level sync
HDTV VCR
RS 232 IN
RS232 OUT
IR-ACKNOWLEDGED
IR-RECEIVED
DIAGNOSTICS
CODE
IR-RECEIVER
Key in the corresponding slot number on the RCU or the local
keypad.
Indication on the input slot menu :
RGB3L-SS = RGB with separate Tri level sync.
RGB3L-SOG = RGB with Tri level sync on green.
