6-4 5975338 BARCOVISION 9200 280497

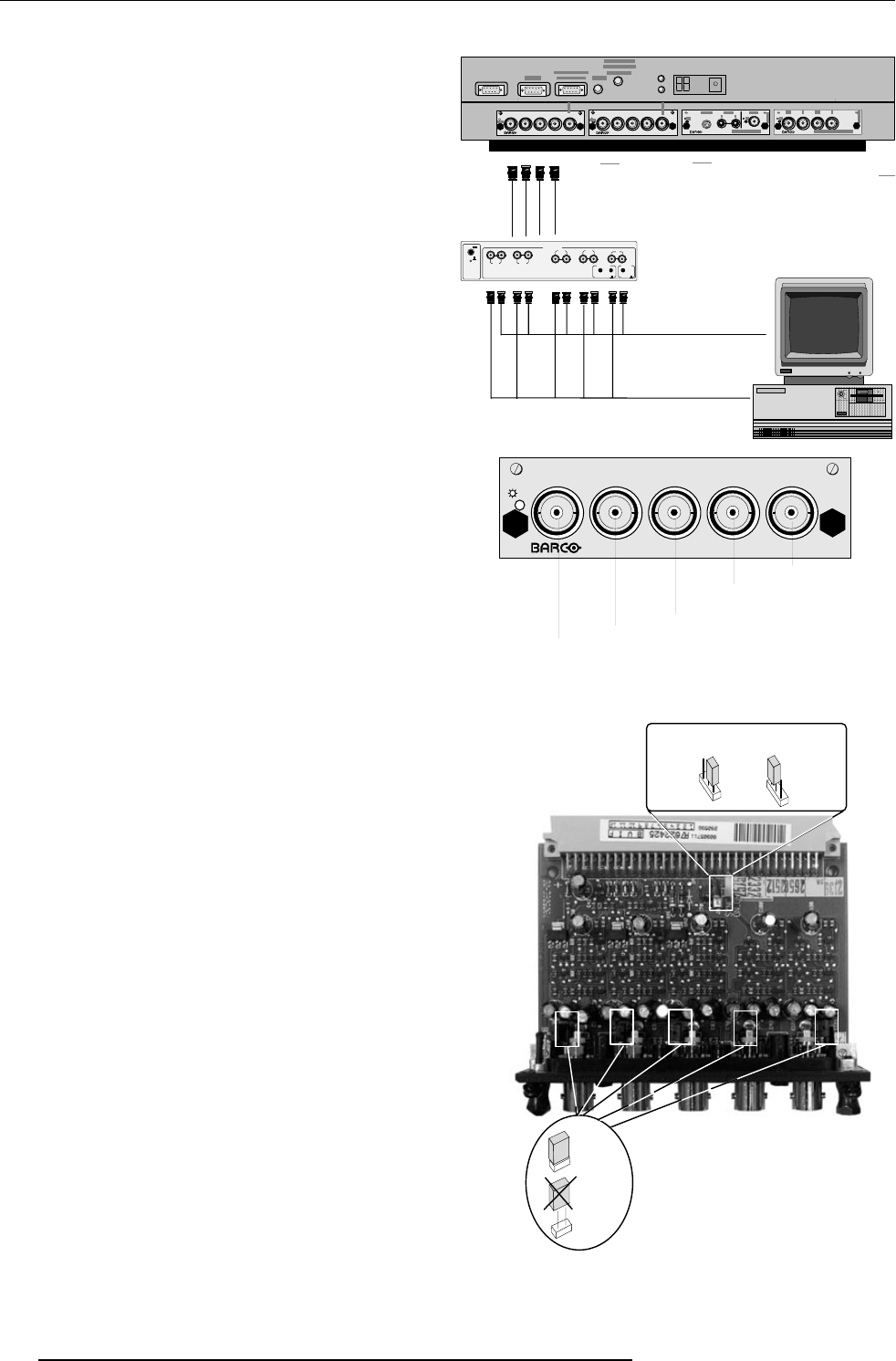

RGB analog input module.
RGB analog input terminals with separate Horizontal and Vertical
sync inputs(RGB-HV), with Composite sync input(RGB-S) or with
Sync signals on green(RGsB).
Always use an interface when a computer and local monitor have to
be connected to the projector. Interfaces which can be applied :
Universal analog interface.
Order number : R9826100.
RGB 120 MHz analog interface.
Order number : R9826570.
VGA interface
Order number 120V : R9828079.
Order number 230V : R9828070
MAC interface
Order number 120V : R9828059
Order number 230V : R9828050
MAGIK interface
Order number 120V : R9828129
Order number 230V : R9828120
RGBS/RGsB analog : 5 x BNC
Red : 0.7 Vpp ± 3 dB
Blue : 0.7 Vpp ± 3 dB
Green : 0.7 Vpp ± 3 dB
1 Vpp ± 3 dB if sync on green
Vert. sync : 1 Vpp to 4 Vpp ± 3 dB
Hor. sync / Composite sync :
1 Vpp to 4 Vpp ± 3 dB
All input signals are always 75 ohm terminated, even in the "not
selected" mode.
RGB input selection :
Key in the corresponding slot number on the RCU or the local
keypad.
Straps on module level :
Floating or non-floating input.
Red : J3 : strap "yes" : non floating strap "no" : floating
Green :J4 : strap "yes" : non floating strap "no" : floating
Blue : J5 : strap "yes" : non floating strap "no" : floating
H/C : J6 : strap "yes" : non floating strap "no" : floating
V : J7 : strap "yes" : non floating strap "no" : floating
Factory preset : strap "yes", non floating input
Sync selection : strap on module level.
J8 : see drawing
Factory preset : separate sync.
Sync selection on the Input Slots menu.
The horizontal sync input can be set as separate sync input or as
separate sync + video input. To change this setting, press
ENTER
key to start up the Adjustment mode..
ON
OFF
B
H
G
R
V
INP
INP
INPUT
ANALOG INTERFACE 120 MHz
RS232 OU T
IR-ACKNOWLEDGED
IR-RECEI VED
DIAGNOSTICS
CODE
IR-RECEI VER
H / C
On
RGB ANALOG INPUT
Vert. sync
Hor. sync or Composite
sync
Blue
Green
Red
Floating or non floating input
Floating
Non-Floating
J8
Sync selection
Separate sync
Sync on green
J7
J6
J5
J4
J3
