Location and Functions of Control
4-1
5975338 BARCOVISION 9200 210497
4

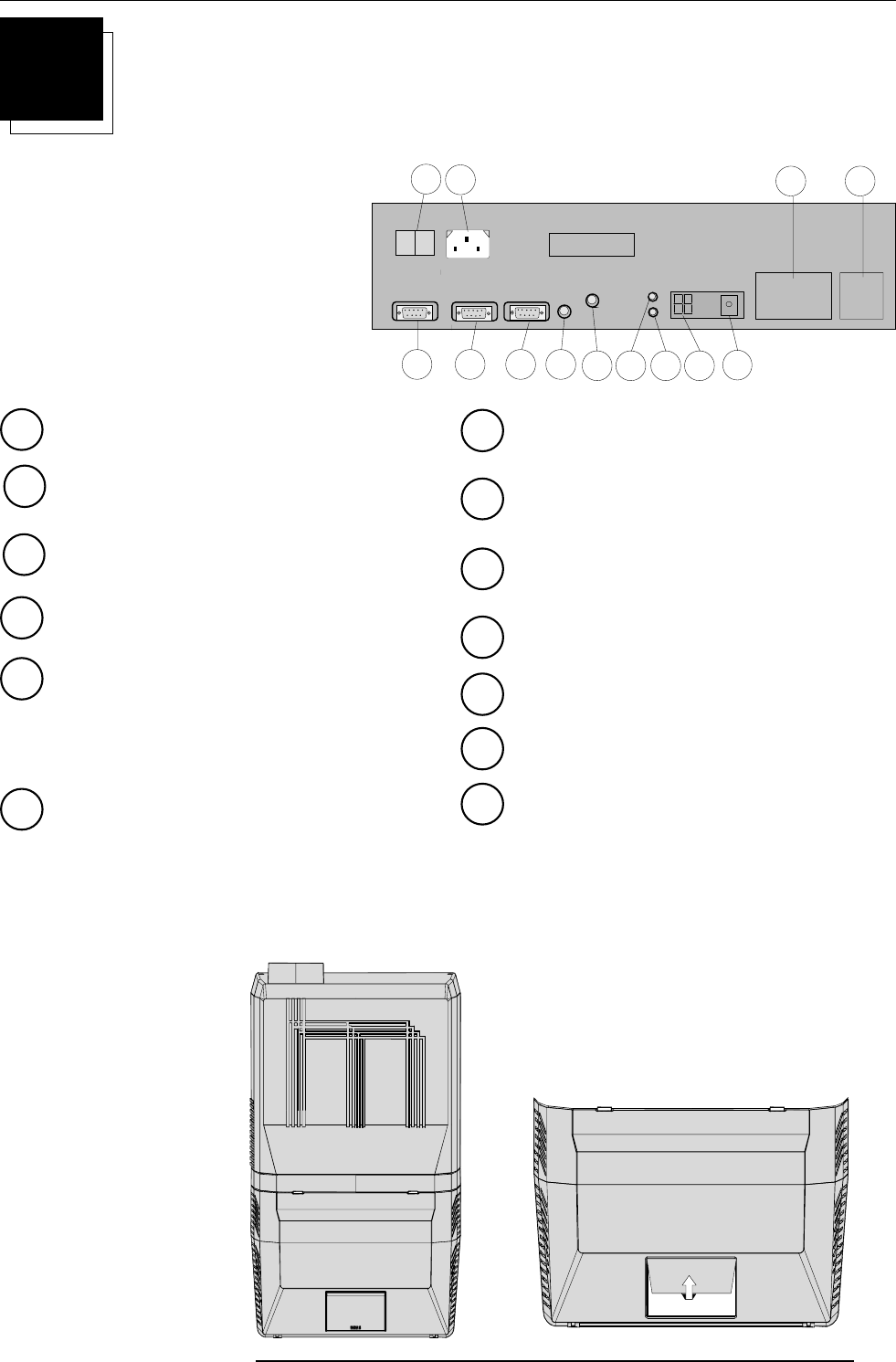

LOCATION AND FUNCTIONS OF CONTROL
Front panel terminology
RS 232 IN
REMOTE
PROJECTOR MODE :
GREEN - OPERATION
RED - STANDBY
COM MUNICATI ON PORT
(800-PERIPHERALS)
RS232 OUT
0I
This device complies with Part 15 o f the F CC rules. Operation
is subject to following two conditions :
(1) Th is device may not cau se harmful interference
(2) This device must accept any interfer ence received
including interference that may cause undes ired operation
2
3 4
9
11
10
1
5
6
7 8
IR-ACKNOWLEDGED
IR-RECEIVED
DIAGNOSTICS
CODE
IR-RECEIVER
12 13
IR-Received : IR signals are received but not recognized
by the projector.
Diagnostics code : a) source number
b) error code : a two digits error code is displayed when
something goes wrong inside the projector.
IR receiver : receiver for control signals transmitted from
the RCU.
Power switch : '1' = on, '0' = off
Power input : autoranging from 200 to 240 Vac.
Identification plate : name, serial number, art. number.
Voltage identification plate : name, serial number, art.
number.
1
2
3
RS232 IN : to allow communication with external compu-
ter, e.g. IBM PC or compatible, Macintosh ...
RS232 OUT : used to connect to next projector, RS232IN
plug (communication link for PC or MAC to the next
projector).
Communication port : allows communication with the
800 peripherals.
Remote : remote input for wired remote control.
Projector mode indication : indicates the status of the
projector.
no lighting up : power switch is not pressed.
red lighting up : power switch is pressed, projector in
stand by mode.
green lighting up : projector in operational mode.
IR-Acknowledged : IR signals are recognized.
4
5
Control Panel Terminology
a. Local keypad
Getting access
6
7
8
9
10
11
12
13
The keypad is located behind a door, screened with the name
of the projector.
To open the door, push once on the indicated side of the door
and turn it to the front side of the projector.
