Main Unit
1 Disc trays (21)
2
(Standby/On) button and STANDBY/ON lamp
(11, 18)
3 MENU button (16, 52 – 64)
4 Remote sensor
5 REC MODE button (36 – 38)
6 LONG MODE (SP/LP2/LP4) button (33 – 38)
7 REC PAUSE button and lamp (34)
8 HIGH-SPEED CD 3 MD button (35)
9 LINE button (11, 38)
• Pressing this button also turns on the unit.
p FM/AM button (11, 18)
• Pressing this button also turns on the unit.
q MD loading slot (27)
w MD # / 8 (play/pause) button (11, 27)
• Pressing this button also turns on the unit.
e 0 CD1, 0 CD2, 0 CD3 (open/close) buttons (21)
• Pressing one of these buttons also turns on the unit.
r DISC button (21)
t VOLUME control (12)
y 7 (stop) button (11, 15, 21, 27, 35)
u CANCEL button (23, 29, 41, 47, 52)
i Joy control
• 1
/ ¡ / 4 / ¢ , and SET
Pressing SET also turns on the unit.
o MD 0 (eject) button (27)
• Pressing this button also turns on the unit.
; ENTER/DEMO button (9, 13, 15, 47, 48, 50)
a TITLE/EDIT button (41 – 44, 46 – 48)
s LINE 2 jack – stereo mini type (8)
d PHONES jack – stereo mini type (12)
f CD # / 8 (play/pause) button (11, 21)
• Pressing this button also turns on the unit.
Continued
When using the remote control, point it at the remote
sensor on the front panel.
Display window
g Timer mode indicators (52 – 57)
•
, DAILY (Daily Timer) and REC (Recording
Timer)
h CD indicators (21)
• CD source and CD numbers 1 to 3
j Main display
• Shows the source name, track number, and other
information.
k MD indicators (27)
• MD source and MD insertion
l Recording length mode indicators (33)
• SP, LP2, and LP4
/ SOUND indicator (15)
z A. BASS (Active Bass Extension) indicator (12)
x OVER indicator (63)
c Play mode indicators (22 – 25, 28 – 30)
• PRGM (Program), RANDOM, and REPEAT (1/CD/
ALL)
v Tuner mode indicators (18)
• TUNED and STEREO
b A. P. off (Auto Power Off) indicator (64)

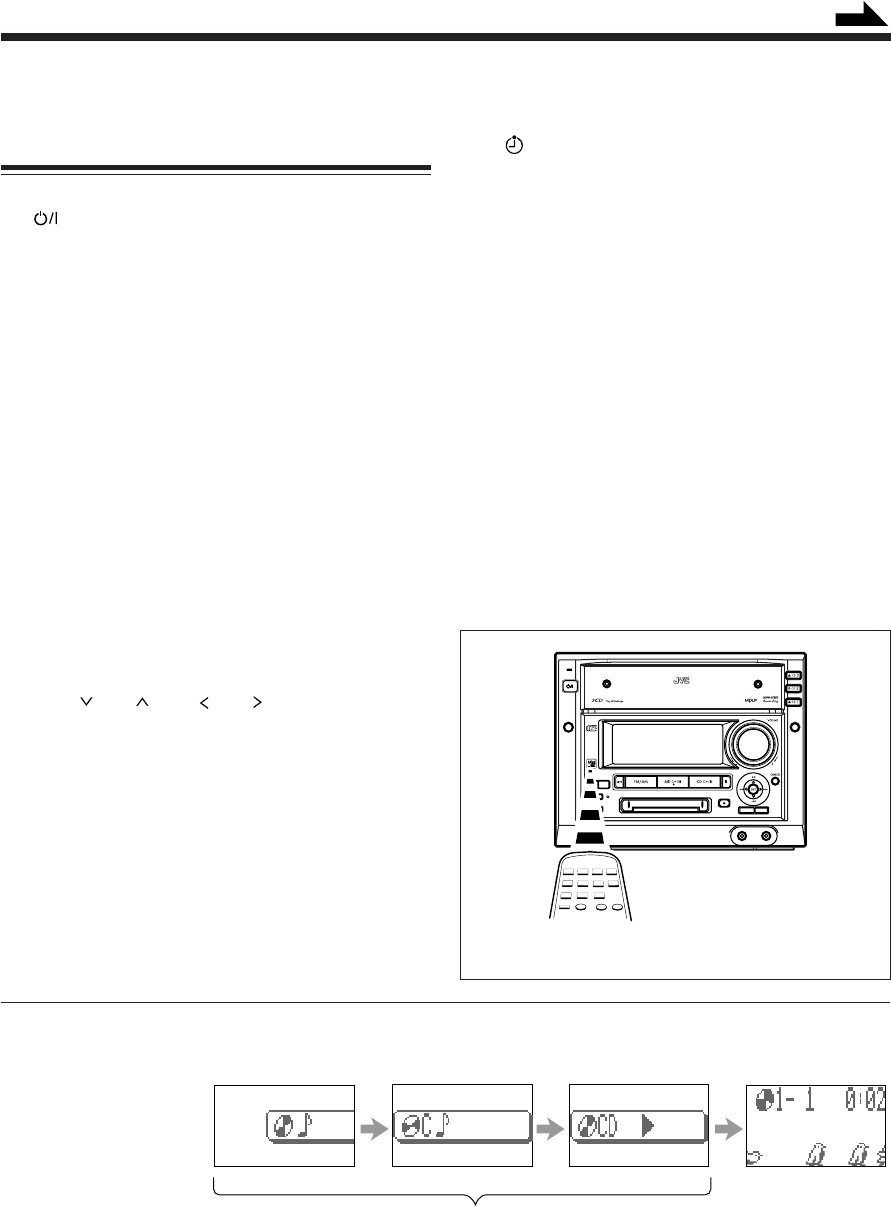

About the indications in the main display
When using some functions with the remote control, the indications in the main display appear differently at first from those when using
the same functions with the buttons on the unit.
Ex. When starting CD play
using the remote control
This indication does not appear when using the buttons on the unit
except the following:
• When selecting the playback source
• When calling up the menu, MD editing mode, or title entry mode
DISC LOADING MECHANISM
STANDBY
/ON
LONG
MODE
REC
MODE
SP/LP2/LP4
REC PAUSE
HIGH SPEED
CD MD
TITLE/EDIT
ENTER
/DEMO
PHONES
LINE 2
MENU
COMPACT COMPONENT MD SYSTEM MX-S6MD
