CONNECTING OPTIONAL EQUIPMENT
Refer to the operating instructions of the connected equipment for details.
• The connecting cords are not supplied. Obtain the necessary connecting cords.
• Consult your local Aiwa dealer for optional equipment.

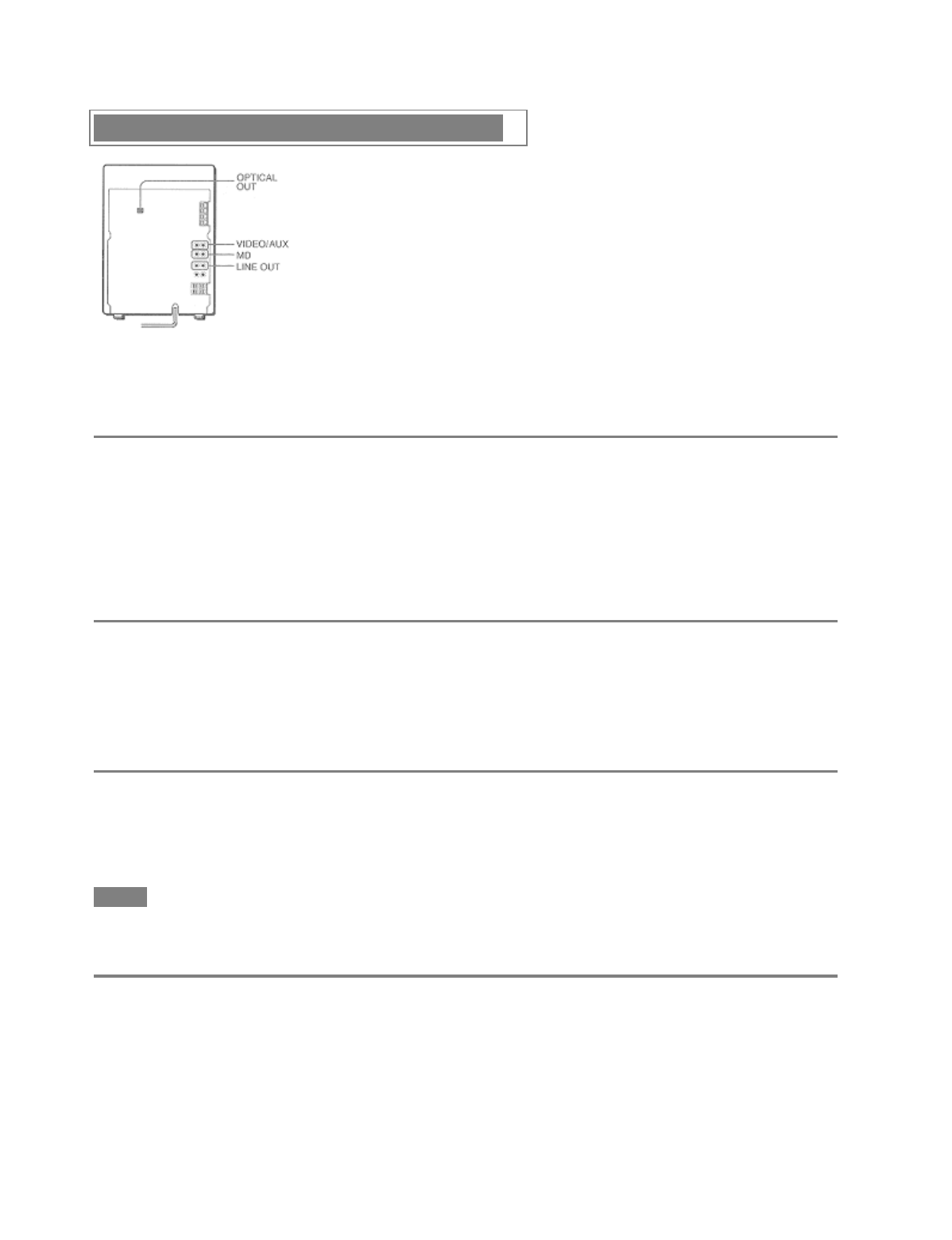

VIDEO/AUX JACKS
This unit can input analog sound signals through these jacks. Use a cable with RCA phono plugs to connect audio
equipment (turntables, LD players, VCRs, etc.).
Connect the red plug to the VIDEO/AUX R jack, and the white plug to the VIDEO/AUX L jack.
When connecting a turntable
Use an Aiwa turntable equipped with a built-in equalizer amplifier.
MD JACKS
This jack is recommended to connect with an MD player.
Use a cable with RCA phono plugs.
Connect the red plug to the MD R jack, and the white plug to the MD L jack.
• When MD player is connected to these jacks, no sound will be output from the LINE OUT jacks.
LINE OUT JACKS
This unit can output analog sound signal through these jacks.
Use a cable with RCA phono plugs to connect audio equipment with LINE IN (analog input) jacks.
Connect the red plug to LINE OUT R jack and the white plug to LINE OUT L jack.
NOTE
Do not connect an equipment to LINE OUT and VIDEO/AUX simultaneously. Otherwise, noise i's generated and
malfunction occurs.
OPTICAL OUT JACK
This unit can output CD digital sound signals through this jack. Use an optical cable to connect digital audio
equipment (DAT deck, MD recorder, etc.).
Remove the dust cap (a) from the OPTICAL OUT jack. Then, connect an optical cable plug to the OPTICAL
OUT jack.
