l_=l|Fll=ii'r

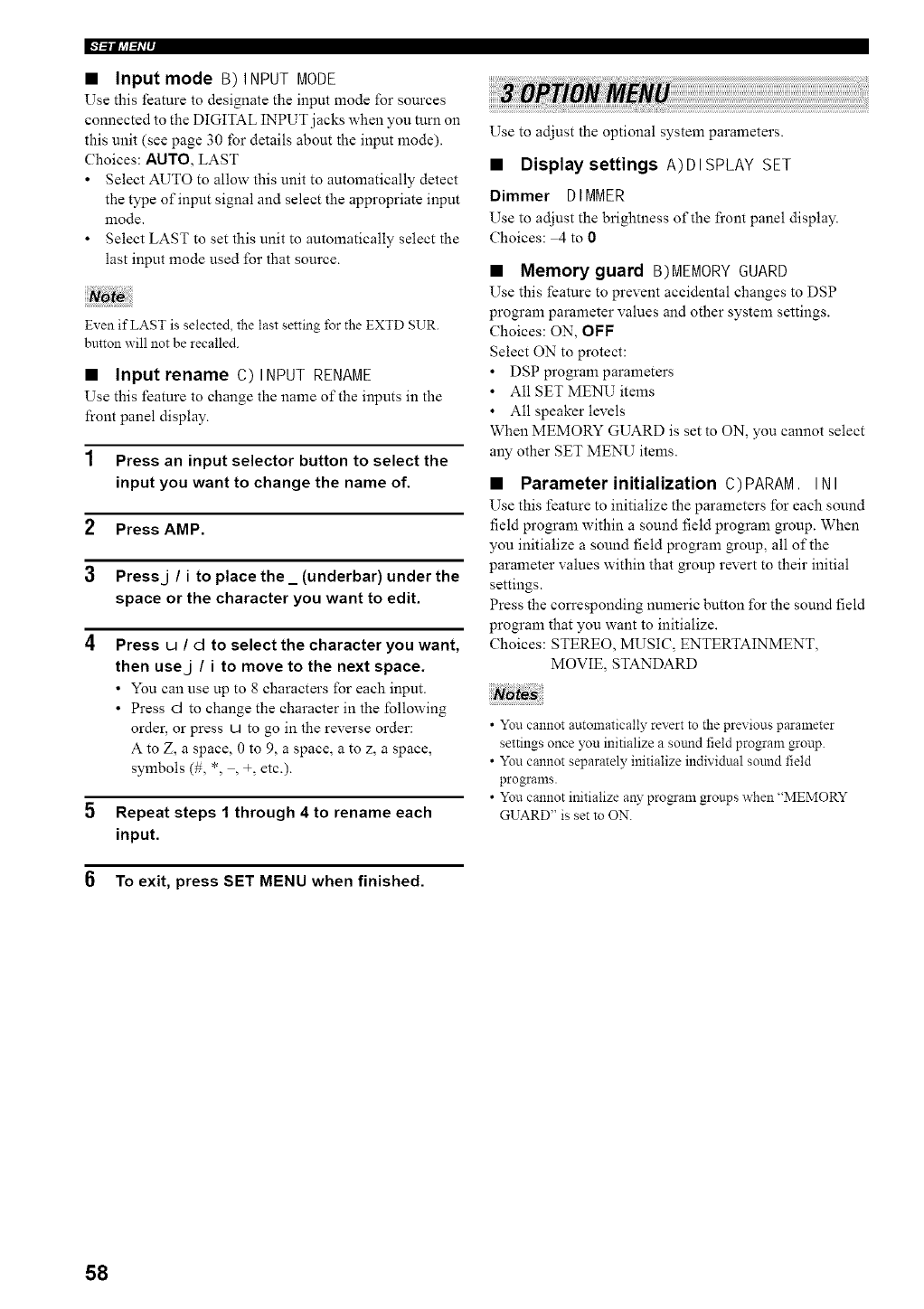

• Input mode B) INPUT MODE
Use this feature to designate the input mode for sources
connected to the DIGITAL INPUT jacks when you tuna on
this unit (see page 30 for details about the input mode).
Choices: AUTO, LAST
• Select AUTO to allow this unit to automatically detect
the type of input signal and select the appropriate input
mode.
• Select LAST to set this unit to automatically select the
last input mode used for that source.
Even if LAST is selected, the last setting for the EXTD SUR.
button will not be recalled.
• Input rename C) INPUT RENAME
Use this feature to change the name of the inputs in the
front panel display.
1 Press an input selector button to select the
input you want to change the name of.
2 Press AMP.
3 Pressj / i to place the _ (underbar) under the
space or the character you want to edit.
4 Press u / d to select the character you want,
then usej / i to move to the next space.
• You can use up to 8 characters for each input.
• Press d to change the character in the following
order, or press u to go in the reverse order:
A to Z, a space, 0 to 9, a space, a to z, a space,
symbols (#, *, , +, etc.).
5 Repeat steps I through 4 to rename each
input.
6 To exit, press SET MENU when finished.
Use to adjust the optional system parameters.
• Display settings A) DISPLAY SET
Dimmer DIMMER
Use to ad ust the brightness of the front panel display.
Choices: 4 to 0
• Memory guard B)MEMORYGUARD
Use this feature to prevent accidental changes to DSP
program parameter values and other system settings.
Choices: ON, OFF
Select ON to protect:
• DSP program parameters
• All SET MENU items
• All speaker levels
When MEMORY GUARD is set to ON, you cannot select
any other SET MENU items.
• Parameter initialization C)PARAM. INI
Use this feature to initialize the parameters for each sound
field program within a sound field program group. When
you initialize a sound field program group, all of the
parameter values within that group revert to their initial
settings.
Press the con'esponding numeric button for the sound field
program that you want to initialize.
Choices: STEREO, MUSIC, ENTERTAINMENT,
MOVIE, STANDARD
• You cannot automatically revert to the previous parameter
settings once you initialize a sound field program group.
• You cannot separately initialize individual sound field
programs.
• You cannot initialize an3"pro_am groups when "MEMORY
GUARD" is set to ON.
58
