MSWU-81E 29/09/2014
9
2.General

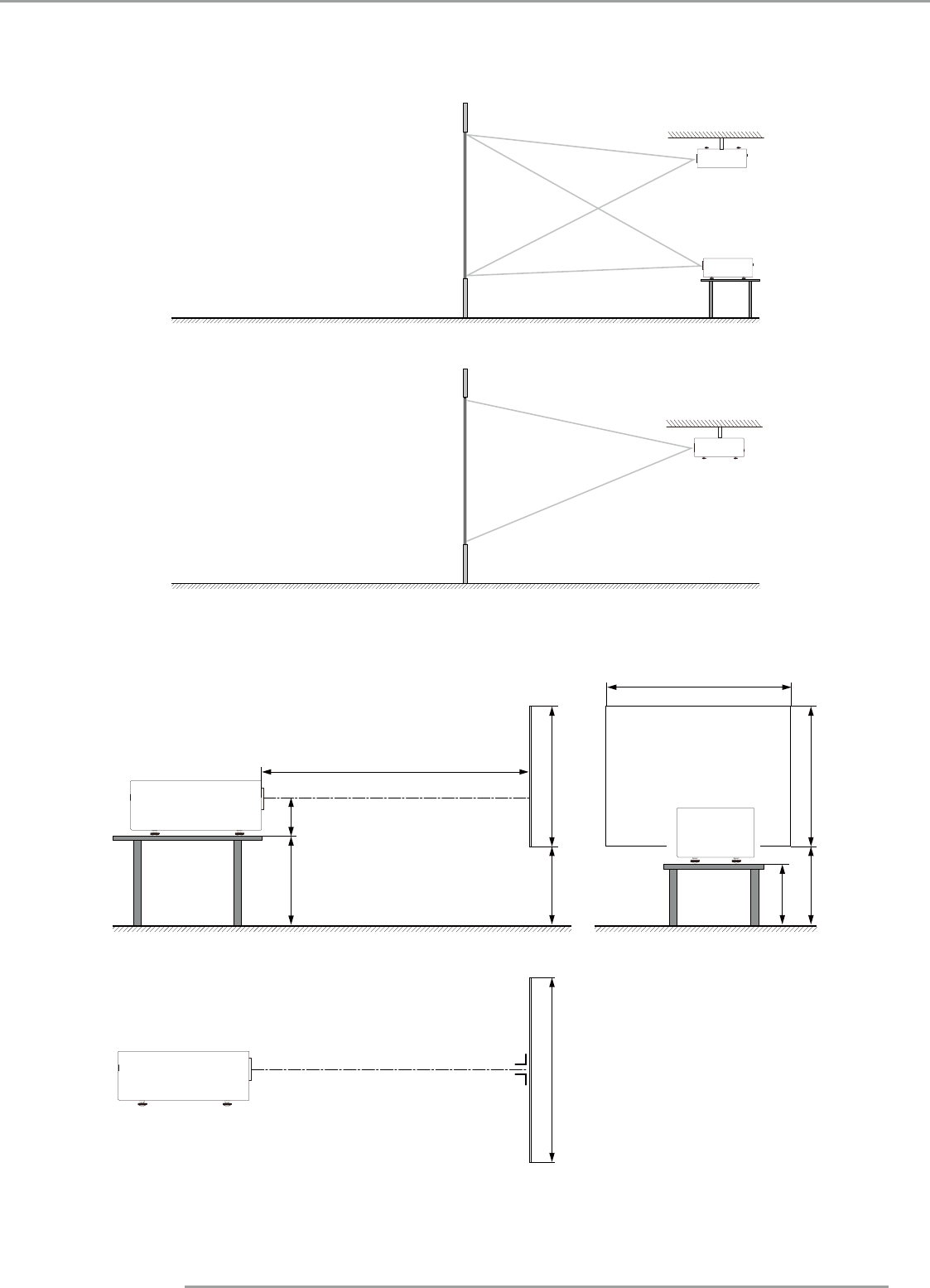

Rear projection
The projector is installed, either in a table mount or ceiling mount configuration, at the other side of the screen opposite the
audience.
AUDIENCE BACKSTAGE
R/C
R/T
FLOOR
SCREEN
Rearprojection
AUDIENCE BACKSTAGE
R/C
FLOOR
SCREEN
Rearprojection,ceilingmountedin tableposition
Positioning the projector
FLOOR
SCREENSCREEN
PD
ACD
SCREEN
SW
SW
SHB
SHB
CD
Positioning projector
The projector should be installed at right angles (horizontally and vertically) to the screen at a distance PD. Note the distance
(A) between lens centre and table surface is slightly variable. This distance (A) is nominal 14 cm in case all feet are turned in
completely and the vertical lens shift is set to zero (0).
