2.General
Main Power requirements
The MSWU-81E projector operates from a nominal mono phase power net with a separate earth ground PE.
Projector Power requirements
MSWU-81E AC INPUT 100-240V 9.2A 50/60Hz
The power cord required to connect the projector with the power net is delivered with the projector.
Projector weight
Do not underestimate the weight of the MSWU-81E projector. The projector weights about ±34 kg (±76 lb.) without lens. Be
sure that the pedestal or ceiling mount on which the projector has to be installed is capable of handling five (5) times the
complete load of the system.

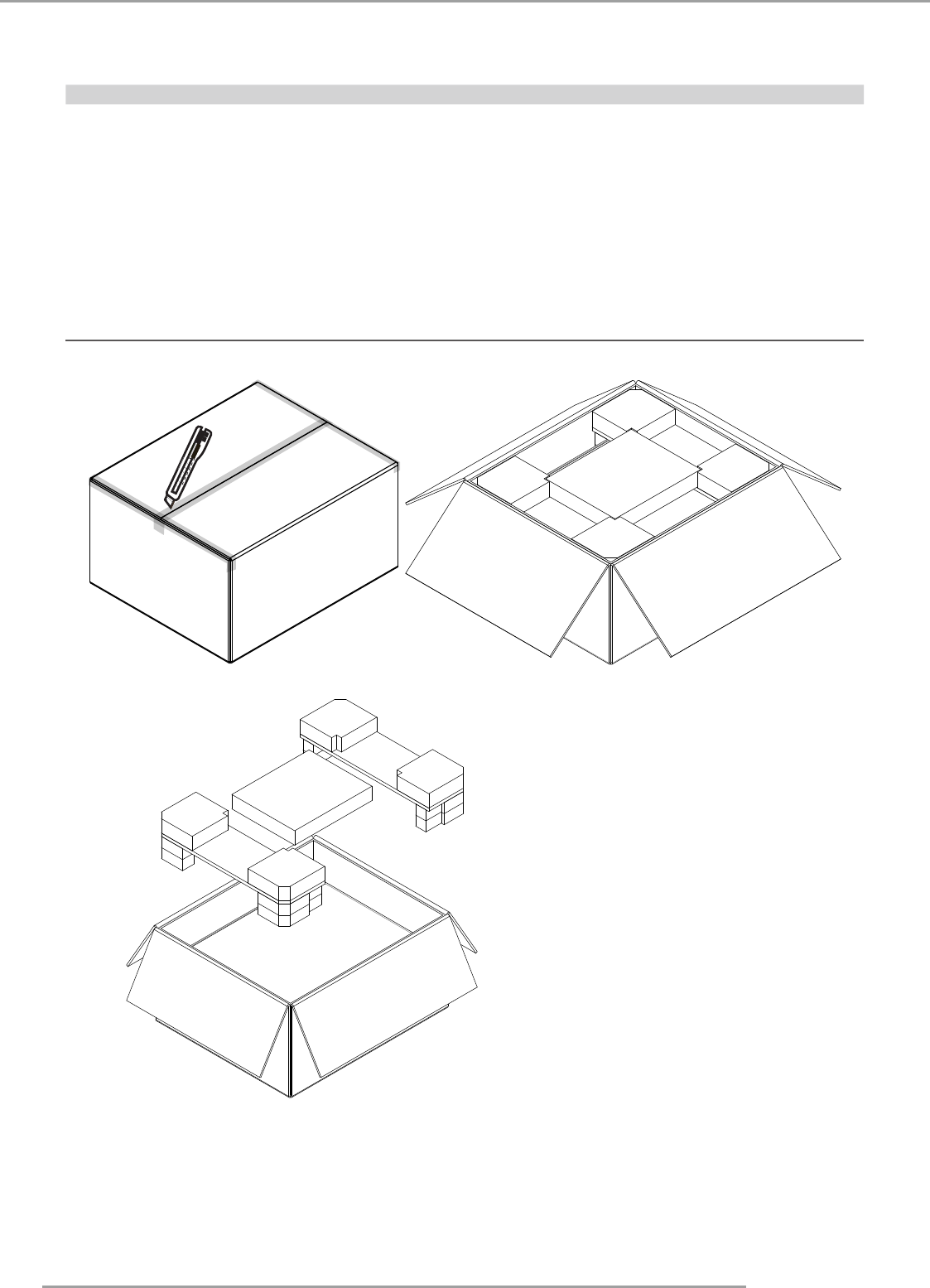

2.2 Unpacking the projector
1. Remove the tape around the carton box, then open the box.
2. Take out the foam upper the projector.
