24

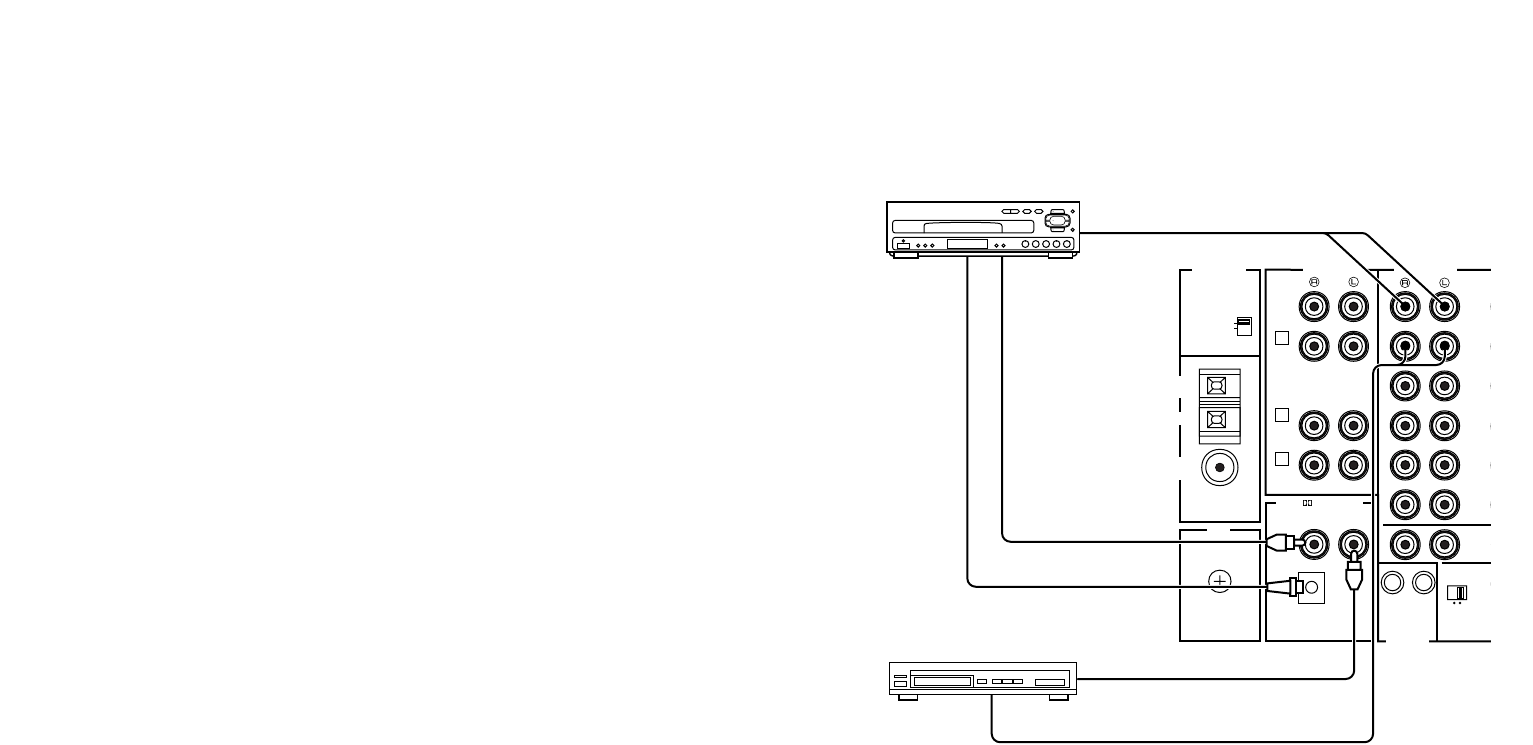

CONNECTING TO DIGITAL (OPTICAL AND COAXIAL)
JACKS
If your LD (DVD) player, TV/satellite tuner, etc. are equipped
with coaxial or optical digital audio signal output jacks, they can be
connected to this unit’s COAXIAL and/or OPTICAL digital signal
input jacks.
To make a connection between optical digital audio signal
jacks, remove the cover from each jack, and then connect them by
using a commercially available optical fiber cable that conforms to
EIAJ standards. Other cables might not function correctly.
Even if you connect an audio/video unit to the OPTICAL (or
COAXIAL) jack of this unit, you must keep the unit connected with
the same named analog audio signal jacks of this unit, because
digital signal cannot be recorded by a tape deck or VCR
connected to this unit, and digital signal also will not be output
from the AUDIO SIGNAL ROOM 2 OUT jacks. You can switch the
selection of input signals between “digital” and “analog” easily.
(See page 46 for details.)
NOTE: When connecting an audio/video unit to both of the digital
and analog jacks of this unit, make sure to connect to both jacks of
the same name.
NOTE: Be sure to attach the cover when the OPTICAL jack is not
being used, in order to protect the jack from dust.
NOTE: All digital audio signal input jacks are applicable to the
sampling frequency of 32 kHz, 44.1 kHz and 48 kHz.
PHONO
VIDEO
DVD/LD
TV/DBS
IN
VCR 1
OUT
IN
VCR 2
OUT
ROOM 2
OUT
1
CD
3
TAPE
PB
4
REC
OUT
TAPE(MD)
COAXIAL
OPTICAL
DVD/LD
IN OUT
DVD/LD
TV/DBS
FM
ANT
75Ω
UNBAL.
AM
ANT
GND
PCM/ DIGITAL IN
(AC
–
3 DIGITAL IN)
FREQUENCY
STEP
GND
PAL NTSC
VIDEO
MONITO
FM
50kHz
I00kHz
AM
9kHz
I0kHz
AUDIO SIGNAL
AUDIO SIGNAL
VIDEO S
REMOTE
CONTROL
COAXIAL
DIGITAL OUT
COAXIAL
DIGITAL OUT
OPTICAL
DIGITAL OUT
ANALOG OUT
ANALOG OUT
LD (DVD) player
TV/Satellite tuner
