63
CDX-M620/M670
M902
M901
#8
#8
#11
356
361
359
360
355
358
354
353
352
357
351
(supplied with 351)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

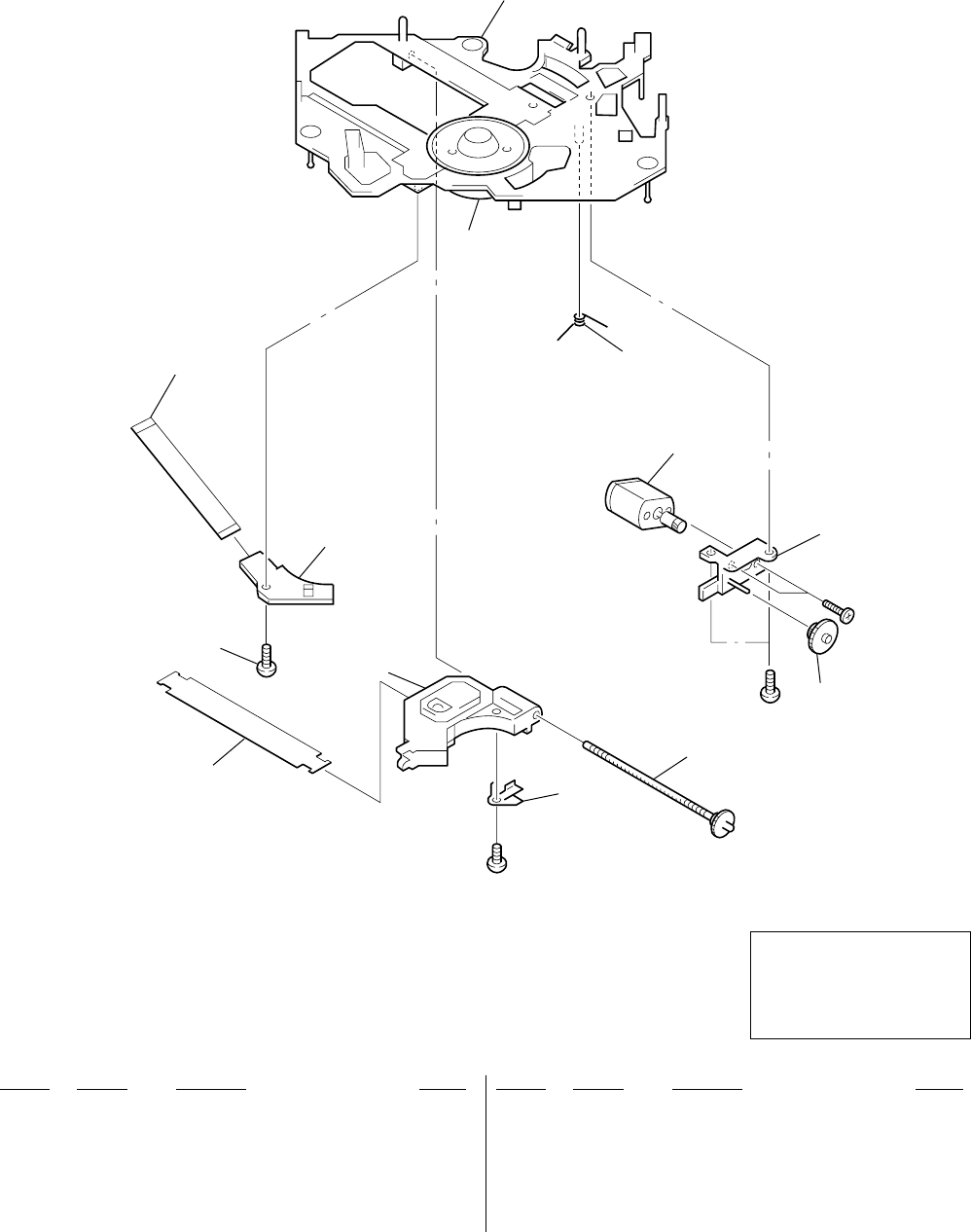

5-8. CD MECHANISM SECTION (3)
(MG-383Z-121//K)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
351 X-3378-480-1 CHASSIS (OP) ASSY (including M901)
352 3-040-029-01 SPRING (SL), TORSION
353 3-040-045-01 BASE (DRIVING)
354 3-040-194-01 GEAR (MIDWAY)
355 A-3301-983-A SHAFT (FEED) ASSY
356 1-676-707-11 PICK-UP FLEXIBLE BOARD
357 1-677-182-11 MOTOR FLEXIBLE BOARD
* 358 1-676-708-11 LIMIT SW BOARD
359 3-909-607-01 SCREW
0360 8-820-103-03 PICK-UP, OPTICAL KSS-720A/K1RP
361 3-040-030-01 SPRING (FEED), PLATE
M902 A-3301-985-A MOTOR ASSY, SLED (SLED)
