57
CDX-M620/M670
63
64
65
66
52
#2
#12
#2
#5
#5
#5
53
51
54
55
58
59
60
57
56
62
58
61
#2
#2
#2
#2
#4
#5
#5
#5
M601

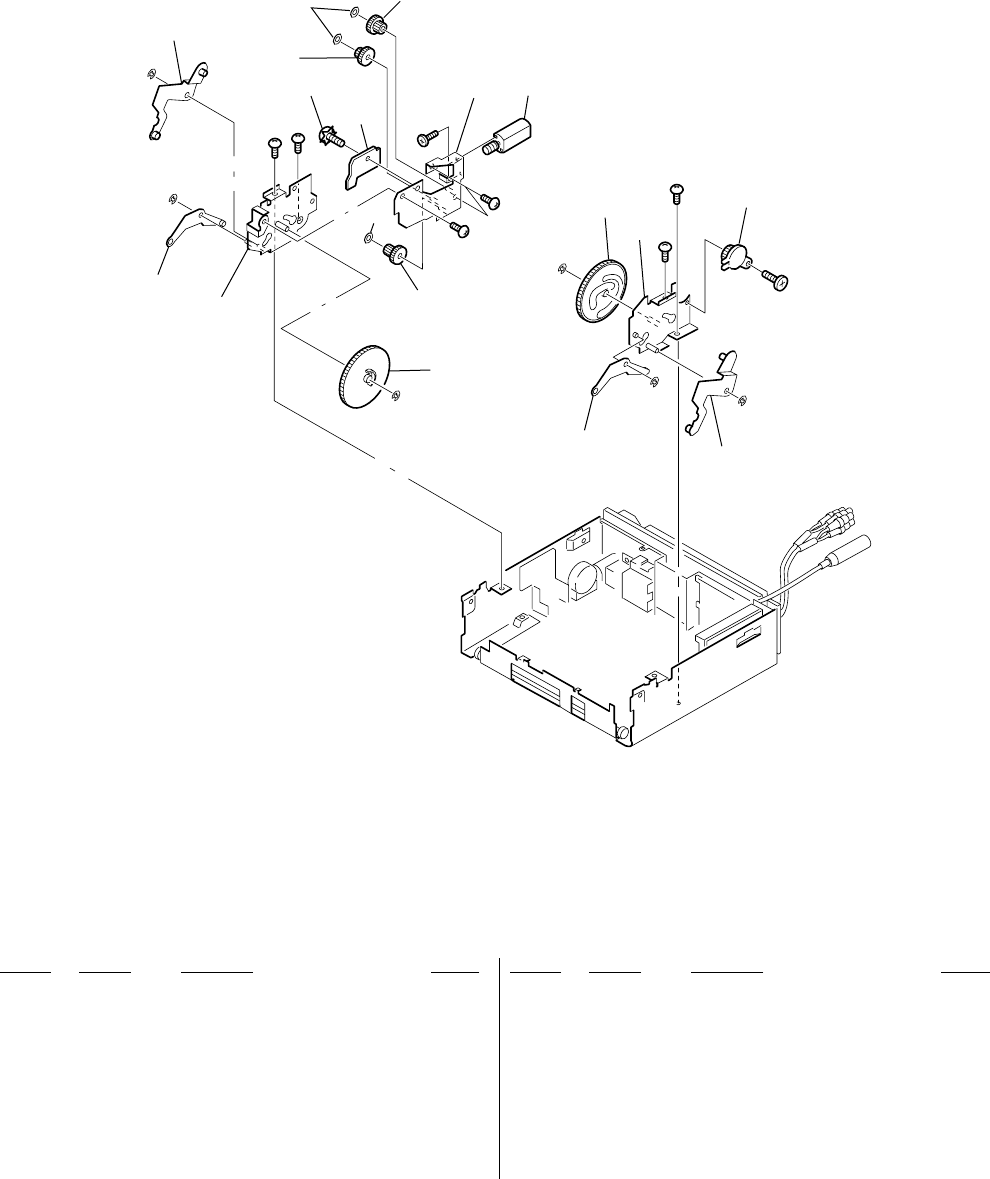

5-2. CAM SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
51 3-230-495-01 CAM (L)
52 X-3380-549-1 ARM (B-R) ASSY
53 X-3380-544-1 BRACKET (L) ASSY
54 X-3380-548-1 ARM (B-L) ASSY
55 X-3380-546-1 ARM (A-L) ASSY
56 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
57 3-045-714-01 GEAR (B)
58 3-342-940-01 WASHER (M)
59 3-045-713-01 GEAR (A)
* 60 1-681-375-11 SW BOARD
* 61 X-3378-711-1 BRACKET (MOTOR) ASSY
62 3-230-494-01 GEAR (C)
63 3-230-496-01 CAM (R)
64 X-3380-545-1 BRACKET (R) ASSY
65 3-030-909-11 DAMPER, OIL
66 X-3380-547-1 ARM (A-R) ASSY
M601 X-3378-769-1 MOTOR ASSY (OPEN/CLOSE)
