59
CDX-M620/M670
151
152
153
154
155
156
157
158
159
161
160
162
LCD1
not supplied
front panel (DSPL) ass
163
164
165
166
168
167
169
170
171
173
172
174
178
175
176
177
#6
#6
(KEY board)

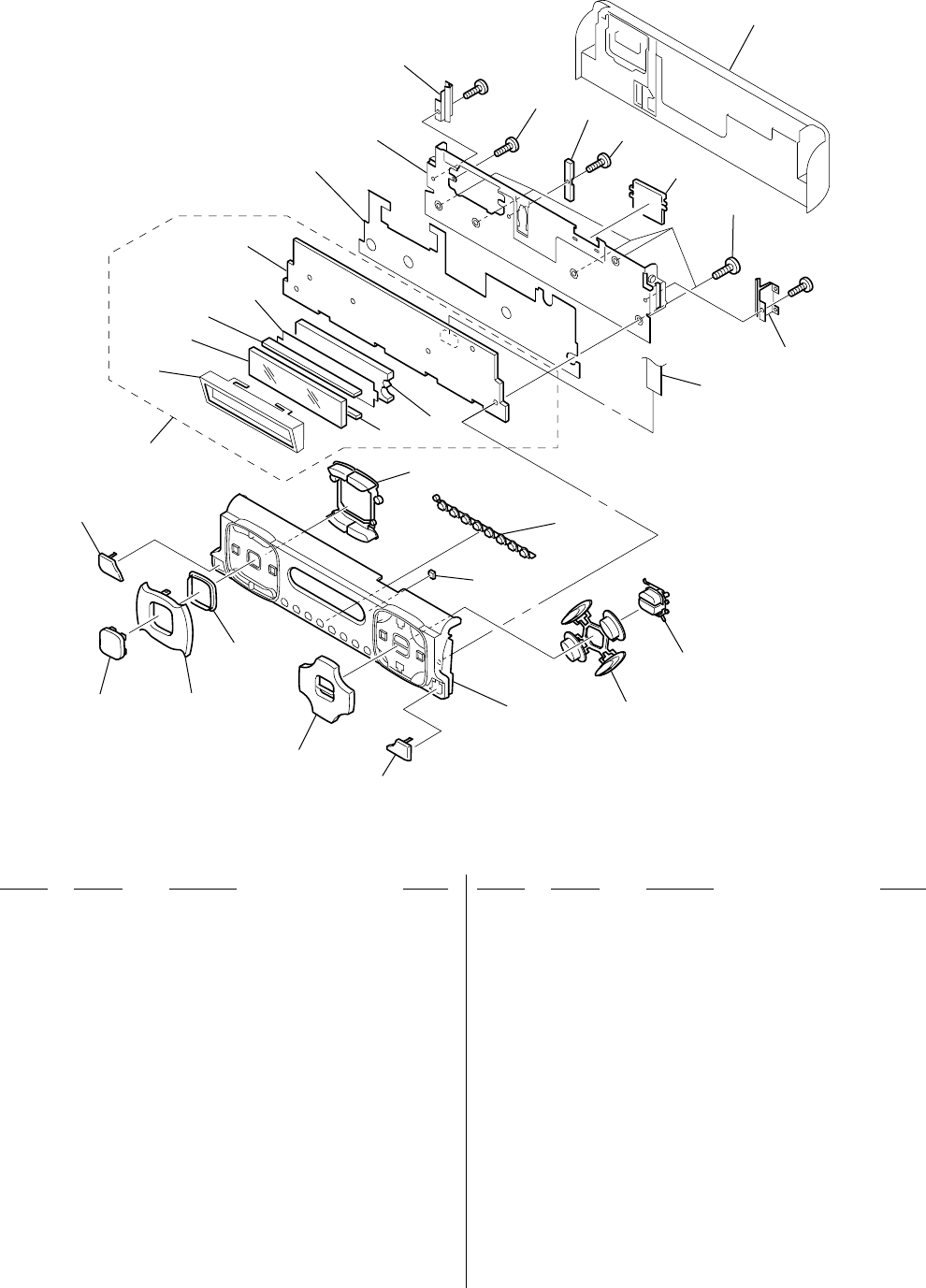

5-4. FRONT PANEL (KEY) ASSY SECTION
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
151 X-3380-536-1 PANEL (KEY) SUB ASSY, FRONT (M670:US)
151 X-3380-537-1 PANEL (KEY) SUB ASSY, FRONT (M620)
151 X-3380-539-1 PANEL (KEY) SUB ASSY, FRONT (AEP,UK,E)
152 3-230-483-01 BUTTON (ENTER)
153 3-230-482-01 BUTTON (EQ7)
154 3-230-480-01 BUTTON (EJECT)
155 3-230-481-01 BUTTON (SEEK)
156 3-230-485-01 PLATE (RING), LIGHT GUIDE
157 3-230-477-01 BUTTON (+/–)
158 3-230-478-01 BUTTON (SOURCE)
159 3-230-484-01 BUTTON (CLOSE)
160 3-231-433-01 CUSHION (ELECTROSTATIC)
161 3-230-398-01 BUTTON (6 KEY) (US)
161 3-230-398-11 BUTTON (6 KEY) (AEP,UK,E)
162 3-230-479-01 BUTTON (MODE) (US)
162 3-230-479-11 BUTTON (MODE) (AEP,UK,E)
* 163 A-3283-164-A KEY BOARD, COMPLETE (US)
* 163 A-3283-176-A KEY BOARD, COMPLETE (AEP,UK,E)
* 164 3-230-486-01 HOLDER (LCD-KEY)
165 1-694-808-21 CONDUCTIVE BOARD, CONNECTION
166 1-694-807-21 CONDUCTIVE BOARD, CONNECTION
* 167 3-230-487-01 PLATE (LCD-KEY), LIGHT GUIDE
* 168 3-230-488-01 SHEET (LCD-KEY), DIFFUSION
* 169 3-230-415-01 SHEET (KEY), INSULATING
170 X-3380-543-1 PANEL ASSY, BASE
171 X-3380-560-1 SPRING (DETOUCH L) ASSY
172 3-063-745-11 SCREW (+P M2 B TITE)
173 3-230-490-01 GUIDE (DETOUCH)
174 2-134-636-31 SCREW (M1.7X2.5)
175 3-230-416-01 SCREW
176 X-3380-561-1 SPRING (DETOUCH R) ASSY
177 1-681-390-11 FLEXIBLE BOARD
178 3-230-491-01 GUIDE (FLEXIBLE)
LCD1 1-804-349-11 DISPLAY PANEL, LIQUID CRYSTAL
