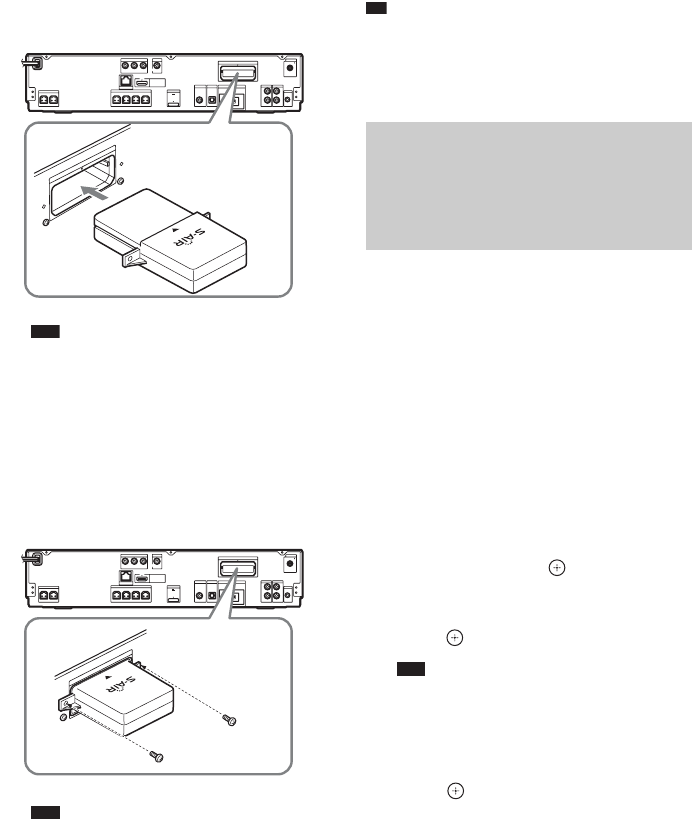

2 Insert the wireless transmitter.
Note
• Insert the wireless transmitter with the S-AIR
logo facing up.
• Insert the wireless transmitter so that the V
marks are aligned.
• Do not insert anything other than the wireless
transmitter into the EZW-T100 slot.
3 Make sure to use the same screws to
secure the wireless transmitter.
Note
• Do not use other screws to fasten the wireless
transmitter.
To insert the wireless
transceiver into the S-AIR sub
unit
For details on installing the wireless transceiver
into the S-AIR sub unit, such as a surround
amplifier or S-AIR receiver, see the operating
instructions of the S-AIR sub unit.
Ti
p
When you change the S-AIR configuration, Sony
recommends that you perform [Auto Calibration].
For details, see “Calibrating the Appropriate Settings
Automatically” (page 69).
Simply by matching the ID of the unit and the
S-AIR sub unit, you can establish sound
transmission.
To set the ID of the unit
1 Press "/1 on the unit.
The system turns on.
2 Press SYSTEM MENU.
3 Press X/x repeatedly until “S-AIR
MENU” appears in the front panel
display, then press or c.
4 Press X/x repeatedly until “S-AIR ID”
appears in the front panel display, then
press or c.
Note
When the wireless transmitter is not inserted in
the unit, “S-AIR ID” cannot be selected.
5 Press X/x to select the desired ID.
You can select any ID (A, B, or C).
6 Press .
The setting is made.
7 Press SYSTEM MENU.
The system menu turns off.
8 Set the S-AIR sub unit to the same ID.
Sound transmission is established as
follows (example):
AUDIO
DIGITAL IN
DMPORT
HDMI OUT
COMPONENT VIDEO OUT
VIDEO OUT
AUDIO IN AUDIO IN
A. CAL MIC
ECM-AC2
SPEAKER
Y
P
B
/ C
B
P
R
/ C
R
COAXIAL
OPTICAL
R
L
R
L
FRONT L SUR R
CENTERSUBWOOFER
EXT
LAN(100)
DC5V
700mA MAX
TV
TV
DIGITAL IN
SAT/CABLE
EZW-T100
DC5V
500mA MAX
FRONT R
SUR L
SPEAKER
ANTENNA
FM
COAXIAL 75
E
ZW
-T
100
Rear of the unit
AUDIO
DIGITAL IN
DMPORT
HDMI OUT
COMPONENT VIDEO OUT
VIDEO OUT
AUDIO IN AUDIO IN
A. CAL MIC
ECM-AC2
SPEAKER
Y
P
B
/ C
B
P
R
/ C
R
COAXIAL
OPTICAL
R
L
R
L
FRONT L SUR R
CENTERSUBWOOFER
EXT
LAN(100)
DC5V
700mA MAX
TV
TV
DIGITAL IN
SAT/CABLE
EZW-T100
DC5V
500mA MAX
FRONT R
SUR L
SPEAKER
ANTENNA
FM
COAXIAL 75
E
Z
W
-T
1
0
0
Rear of the unit
Establishing sound
transmission between the unit
and S-AIR sub unit
(ID setting)
For the surround amplifier
For the S-AIR receiver
