Using an S-AIR Product
The unit is compatible with the S-AIR function
(page 110), which allows sound transmission
between S-AIR products.
When you purchase the S-AIR product, you
need to perform the following settings to
establish the sound transmission.
About S-AIR products
There are two types of S-AIR product.
• S-AIR main unit (this unit): This is for
transmitting sound. You can use up to three
S-AIR main units. (The number of usable
S-AIR main units depends on the use
environment.)
• S-AIR sub unit: This is for receiving sound.
– Surround amplifier: You can enjoy
surround speaker sound wirelessly.
– S-AIR receiver: You can enjoy system
sound in another room.
To make use of the S-AIR function, you need to
insert the wireless transmitter into the unit and
the wireless transceiver into the S-AIR sub unit.
Note
• When you insert the wireless transmitter/transceiver,
make sure that the AC power cord (mains lead) is not
connected to a wall outlet (mains).
• Do not touch the terminals of the wireless transmitter/
transceiver.
To insert the wireless transmitter
into the unit
1 Remove the screws and detach the slot
cover.
Note
• Remove the screws from the slot cover bearing
the caution mark. Do not remove other screws.
• The slot cover is no longer necessary; however,
keep it after detaching.

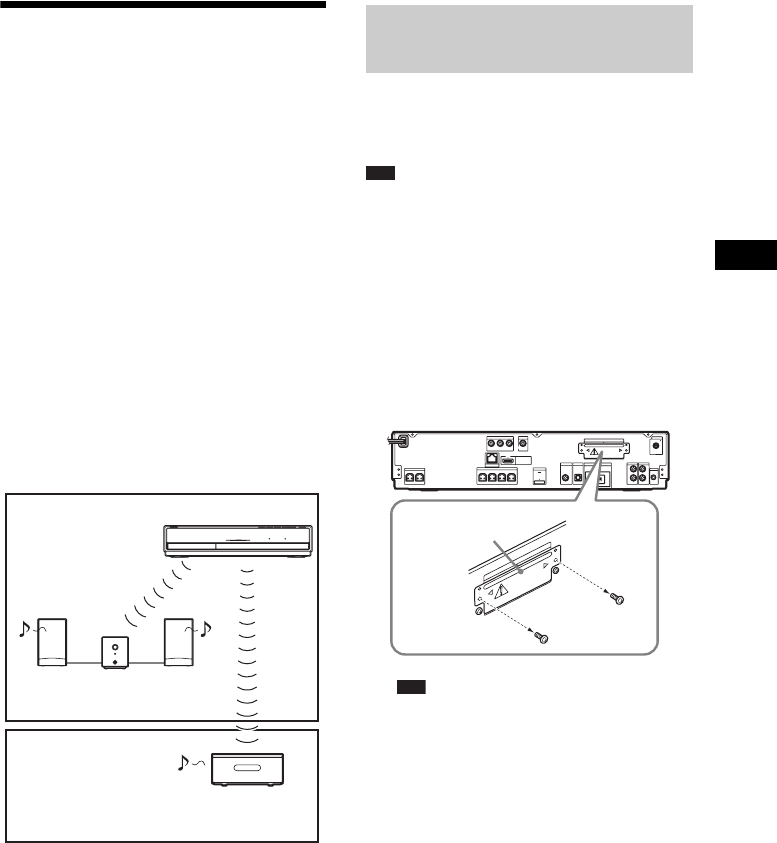

S-AIR sub unit
(surround amplifier)
S-AIR main unit
S-AIR sub unit
(S-AIR receiver)
(not supplied)
Room A
Room B
Inserting the wireless
transmitter/transceiver
AUDIO
DIGITAL IN
DMPORT
HDMI OUT
COMPONENT VIDEO OUT
VIDEO OUT
AUDIO IN AUDIO IN
A. CAL MIC
ECM-AC2
SPEAKER
Y
P
B
/ C
B
P
R
/ C
R
COAXIAL
OPTICAL
R
L
R
L
FRONT L SUR R
CENTERSUBWOOFER
EXT
LAN(100)
DC5V
700mA MAX
TV
TV
DIGITAL IN
SAT/CABLE
EZW-T100
DC5V
500mA MAX
FRONT R
SUR L
SPEAKER
ANTENNA
FM
COAXIAL 75
EZW-T100
Rear of the unit
Slot cover
