we can get it in the upper frequency range. Let's start with around 1 uF for the capacitor and see what

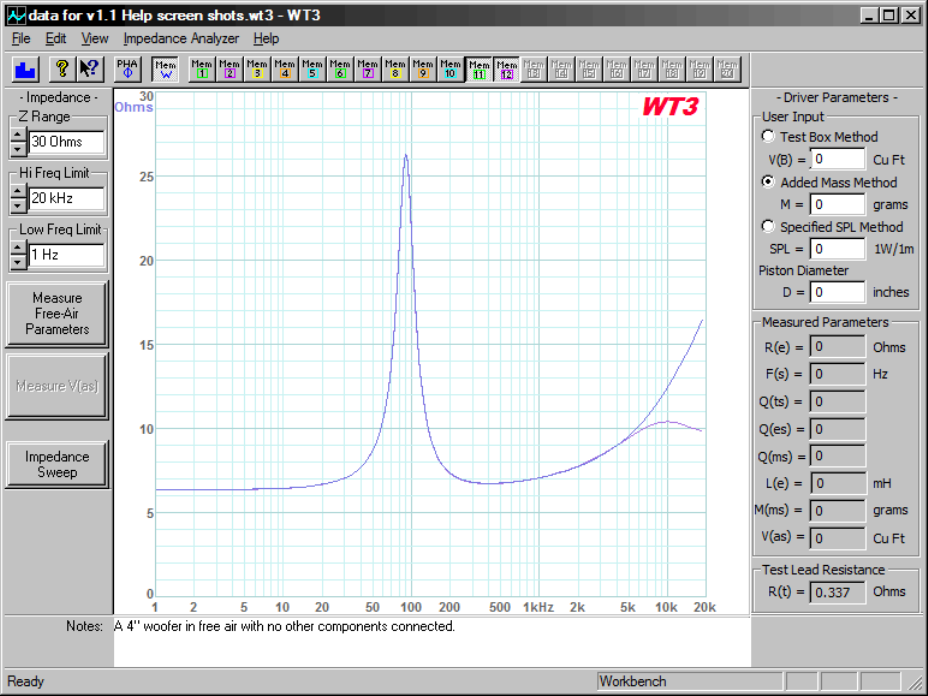

we get for a new impedance response. The screen below shows the new impedance response in purple
with the original (uncompensated) response in blue. Notice that the impedance has only been reduced
above 5 kHz. This is because our capacitor value is too low. Let's increase the capacitor and see what
happens.
