Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
XR-C7500R/C7500RX
**************
HARDWARE LIST
**************
#1 7-685-793-09 SCREW +PTT 2.6X8 (S)
#2 7-621-772-20 SCREW +B 2X5
#3 7-685-792-09 SCREW +PTT 2.6X6 (S)
#4 7-627-553-28 SCREW, PRECISION +P 2X2.5
#5 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#6 7-624-104-04 STOP RING 2.0, TYPE-E
#7 7-627-553-17 PRECISION SCREW +P 2X2 TYPE 3
#8 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT
#9 7-685-795-09 SCREW +PTT 2.6X12 (S)
#10 7-685-791-09 SCREW +PTT 2.6X5 (S)
************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
1-418-812-11 WIRELESS REMOTE COMMANDER (RM-X91)
(E)
1-473-067-71 WIRED REMOTE COMMANDER (RM-X4S)
(EXCEPT E)
3-034-360-01 LABEL (DSPL) (2) (for RM-X4S) (EXCEPT E)
3-044-623-01 HOLDER, BATTERY (for RM-X91) (E)
3-046-400-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH,
SWEDISH, PORTUGESE) (AEP, UK)
3-046-400-21 MANUAL, INSTRUCTION (FRENCH, GERMAN,
DUTCH, ITALIAN, GREEK) (AEP)
3-046-400-31 MANUAL, INSTRUCTION (GERMAN) (German)
3-046-401-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH, SWEDISH, PORTUGESE) (AEP, UK)
3-046-401-21 MANUAL, INSTRUCTION, INSTALL (FRENCH,
GERMAN, DUTCH, ITALIAN, GREEK)
(AEP, German)
3-046-489-11 MANUAL, INSTRUCTION (ENGLISH, SPANISH,
CHINESE) (E)
3-046-490-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH,
SPANISH, CHINESE) (E)
X-3378-490-1 CASE (PANEL) ASSY (for FRONT PANEL)
************************************************************

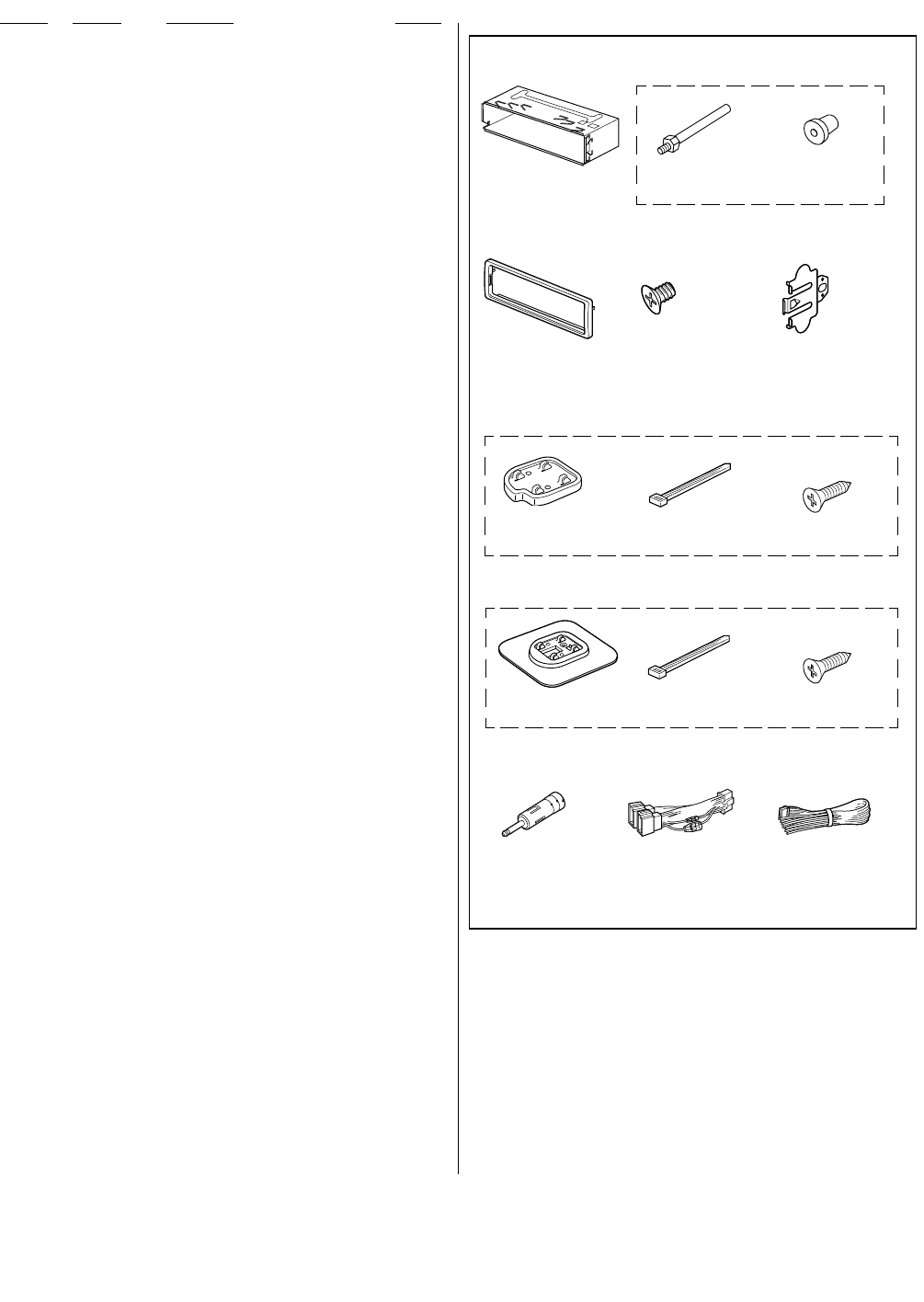

PARTS FOR INSTALLATION AND CONNECTIONS
**************************************
501 X-3373-602-1 FRAME ASSY
502 X-3366-405-1 SCREW ASSY (EXP), FITTING
503 3-040-979-01 COLLAR
504 3-934-325-01 SCREW, +K (5X8) TAPPING
505 3-041-000-01 SPRING, FITTING
506 X-3369-817-1 BRACKET ASSY (for RM-X4S) (AEP, UK)
507 7-685-248-14 SCREW +KTP 3X12 TYPE4
508 X-3373-432-1 BRACKET ASSY (for RM-X4S) (AEP, German)
509 1-465-459-21 ADAPTER, ANTENNA (EXCEPT E)
510 1-776-527-71 CORD (WITH CONNECTOR) (ISO) (POWER)
(EXCEPT E)
511 1-776-207-72 CORD (WITH CONNECTOR) (POWER) (E)
