XR-C7500R/C7500RX

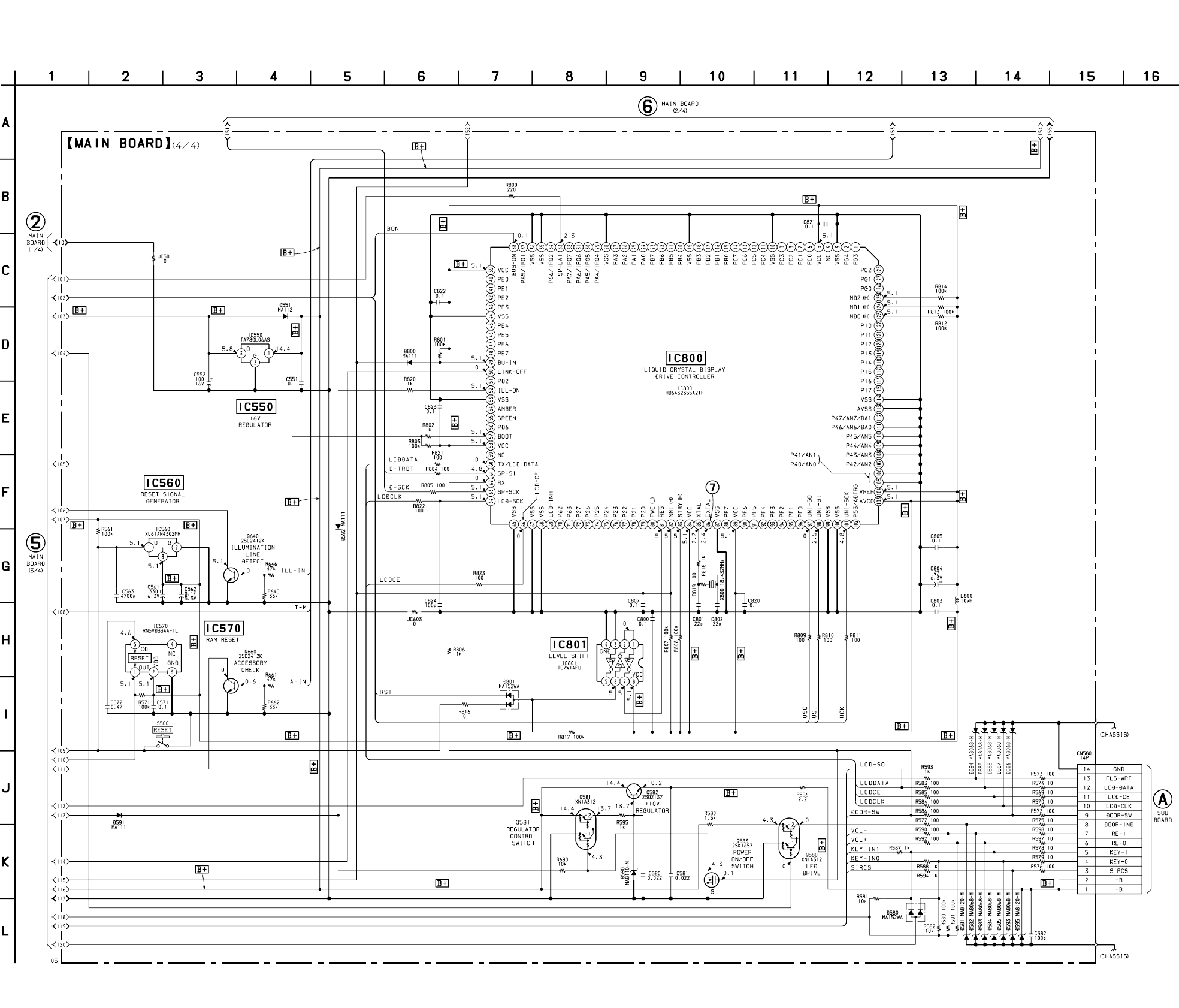

7-11. SCHEMATIC DIAGRAM – MAIN Board (4/4) – • See page 29 for Waveforms. • See page 32 for IC Block Diagrams.
(Page 24)
(Page
26)
(Page 25)
(Page 28)
