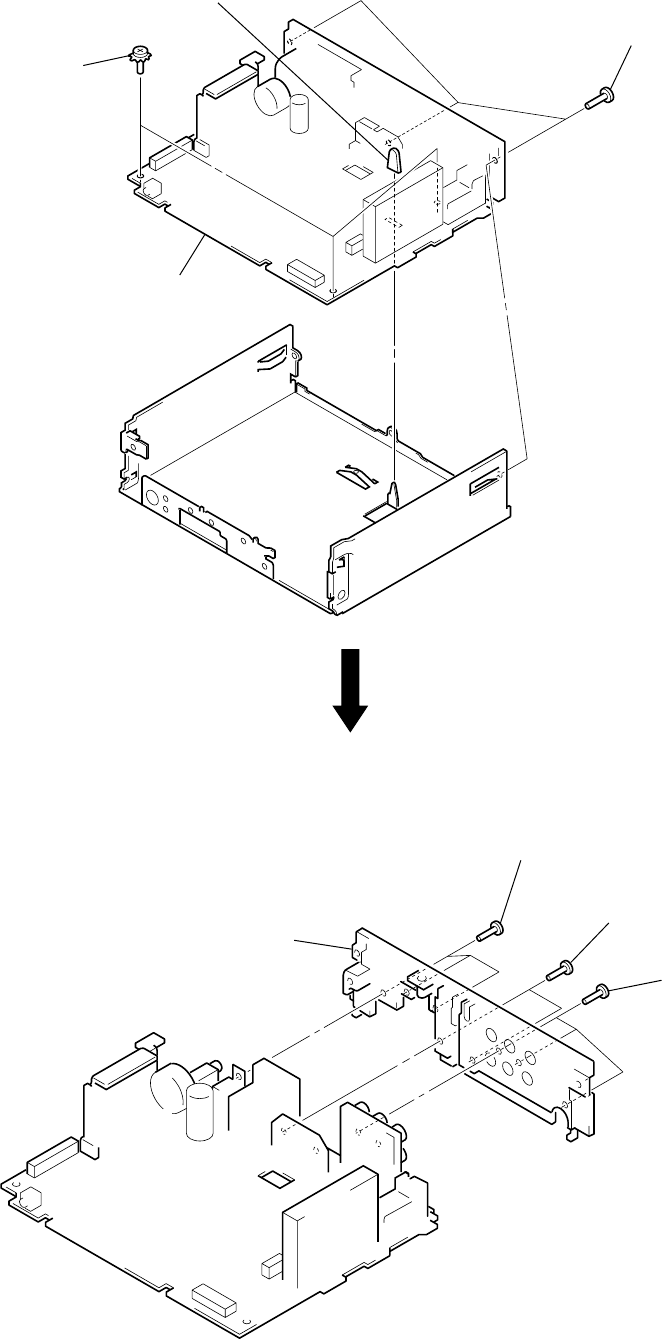

MAIN BOARD
HEAT SINK (2P)
2 three ground point
screws
3 rubber cap (25)
1 three screws
(PTT2.6 × 8)
4 main board
1 three screws
(PTT2.6 × 8)
2 two screws
(PTT2.6 × 12)
1 three screws
(PTT2.6 × 8)
3 heat sink (2P)
