XR-C7500R/C7500RX

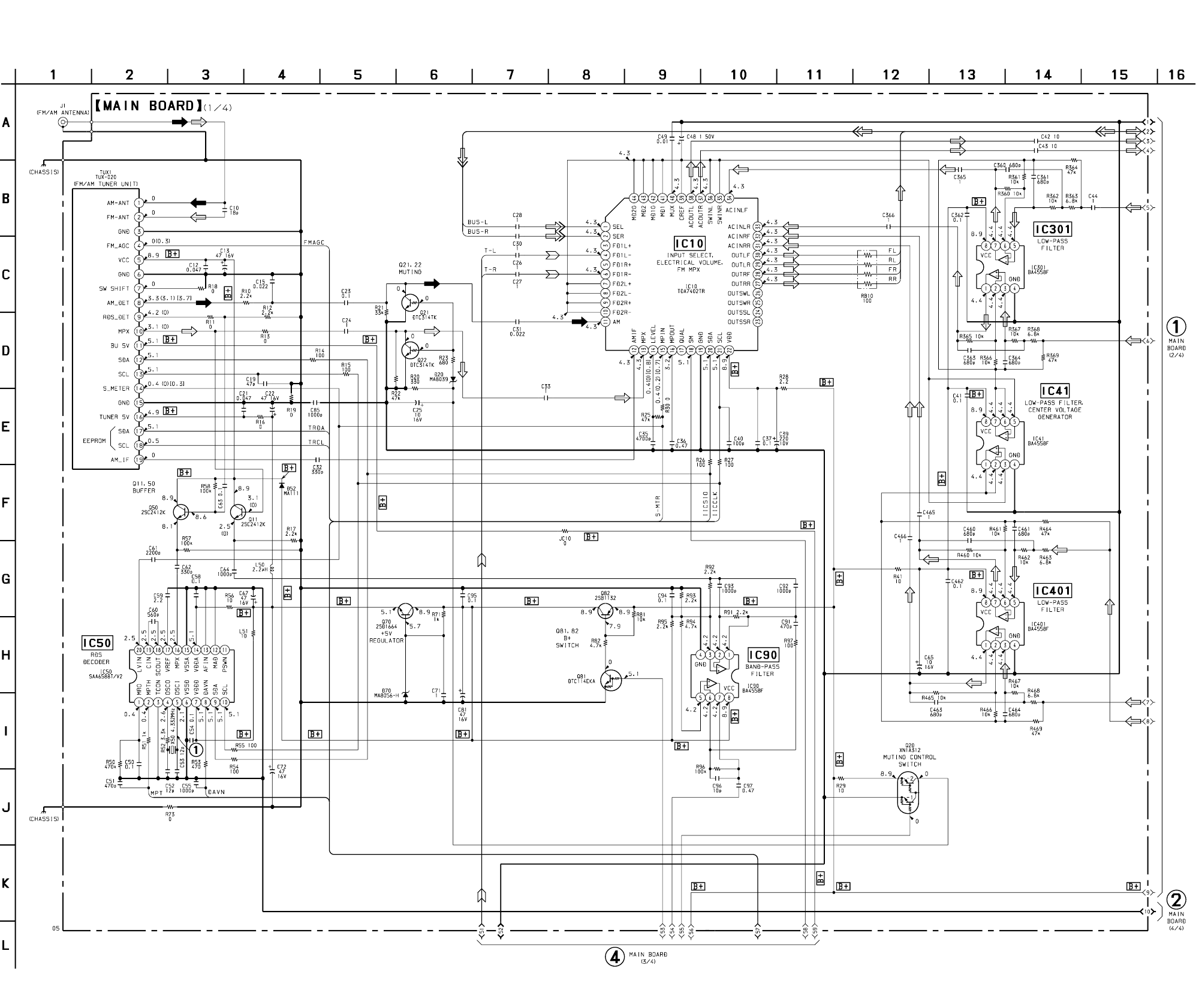

7-8. SCHEMATIC DIAGRAM – MAIN Board (1/4) – • See page 29 for Waveforms. • See page 32 for IC Block Diagrams.
(Page 26)
(Page 25)
(Page 27)
