XR-C7500R/C7500RX

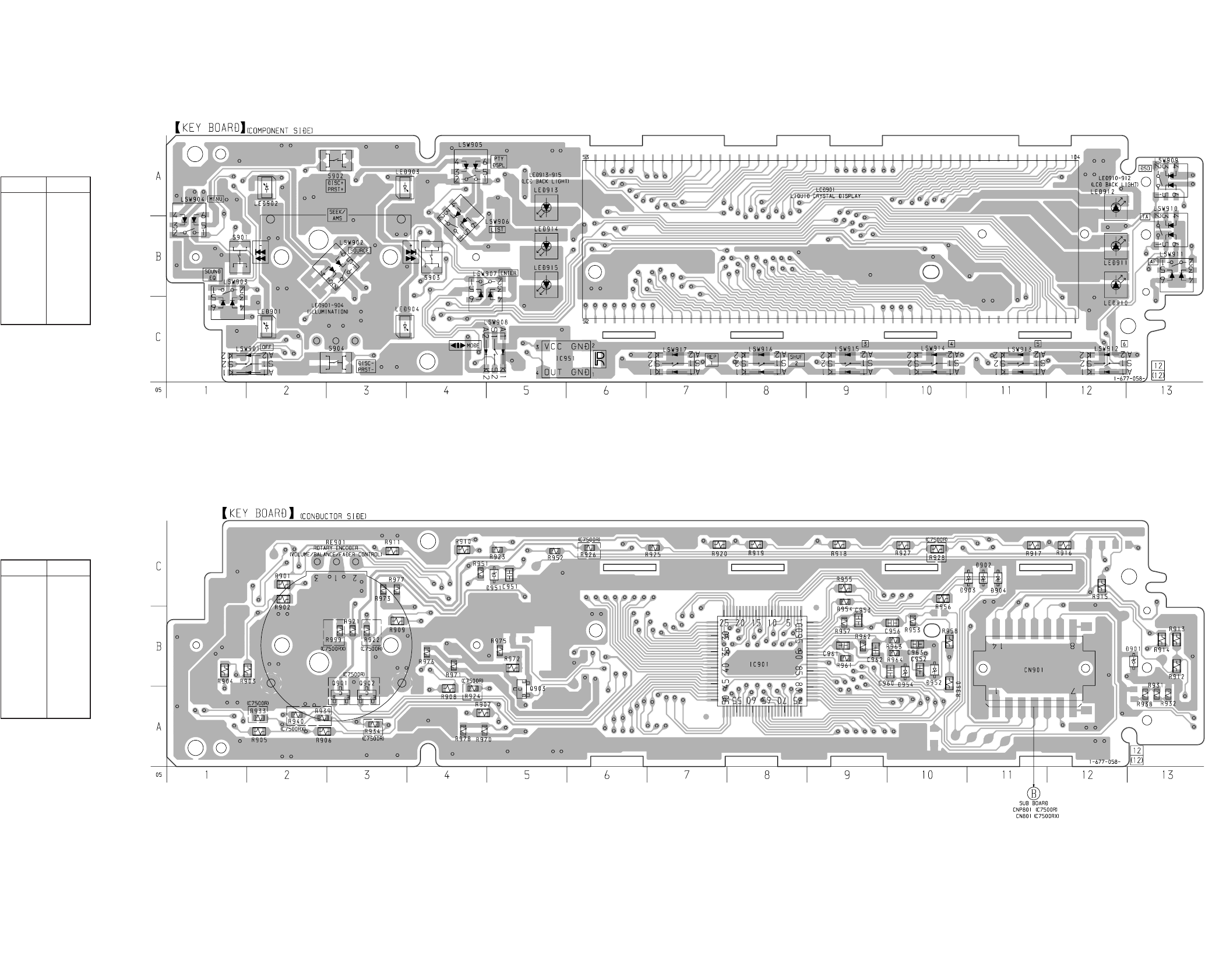

7-14. PRINTED WIRING BOARD – KEY Board –
• Semiconductor
Location
(Component Side)
Ref. No. Location
IC951 C-5
LED901 C-2
LED902 A-2
LED903 A-3
LED904 C-3
LED910 B-12
LED911 B-12
LED912 A-12
LED913 A-5
LED914 B-5
LED915 B-5
• Semiconductor
Location
(Conductor Side)
Ref. No. Location
D901 B-13
D902 C-11
D903 C-11
D904 C-11
D951 C-5
D952 B-10
D954 B-10
IC901 B-8
Q901 A-3
Q902 A-3
Q903 A-5
(Page 28)
