SECTION 3
DISASSEMBLY
SUB PANEL ASS’Y
MECHANISM DECK (MG-25G-136)

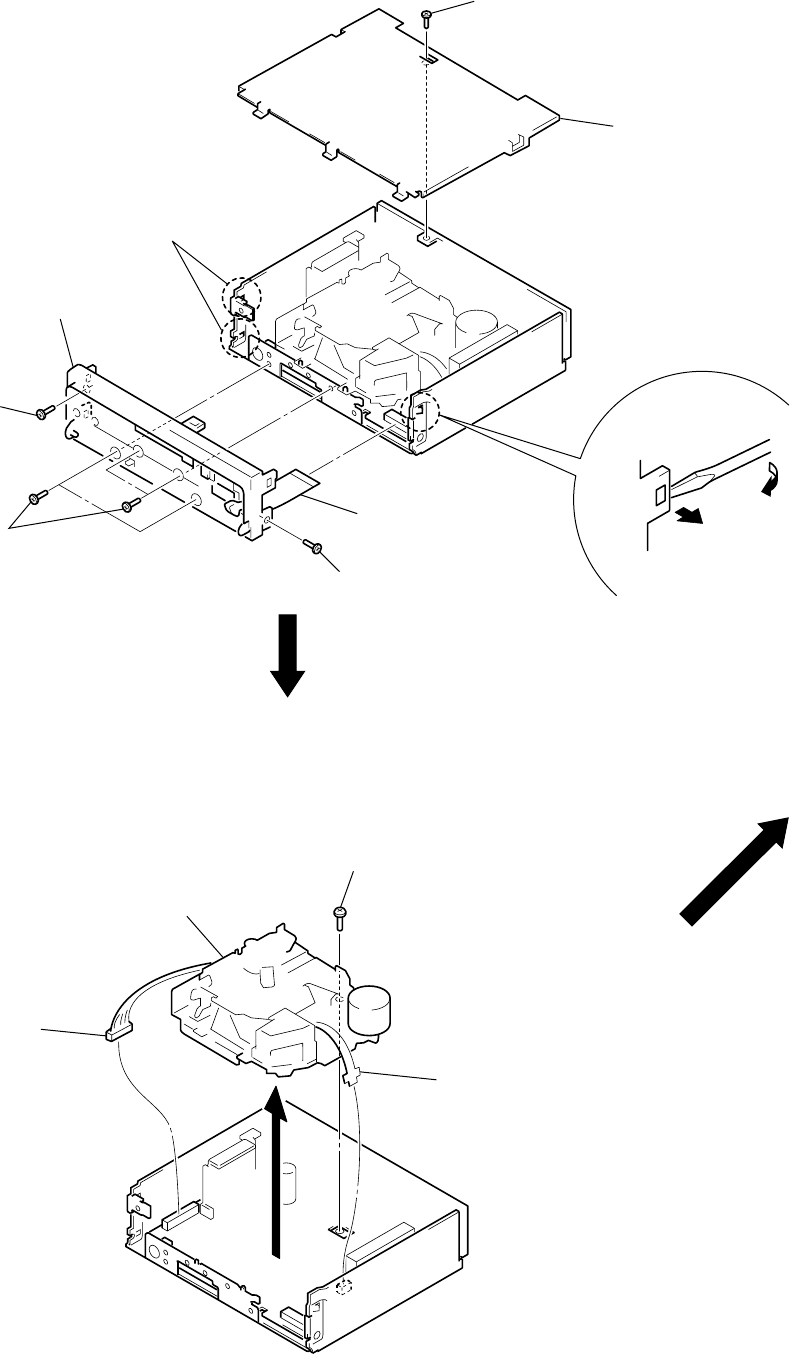

Note: Follow the disassembly procedure in the numerical order given.
4 two claws
1 screw (PTT2.6 × 5)
2 cover
3 screw
(PTT2.6 × 6)
6 sub panel ass’y
3 four screws
(PTT2.6 × 6)
3 screw (PTT2.6 × 6)
5 flexible flat cable
(CN580)
4 claw
3 screw (PTT2.6 × 6)
4 mechanism deck
(MG-25G-136)
1 flexible boar
d
(CN250)
2 connector
(CN201)
