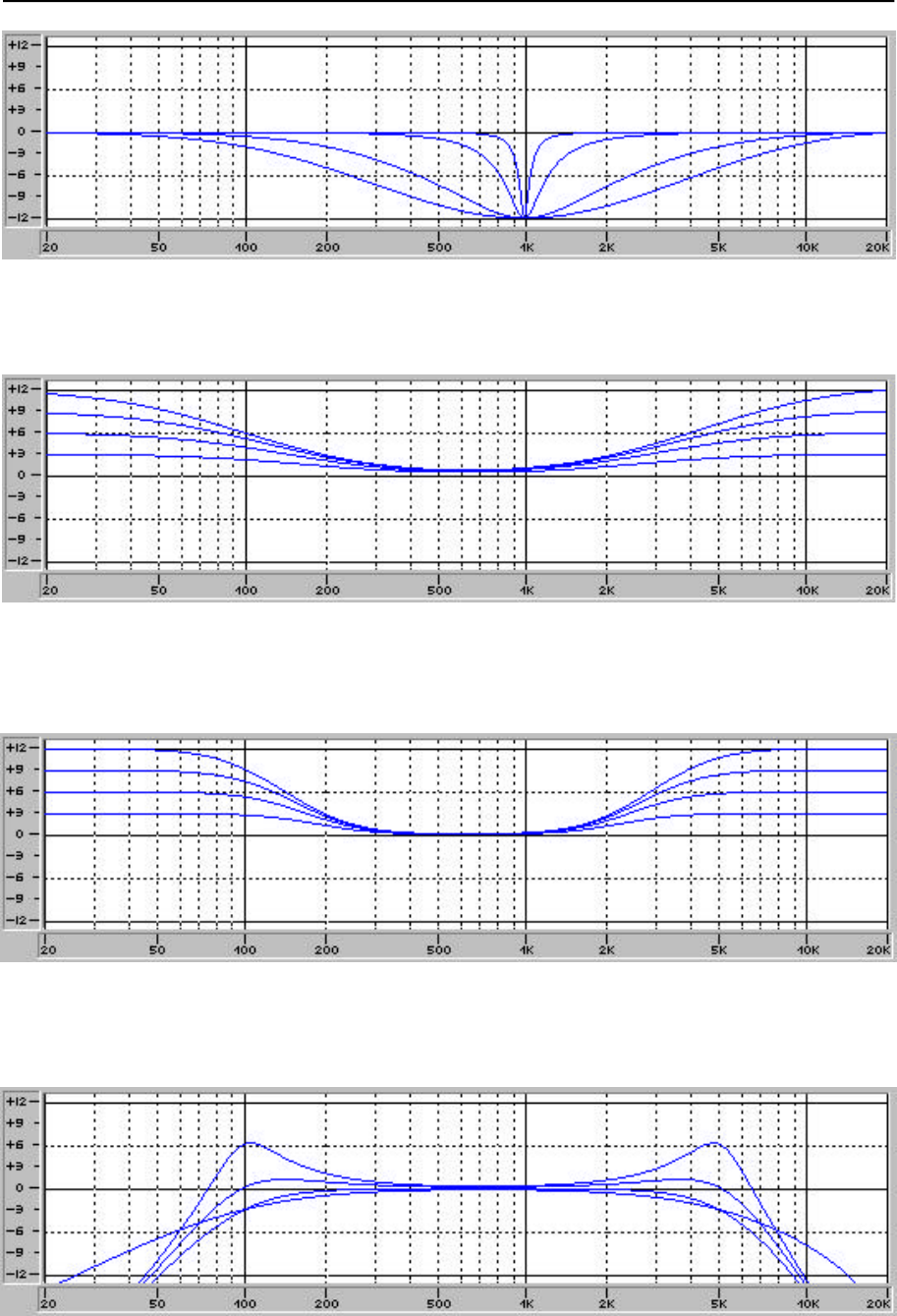

PEQ: f = 1kHz, Gain = -12dB Q = 0.5, 1.0, 5.0, 20.0
Low Shelving Filter (LOSLV): f = 200Hz, Slope = 6dB Gain = +3dB, +6dB, +9dB, +12dB
High Shelving Filter (HISLV): f = 2000Hz, Slope = 6dB Gain = +3dB, +6dB, +9dB, +12dB
Low Shelving Filter (LOSLV): f = 200Hz, Slope = 12dB, Gain = +3dB, +6dB, +9dB, +12dB
High Shelving Filter (HISLV): f = 2000Hz, Slope = 12dB, Gain = +3dB, +6dB, +9dB, +12dB
Hi-Pass Filter (HIPASS): f = 100Hz, Slope = 6dB, 12dB Q = 0.7, 1.0, 2.0
Lo-Pass Filter (LOPASS): f = 5000Hz, Slope = 6dB, 12dB Q = 0.7, 1.0, 2.
PARAMETERS
8-5
