Chapter 3 - Operation
10
Chapter 3 - Operation
Front Panel

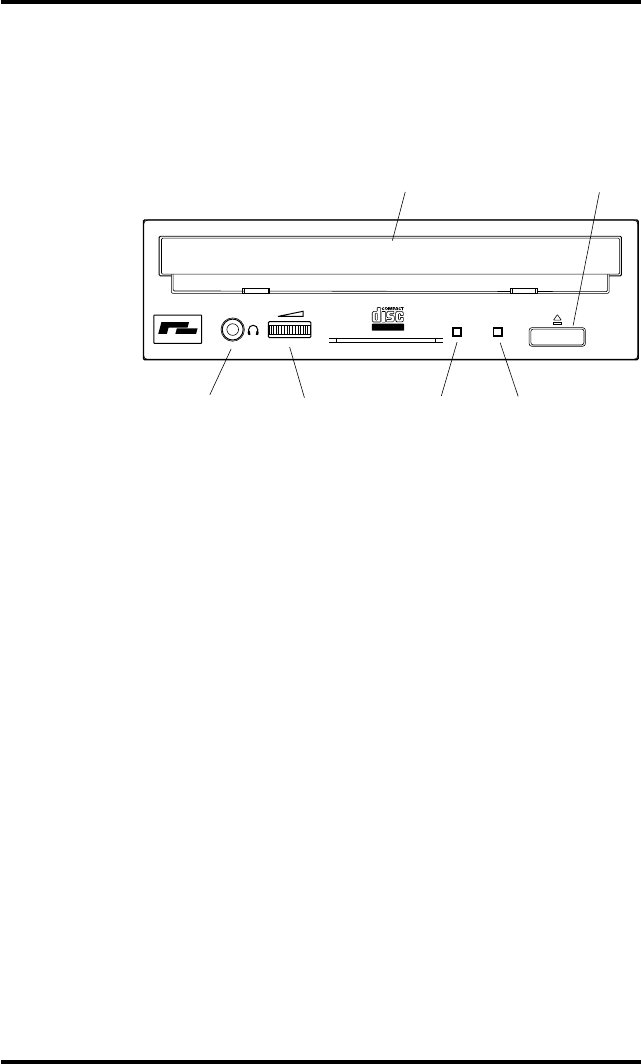

1 Disc tray
The disc is inserted and ejected here. Pressing the eject button will
open the tray.
2 Headphone jack
This stereo mini jack allows you to connect headphones and listen to
audio.
3 Headphone volume control
This control adjusts the volume level of the headphone output. Rotat-
ing the control clockwise will increase the volume level.
4 ON/DISC LED
This indicator lights up in orange when the CDR200t is powered on,
and lights up in green when the CDR200t contains a disc.
5 READ/WRITE LED
This indicator lights up in green when data is being read, and flashes
when data is being accessed. It also lights up in orange when data is
being recorded on a disc.
6 Eject button
This button is used to open or close the tray.
