9-47
DFP-3000

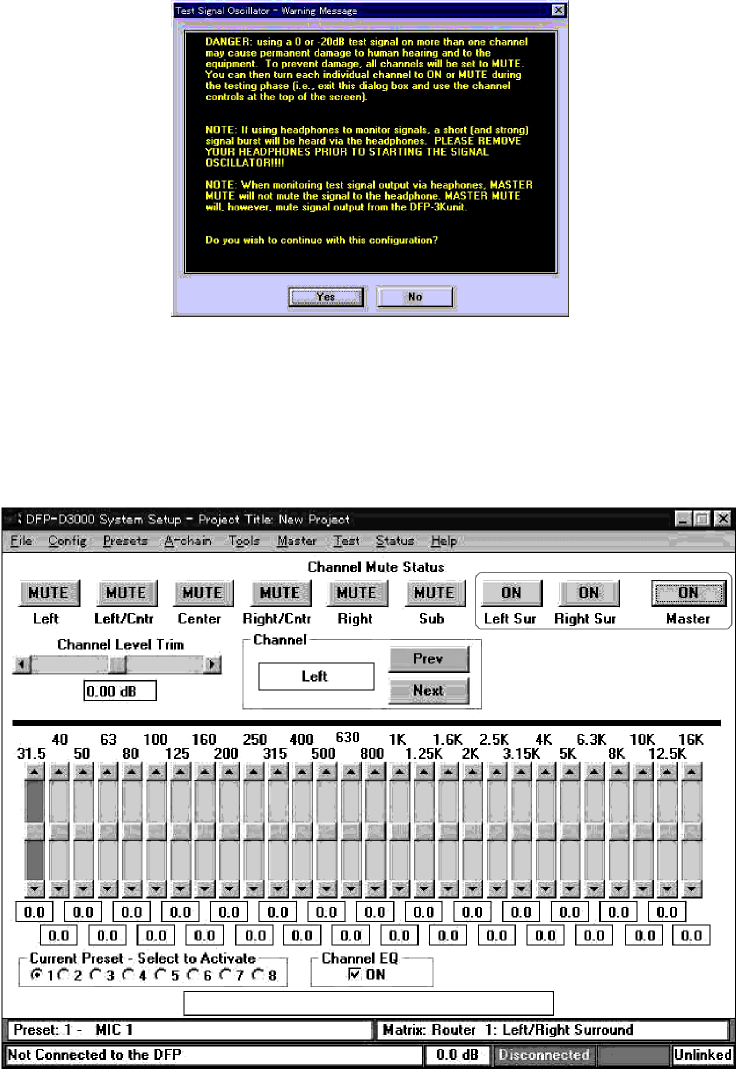

Fig. 5. Warning Message When the Oscillator is set to ON
8. After setting the oscillator, select “EXIT” at the screen shown in Fig. 4 to exit the oscillator screen.
At this time, the audio output and master output of each channel on the channel adjustment screen
will be muted. As shown in Fig. 6, press the Surround channel and master output buttons, and set the
outputs to “ON”.
Fig. 6. Channel Screen Settings After Oscillator is Turned ON
9. Using the “Prev” and “Next” buttons at (1) on the screen shown in Fig. 1, select the “Surround Left”
and “Surround Right” as the channels to be set. (Set the display in the white frame to “Surround Left”
and “Surround Right”). The screen changes to that shown in Fig. 7.
Change channel mute status to "ON" from
"MUTE" by pushing these three buttons
Adjustment the level with this condition.
