9-15
DFP-3000
9.5.5 Connections for Using AUX2 Input
Connect Pins 12 (GND) and 14 (sense 0) of the J6 connector of DA20.
Connect Pin 1 (Control 0 output) of the J6 connector of DA20 to Pin 35 (Lip _, AUX1 Fallback input) of
Automation connector.
Connect Pin 12 (GND) of the J6 connector of DA20 to Pin 14 (Logic Common) of the DFP-D3000
Automation connector.

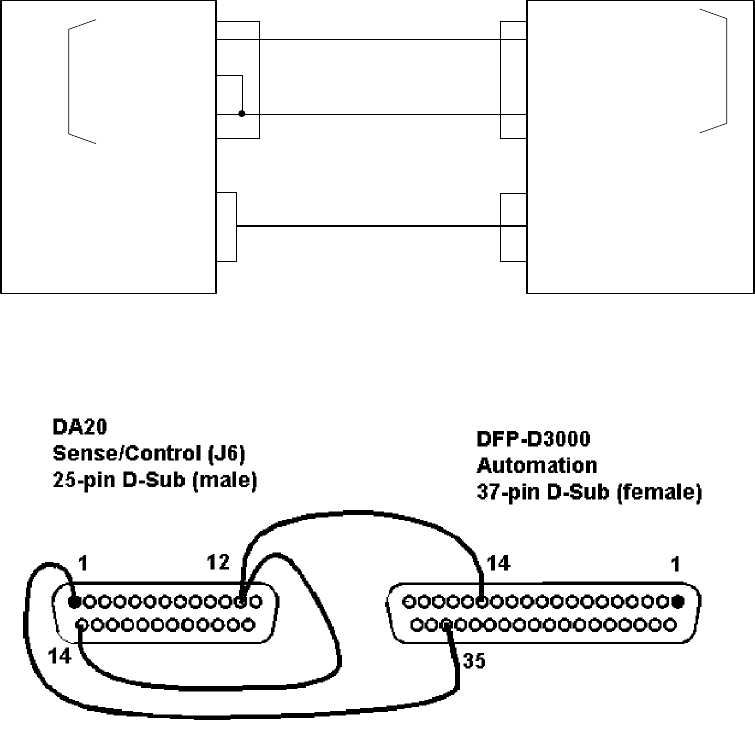

The following shows a specific example of connections. Refer to Section 9.5.6 for details of connections
of the audio system connectors.
1. Overview of System
2. Connections of Control System (Including Pin Assignment)
Pin 1 (Ctri 0)
Pin 14 (Senced)
Pin 12 (GND)
Pin 35 (Lip +.
AUX1 Active)
Pin 14 (Logic Common)
Automation
Input /Output
AUX1 Input
D-sub 25 pin
Connector
D-sub 37 pin
Connector
D-sub 25 pin
Connector
D-sub 25 pin
Connector
Dolby Laboratories, Inc. DA-20 DFP-D3000
CP Audio
Connector (J8)
Sence / Contorl (J6)
