3. Start the DFP-D3000 setup software on the PC. When started, the screen shown in Fig. 1 will be
displayed. Click “Connect to DFP” from the Config menu to start communication with the DFP-
D3000. At this time, the serial number information of the unit will be required. The serial number of
the unit is indicated at the name plate on the right side of the unit. If the setup software has not yet
been started, the serial number can also be viewed on the LCD screen of he DFP-D3000. (For details
on operations, refer to the menu tree in the operation manual.)

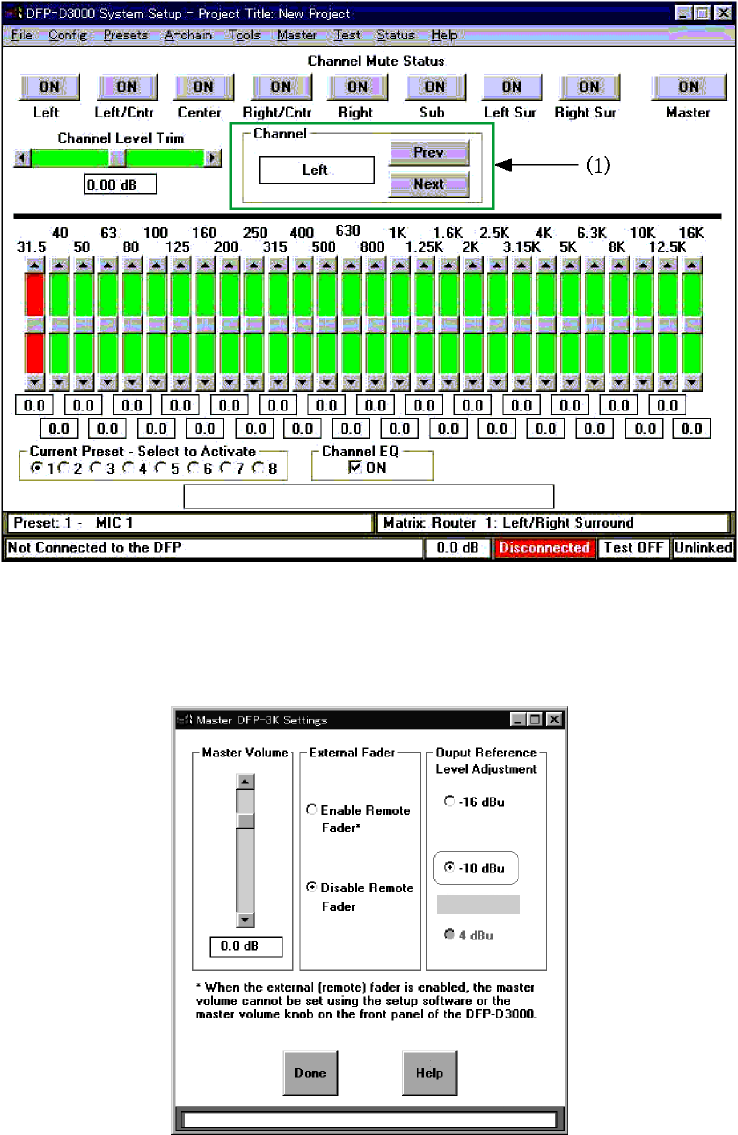

Fig. 1. Initial State of Setup Screen
4. Select “Master DFP-D3000” from the “Master” menu at the screen shown in Fig. 1. The screen
shown in Fig. 2 will be displayed.
Fig.2. DFP-D3000 Output Reference Level Setting Screen
Setting to thisSetting to this
