HCD-MD373
54 54

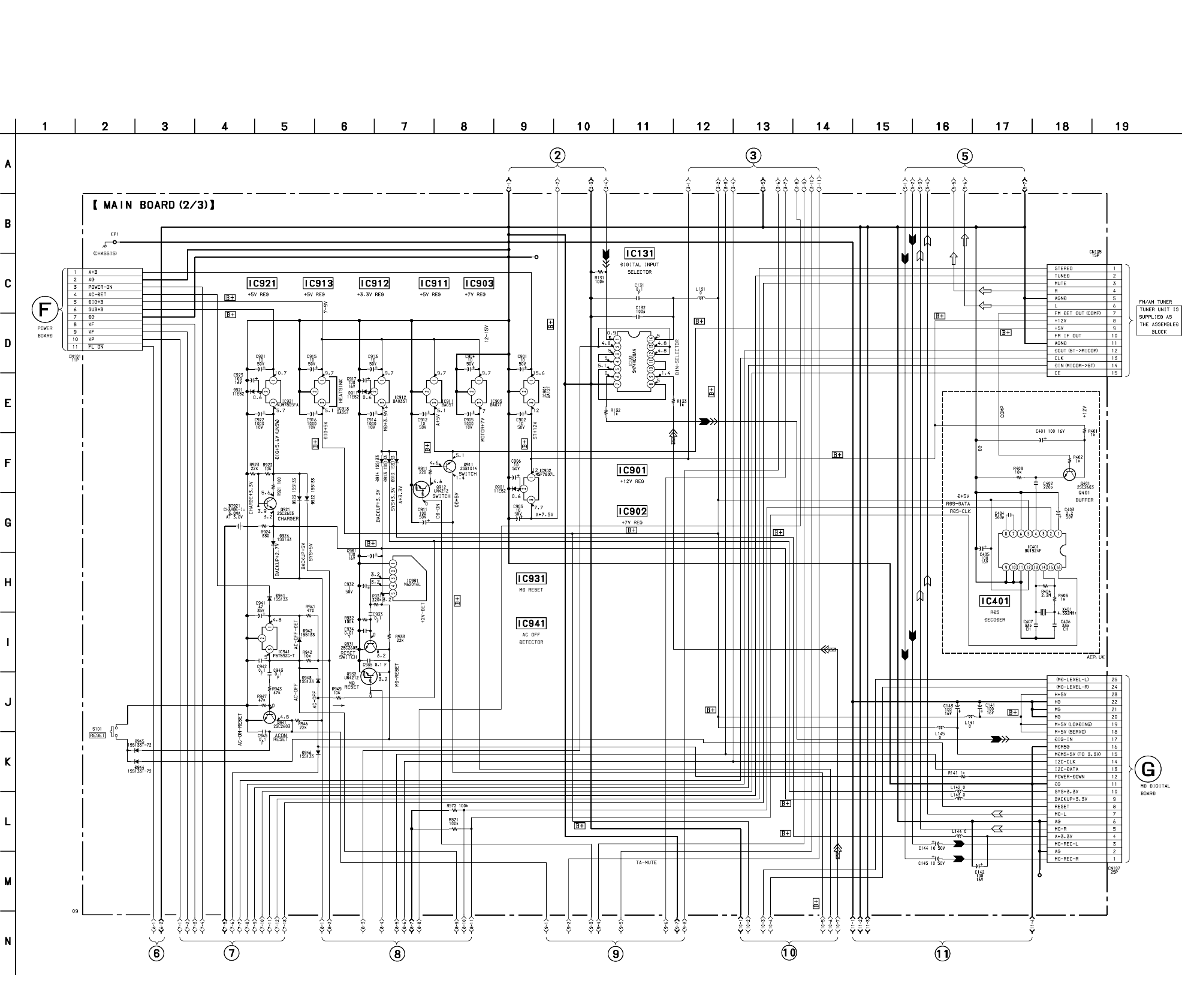

6-12. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) –
• See page 52 for Printed Wiring Board.
• See page 68 for IC Block Diagrams.
(Page 62)
(Page 55) (Page 55) (Page 55) (Page 55) (Page 55) (Page 55)
(Page 56)
(Page 53)
(Page 53)(Page 53)
