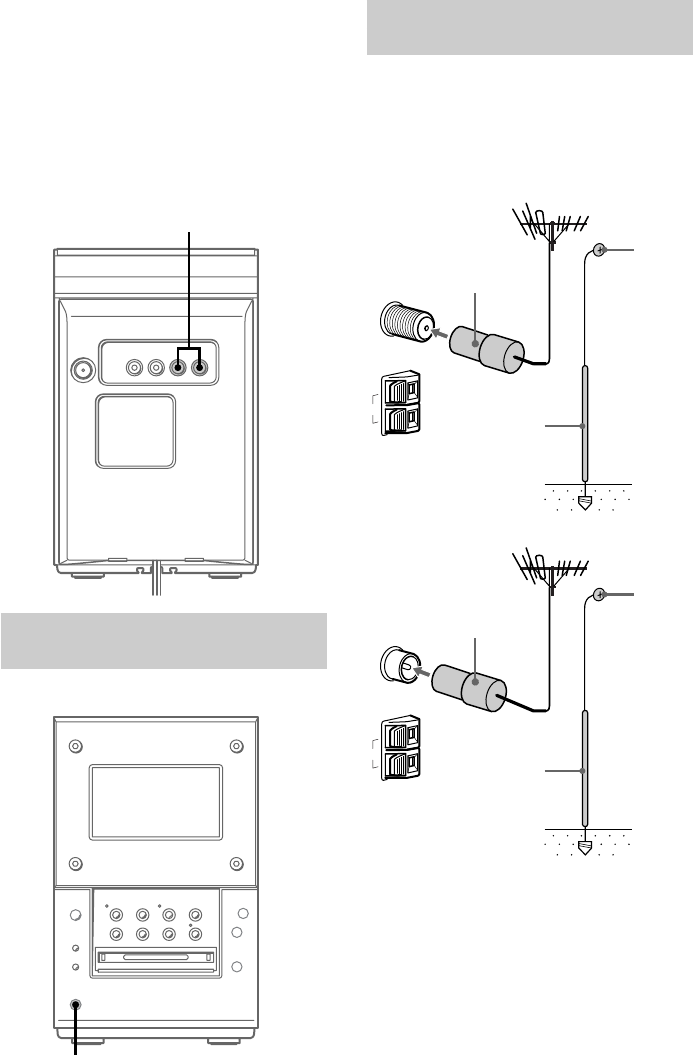

Connecting a VCR
Be sure to match the color of the plugs and
the connectors. To listen to the sound from
the connected VCR, press FUNCTION
repeatedly until “TAPE” appears.
Connecting the
headphones
Connect the headphones to the PHONES jack.
(P
1/u
= 0
–
p
) +
+
(P p
g
+
–
6
PHONES jack
Connecting outdoor
antennas
Connect an outdoor antenna to improve
reception.
FM antenna
Connect an optional FM outdoor antenna or
you can use a TV antenna instead.
Connecting optional A/V
components and outdoor
antennas (continued)
Jack type A
Jack type B
FM
75
Ω
AM
y
y
S
IG
N
A
L G
N
D
C
O
A
X
IA
L
LO
O
P
AN
TEN
N
A
SIGNAL
GND
Ground wire
(not supplied)
IEC standard socket
connector (not supplied)
FM
75Ω
AM
