<ARB7192>
OPERATION
Names of Parts and Basic Operations
9 TAPE2 indicators
Lights when TAPE 2 MONITOR is on.
0 H.P indicator
Lights when headphones are plugged in.
- Tuner indicators
STEREO : Lights when an FM stereo broadcast is
received in the auto stereo mode.
TUNED : Lights when a broadcast is received.
MONO : Lights when the tuner is set to receive FM
broadcasts in monaural.
= Speaker indicators
Light to indicate the current speaker system (refer to
“Front Panel”, 7, SPEAKERS (A/B) on pages 23, 24).
SP 3 A : Lights when speaker system A is selected.
SP 3 B : Lights when speaker system B is selected.
~ Program format indicators
The following indicators light to show the channels
being played back.
L : Left front*
1
*
2
, C : Center*
1
, R : Right front*
1
*
2
,
LS : Left surround*
1
,S : Surround (mono)*
2
,
RS : Right surround*
1
*1: Indicates 5.1ch Dolby Digital playback.
*2: Indicates Dolby Pro Logic playback.
! LFE indicator
LFE (Low Frequency Effects) indicator lights to
indicate that the program source contains an LFE
channel. The indicator to the left of LFE lights during
actual playback of the LFE signals (LFE signals are not
present in all parts of the sound track).
@ Character display
# Volume level display
Displays the volume level. Volume level is maintained
even when the power is off. ---dB indicates the
minimum level, and 0dB indicates the maximum
level.
• Depending on the level settings for individual
channels, the MAX level can range between –10dB
and 0dB.
1 SIGNAL SELECT indicators
Light to indicate the type of input signal selected for
the current component (refer to “Front Panel”, !,
SIGNAL SELECT on pages 23, 24).
ANALOG : Lights when the analog audio signals are
selected.
DIGITAL : Lights when the digital audio signals are
selected.
AC-3 : Lights when a source with Dolby Digital signals
is played.
2 Digital indicators
PRO LOGIC :
When the Dolby mode on the reciever
is on,
this indicator lights during 2 channel playback
of Dolby Digital sources.
DIGITAL :
When the Dolby mode on the reciever is
on, this indicator lights to indicate playback of a Dolby
Digital signal. However, PRO LOGIC lights during 2
channel playback of Dolby Digital.
3 SFC (DSP) mode indicator
Lights when the DSP mode is selected.
(Refer to “Surround modes” on page 25)
4 ATT indicator
Lights when ATT (refer to “Remote Control”, 9,
Number buttons page 22) is used to reduce the level
of the input signal. (available in ANALOG mode only)
5 Overload indicator
When “ANALOG” is selected in SIGNAL SELECT, this
indicator lights when an excessively strong signal is
being processed . When this indicator lights, press
ATT on the remote control to attenuate (lower) the
signal and prevent distortion.
6 MIDNIGHT indicator
Lights when the MIDNIGHT mode is on.
7 LOUDNESS indicator
Lights when loudness is on (refer to “Front Panel”, -
,LOUDNESS on pages 23, 24).
8 DIRECT indicator
Lights when direct playback is on (refer to “Front
Panel”, (, DIRECT on pages 23, 24).

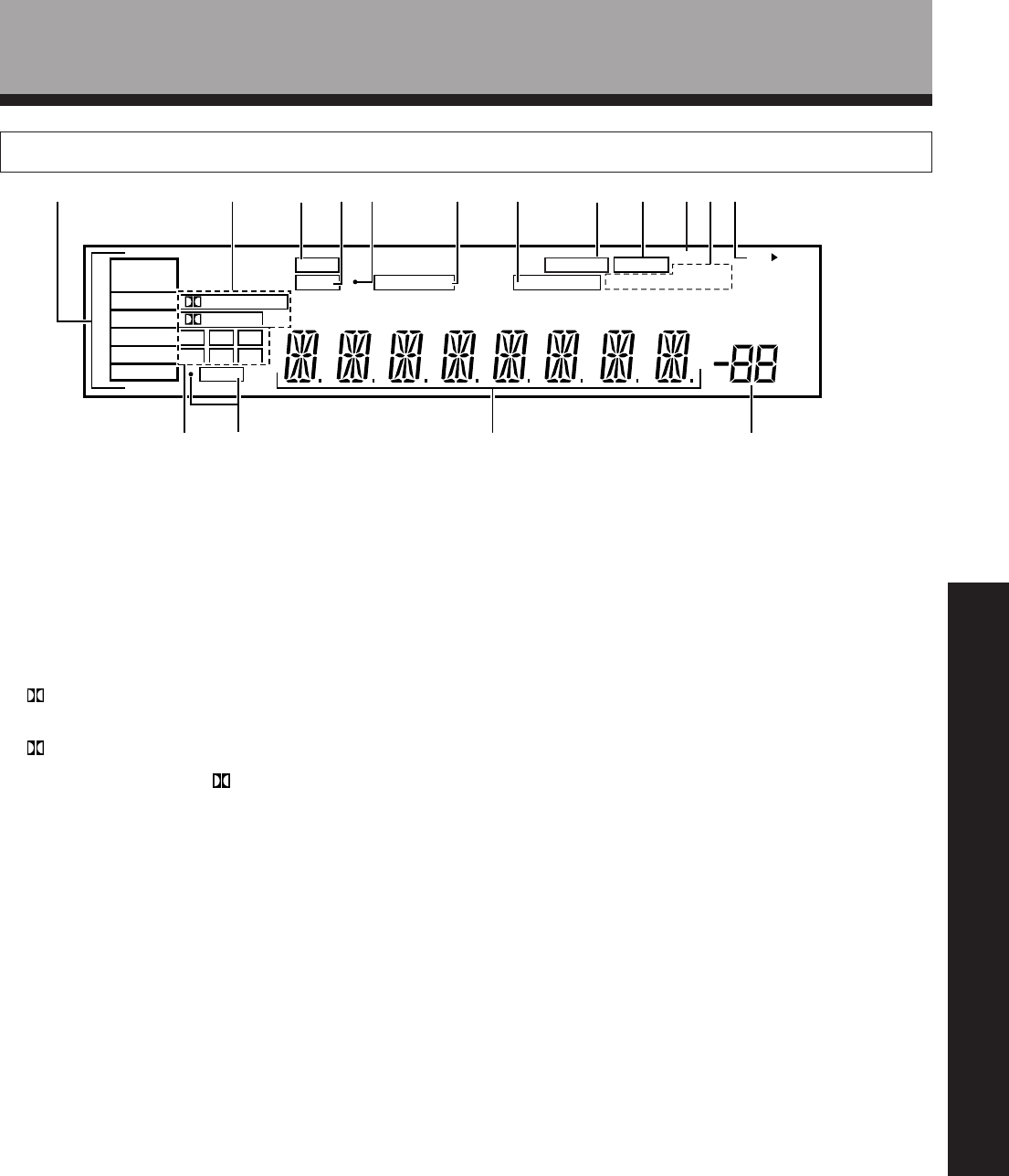

Display
dB
SP
SIGNAL
SELECT
ANALOG
DIGITAL
AC-3
PRO LOGIC
AB
DIGITAL
LCR
RSSLS
LFE
SFC
ATT MIDNIGHT LOUDNESS STEREO
H.P
MONO
TUNED
TAPE2
DIRECT
123456
890 =
~
!
@#
7
-
