About Relations between Speaker Layout and Surround Modes
Available Surround modes will vary depending on how many speakers are used with this receiver.
Make sure that you have set the speaker information correctly (see pages 12 to 14).
• If only front speakers are connected, you cannot use any Surround modes.
• If rear speakers are not connected, you cannot use the DAP modes and All Channel Stereo.

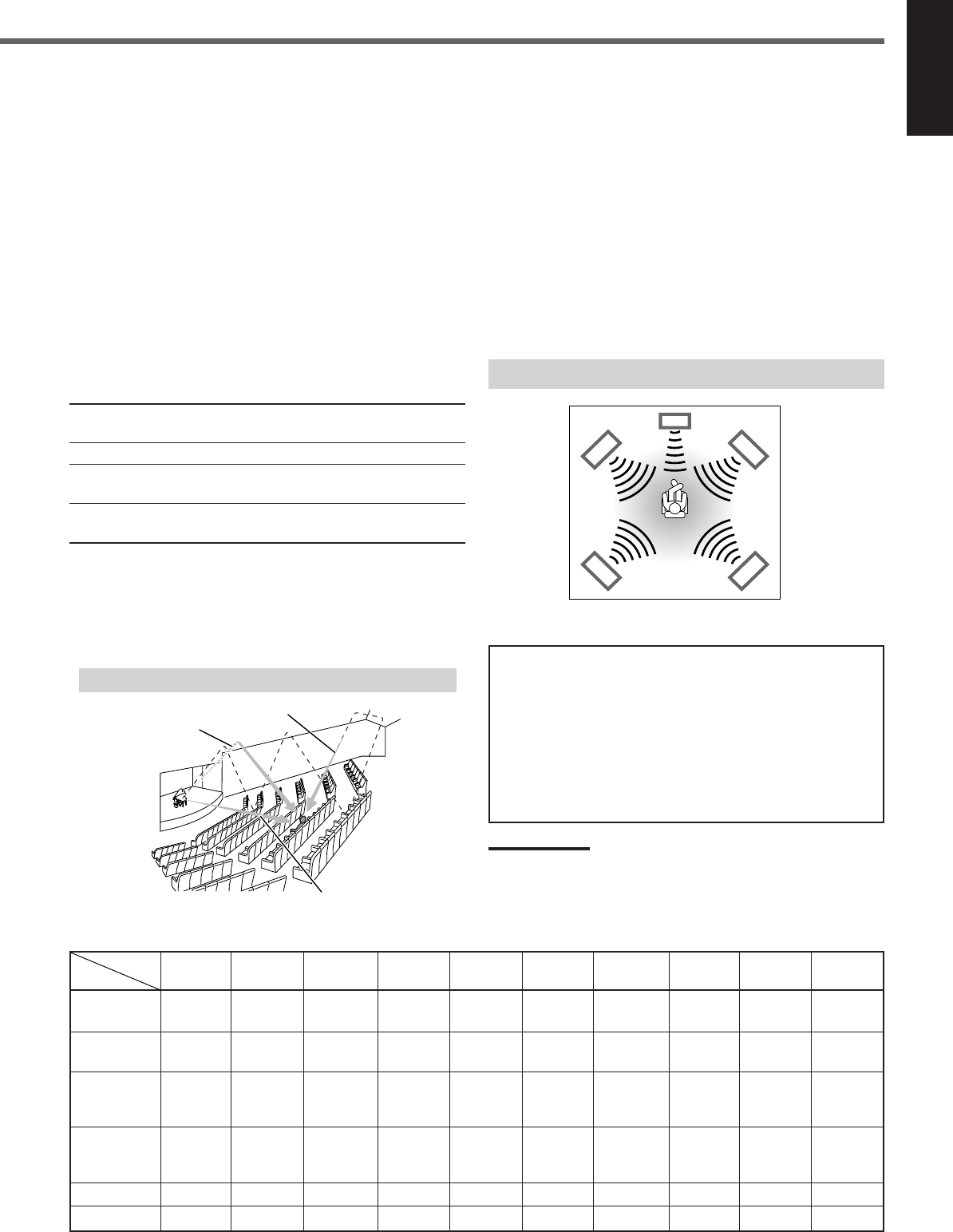

Creating Realistic Sound Fields
Speaker Layout
Available Surround modes
When the center and rear speakers
are connected (5 channels):
Ex.: “PL II MUSIC” has been selected.
Turning on or off Surround modes
Each time you press SURROUND ON/OFF, Surround modes turn on or off.
L
S.WFR
SPK
PRO LOGIC ΙΙ DSP H.PHONE
AUTO MUTING
TUNED
STEREO
INPUT ATT
DIGITAL AUTO
LINEAR PCM
R
SURROUND OFF
Last selected
Surround mode
L
S.WFR
SPK
PRO LOGIC ΙΙ DSP H.PHONE
AUTO MUTING
TUNED
STEREO
INPUT ATT
DIGITAL AUTO
LINEAR PCM
R
PL II MOVIE
LIVE CLUB
DANCE CLUB
ALL CH STEREO
PAVILION
HALL
(Back to the beginning)
PL II MUSIC
Selecting Surround modes
Each time you press SURROUND MODE, Surround modes change as follows:
SURROUND
MODE
SURROUND MODE
(Front panel)
(Remote)
Turning on or off Surround modes
Each time you press SURROUND ON/OFF, Surround modes turn on or off.
Ex.: “PL II MUSIC” has been selected.
L
S.WFR
SPK
PRO LOGIC ΙΙ DSP H.PHONE
AUTO MUTING
TUNED
STEREO
INPUT ATT
DIGITAL AUTO
LINEAR PCM
R
SURROUND OFF
PL II MOVIE
or
PL II MUSIC
Front
speaker
When the center speaker is connected
(3 channels):
TV
Rear
speaker
Front
speaker
Rear
speaker
When the rear speakers are connected
(4 channels):
TV
Center speaker
Front
speaker
Front
speaker
Rear
speaker
Rear
speaker
Front
speaker
Center speaker
Front
speaker
TV
Selecting Surround modes
Each time you press SURROUND MODE, Surround modes change as follows:
Notes:
When the digital multichannel software such as Dolby Digital or DTS Digital
Surround is played back, the appropriate multichannel Surround mode is
automatically activated (“DOLBY DIGITAL” or “DTS SURROUND”) by pressing
SURROUND ON/OFF (with the digital input mode selected).
• For Dolby Digital 2 ch software, you need to select “PLII MUSIC” or “PLII MOVIE”
by pressing SURROUND MODE.
• For more details, see the table on page 19.
L
S.WFR
SPK
PRO LOGIC ΙΙ DSP H.PHONE
AUTO MUTING
TUNED
STEREO
INPUT ATT
DIGITAL AUTO
LINEAR PCM
R
PL II MOVIE
PL II MUSIC
Notes:
When the digital multichannel software such as Dolby Digital or DTS Digital
Surround is played back, the appropriate multichannel Surround mode is
automatically activated (“DOLBY DIGITAL” or “DTS SURROUND”) by pressing
SURROUND ON/OFF (with the digital input mode selected).
• For Dolby Digital 2 ch software, you need to select “PLII MUSIC” or “PLII MOVIE”
by pressing SURROUND MODE.
• For more details, see the table on page 19.
SURROUND MODE
(Remote)
(Front panel)
(Front panel)(Remote)
SURROUND
ON/OFF
(Remote)
SURROUND ON/OFF
(Front panel)
SURROUND
ON/OFF
SURROUND ON/OFF
SURROUND
MODE
