– 7 –
English
ANTENNA
FM 75Ω
COAXIAL

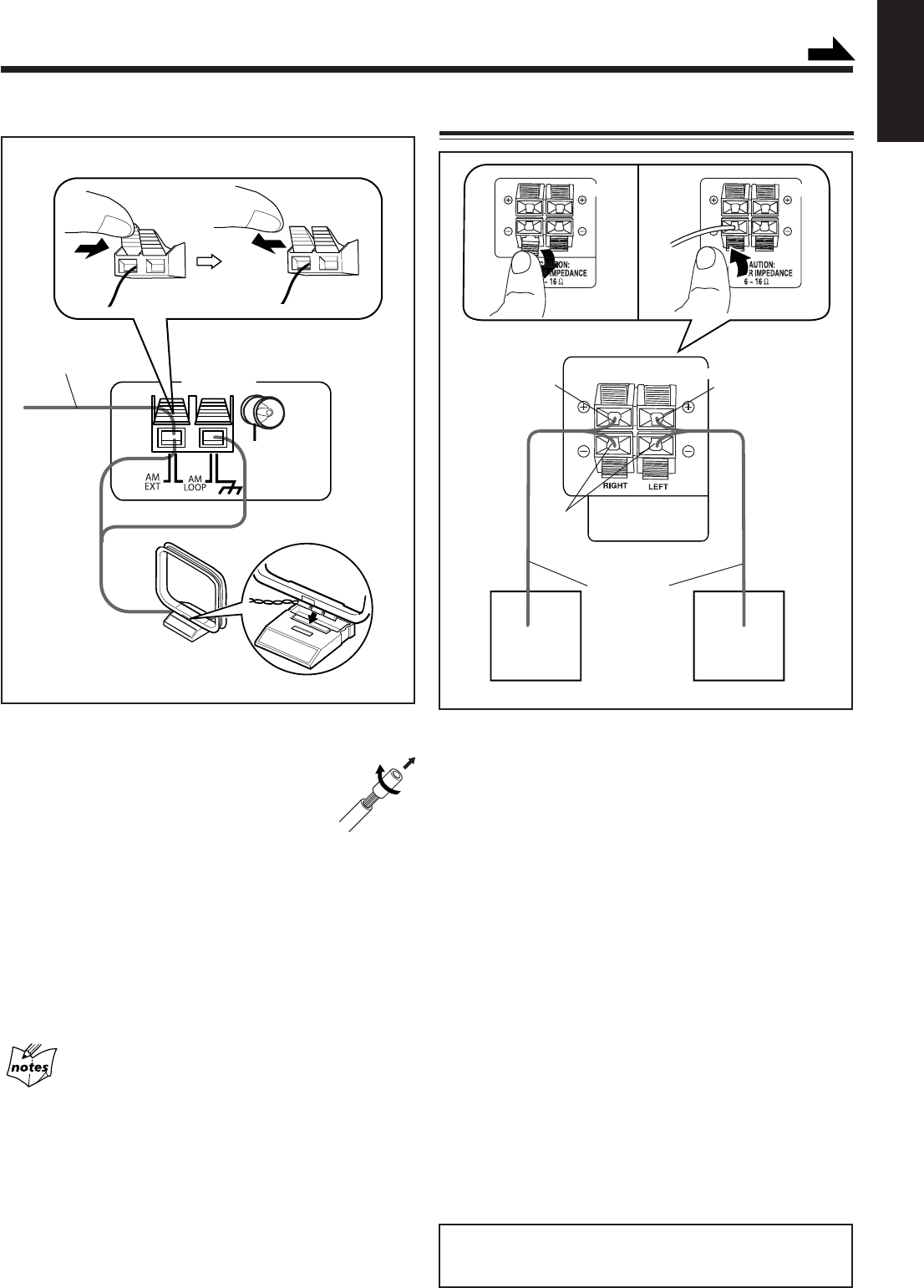

1 Connect the AM loop antenna to the AM
LOOP terminals as illustrated.
• If the AM loop antenna wire is covered
with vinyl, remove the vinyl by twisting
it as shown in the diagram.
2 Turn the AM loop antenna until you have the
best reception.
To connect an outdoor AM antenna
When reception is poor, connect a single vinyl-covered wire
to the AM EXT terminal and extend it horizontally. The AM
loop antenna must remain connected.
For better reception of both FM and AM
• Make sure the antenna conductors do not touch any other
terminals and connecting cords.
• Keep the antennas away from metallic parts of the unit,
connecting cords, and the AC power cord.
AM antenna
Vinyl-covered wire
(not supplied)
AM loop antenna
(supplied)
1
2
Connecting Speakers
Continued
1 Press and hold the clamp of the speaker
terminals on the rear of the unit.
2 Insert the end of the speaker cord into the
terminal.
Match the polarity (colours) of the speaker terminals: Red
(+) to red (+) and black (–) to black (–).
3 Release your finger from the clamp to close
the speaker terminals.
Speaker Setting For A/V Combination
SP-MXSK3 and SP-MXSK1 have a magnetically-shielded design
for placement adjacent to TV’s and monitors without causing color
aberrations. However, color may be affected by the way of installing
the speaker system. Therefore, please take note of the following:
1. When placing these speakers near a TV set, turn off TV’s main
power switch or unplug it before installing the speakers.
Wait at least 30 minutes after the system is installed before
turning on the TV’s power.
2. If another speaker system has been set up near the TV set, that
system may cause color unevenness in the TV’s picture.
3. In spite of the shielded design of these speakers, some of the
TV types may be affected by them. If this happens, move the
speakers to a short distance away from the TV set.
IMPORTANT: Use only speakers with the same speaker
impedance as indicated by the speaker terminals on the
rear of the unit.
CAUTION:
SPEAKER IMPEDANCE
6 ~ 16 Ω
SPEAKERS
SPEAKERS SPEAKERS
1
3
Red
Speaker cords
(red/black)
Right speaker
Left speaker
2
Red
Black
