Filter
Top Products
64
Description
Drive units
System frequency range
System frequency
response
Amplifier
Low-Pass Filter
High-Pass Filter
Dimensions
Net Weight

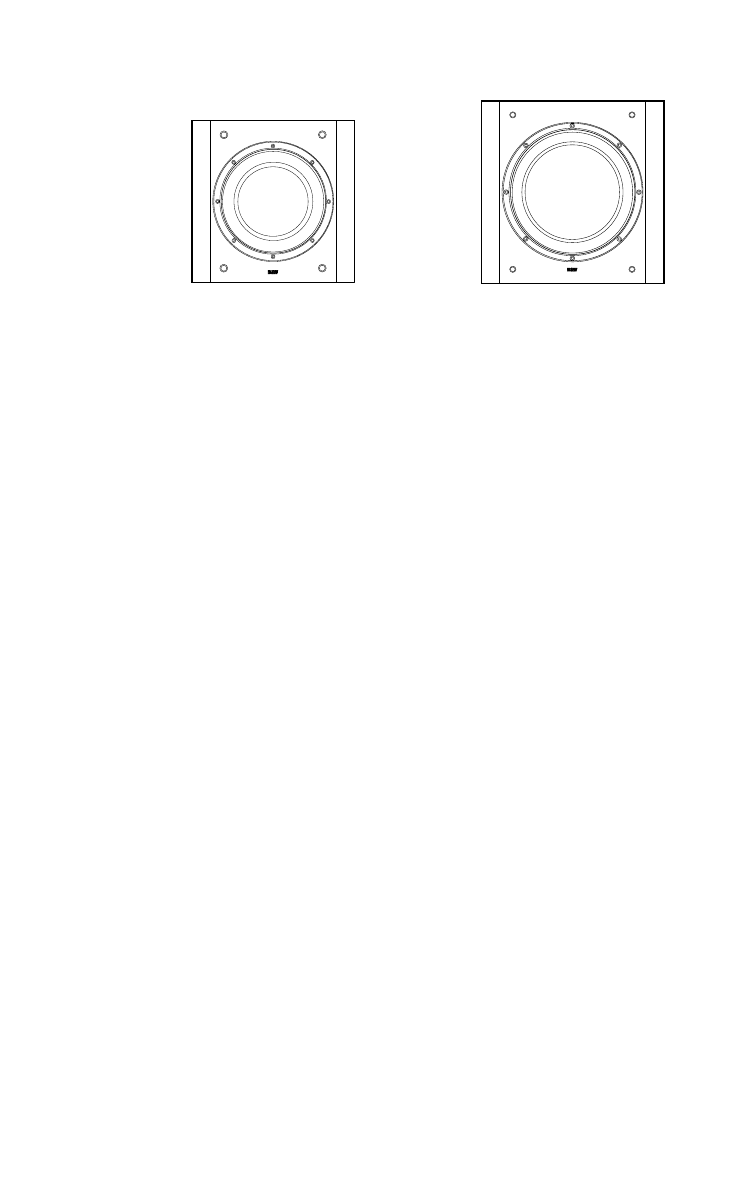

ASW600
Active closed-box subwoofer system
250mm (10 in) paper/Kevlar® cone
-6dB at 22Hz and 180Hz adjustable (EQ at A)
-3dB 26Hz – 150Hz adjustable (EQ at A)
Power output: 150W continuous
Input impedance: 22kW
Signal / noise: >90dB
Functions: Output level
Low-pass filter frequency
Low-pass filter bypass
Bass roll-off alignment
Auto sense on/standby
Inputs: Line In
Speaker level (binding posts)
Outputs: Line Out (high-passed)
Link Out (parallel to Line In) Speaker
level out (high-passed)
Active 2nd-order, variable cut-off frequency
Line level: Active 3rd-order at 80Hz
Speaker level: Passive 1st-order at 80Hz (8Ω load)
Height: 365mm (14.4 in)
not including spike feet
Width: 365mm (14.4 in)
Depth: 450mm (17.7 in)
including grille and controls
19.5kg (43 lb)
ASW650
Active closed-box subwoofer system
300mm (12 in) paper/Kevlar® cone
-6dB at 20Hz and 180Hz adjustable (EQ at A)
-3dB 25Hz – 150Hz adjustable (EQ at A)
Power output: 200W continuous
Input impedance: 22kW
Signal / noise: >90dB
Functions: Output level
Low-pass filter frequency
Low-pass filter bypass
Bass roll-off alignment
Auto sense on/standby
Inputs: Line In
Speaker level (binding posts)
Outputs: Line Out (high-passed)
Link Out (parallel to Line In)
Speaker level out (high-passed)
Active 2nd-order, variable cut-off frequency
Line level: Active 3rd-order at 80Hz
Speaker level: Passive 1st-order at 80Hz (8Ω load)
Height: 415mm (16.4 in)
not including spike feet
Width: 415mm (16.4 in)
Depth: 495mm (19.5 in)
including grille and controls
25.5kg (56 lb)
