4-37 4059 Service Manual
4059-XXX
Integrated Tray Compensator Assembly
1. Remove the paper tray.
2. Remove the left door.
3. Remove the inner EMC shield.
4. Disconnect the compensator motor cable from the engine board
at connector J18.
5. Place the printer on its side.

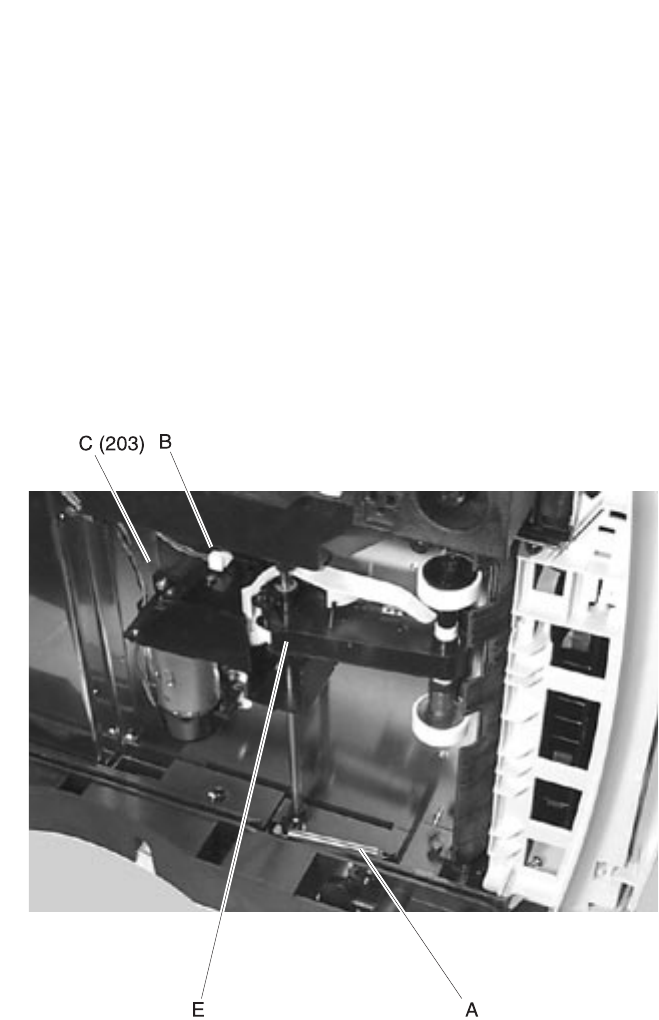

6. Locate the integrated tray compensator assembly (E) on the
bottom of the printer and disconnect the compensator arm bias
spring (A) from the frame.
7. Disconnect the compensator sensor cable (B) from the
assembly.
8. Remove the compensator assembly mounting screw (C).
9. Remove the integrated tray compensator assembly.
