4-29 4059 Service Manual
4059-XXX
Fuser Detack Fingers
1. Remove the fuser assembly.
2. Remove the fuser cover assembly.
3. Remove the fuser detack housing assembly.

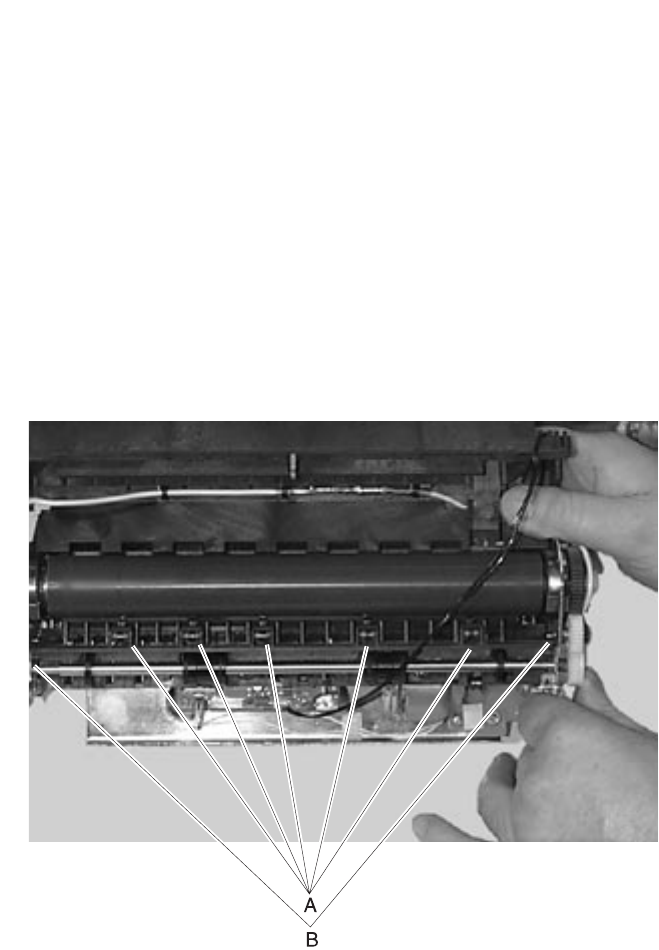

4. Gently pry the detack finger and spring (A) from the housing
assembly.
Fuser Detack Housing Assembly
1. Remove the fuser assembly.
2. Remove the fuser cover assembly.
3. Remove the fuser lamp.
4. Gently apply outward pressure on the left and right fuser side
frames (B) to release the detack housing assembly.
